Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1265CC-330MIND SMD 33UH 8A |
771 |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 33 µH | ±20% | 8 A | 9A | Shielded | 56mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
744750230030FIXED IND 3UH 7.6A 8.5 MOHM TH |
379 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±20% | 7.6 A | 11.7A | Shielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 8010 | 0.346" Dia (8.80mm) | 0.433" (11.00mm) |
|
|
744750230150FIXED IND 15UH 3.7A 35 MOHM TH |
329 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.7 A | 5.7A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 8010 | 0.346" Dia (8.80mm) | 0.433" (11.00mm) |
|
7447231101FIXED IND 100UH 2.6A 90 MOHM TH |
323 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 100 µH | ±10% | 2.6 A | 3.1A | Unshielded | 90mOhm Max | - | 3.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.430" Dia (10.92mm) | 0.748" (19.00mm) |
|
|
744750230100FIXED IND 10UH 4.6A 23 MOHM TH |
320 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.6 A | 6.8A | Shielded | 23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 8010 | 0.346" Dia (8.80mm) | 0.433" (11.00mm) |
|
|
SRP1265CC-220MIND SMD 22UH 10A |
196 |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 22 µH | ±20% | 10 A | 12A | Shielded | 37mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
744750230047FIXED IND 4.7UH 6.5A 12.5MOHM TH |
133 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6.5 A | 9.6A | Shielded | 12.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 8010 | 0.346" Dia (8.80mm) | 0.433" (11.00mm) |
|
SRP6050CA-3R3MFIXED IND 3.3UH 11A 12.5MOHM SMD |
958 |
|
Datasheet |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 11 A | 12.5A | Shielded | 12.5mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
SRP6050CA-4R7MFIXED IND 4.7UH 8.5A 18.4MOHM SM |
694 |
|
Datasheet |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 8.5 A | 10.5A | Shielded | 18.4mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
S1210-222KFIXED IND 2.2UH 470MA 730MOHM SM |
1,000 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 470 mA | - | Shielded | 730mOhm Max | 40 @ 7.9MHz | 80MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
CDRH127NP-4R7NCFIXED IND 4.7UH 6.8A 15.8MOHM SM |
3,816 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | -20%, +40% | 6.8 A | - | Shielded | 15.8mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-151MCFIXED IND 150UH 1.42A 280MOHM SM |
2,739 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.42 A | - | Shielded | 280mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-270MCFIXED IND 27UH 3.4A 45.9MOHM SMD |
2,319 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 3.4 A | - | Shielded | 45.9mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
SPM6550T-4R7M-HZFIXED IND 4.7UH 8.2A 24.53 MOHM |
1,122 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 8.2 A | 4.3A | Shielded | 24.53mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|

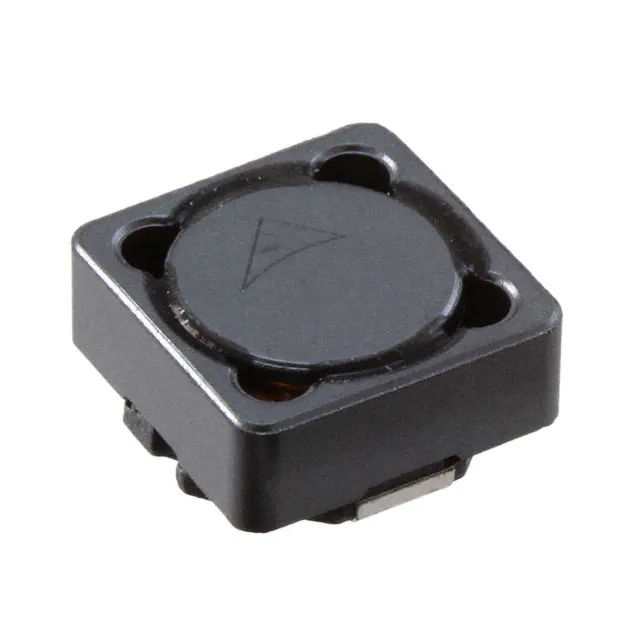

B82464P4223M000FIXED IND 22UH 2.25A 52 MOHM SMD |
344 |
|
Datasheet |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.25 A | 2.5A | Shielded | 52mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
744711010FIXED IND 10UH 10A 8.8 MOHM TH |
1,607 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±25% | 10 A | - | Unshielded | 8.8mOhm | - | 43MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.339" Dia x 1.217" L (8.60mm x 30.90mm) | - |
|
|
B82464P4473M000FIXED IND 47UH 1.55A 95 MOHM SMD |
6,887 |
|
Datasheet |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.55 A | 1.8A | Shielded | 95mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
PA5001.561NLTFIXED IND 560NH 12A 9.3MOHM SMD |
3,868 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 560 nH | ±20% | 12 A | 14A | Shielded | 9.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PA5001.182NLTFIXED IND 1.8UH 7A 28 MOHM SMD |
3,200 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 µH | ±20% | 7 A | 7.5A | Shielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PA5001.152NLTFIXED IND 1.5UH 7.6A 23.5MOHM SM |
1,625 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 µH | ±20% | 7.6 A | 8A | Shielded | 23.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
