Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

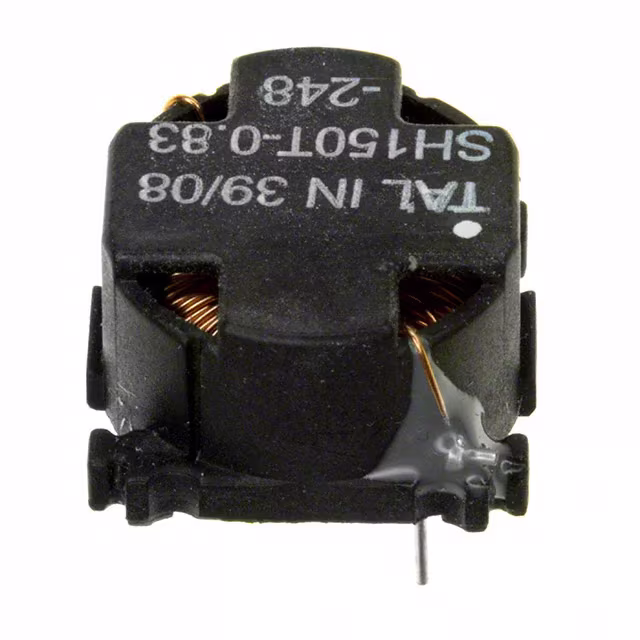

SH150T-0.83-248FIXED IND 248UH 830MA 600MOHM TH |
50 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 248 µH | ±20% | 830 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|

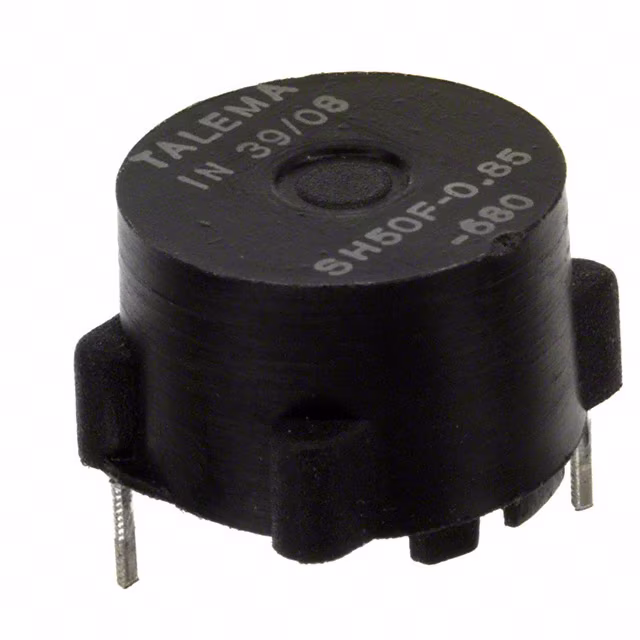

SH50F-0.85-680FIXED IND 680UH 850MA 1.25OHM TH |
100 |
|
Datasheet |
SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | 680 µH | ±20% | 850 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
CTX10-7-52-RFIXED IND 10UH 11.4A 8 MOHM TH |
31 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 11.4 A | 13.5A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.012" Dia x 0.709" W (25.70mm x 18.00mm) | - |
|

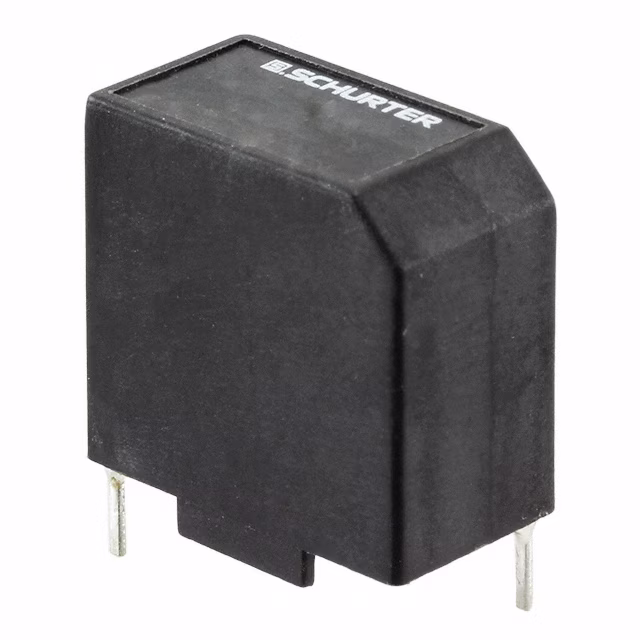

DSH-22-0002FIXED IND 630MA 750 MOHM TH |
40 |
|
Datasheet |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 630 mA | - | - | 750mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - |
|

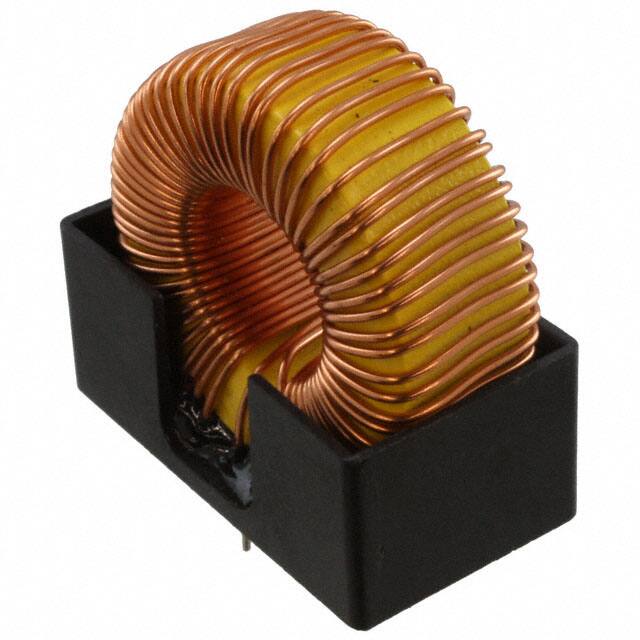

SH50C-3.0-330FIXED IND 330UH 3A 150 MOHM TH |
80 |
|
Datasheet |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 330 µH | ±20% | 3 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
CTX500-1-52LP-RFIXED IND 500UH 1.7A 361 MOHM TH |
57 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 1.7 A | 1.9A | Unshielded | 361mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.945" Dia (24.00mm) | 0.602" (15.30mm) |
|
IHD1EB270LFIXED IND 27UH 1.9A 70 MOHM TH |
50 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±15% | 1.9 A | 1.4A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | - |
|
B82559A3152A020FIXED IND 1.5UH 0.9 MOHM SMD |
31 |
|
Datasheet |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | - | 50A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.437" (11.10mm) |
|
CTX150-2-52LP-RFIXED IND 150UH 4.3A 71.9MOHM TH |
95 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 4.3 A | 4A | Unshielded | 71.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.205" Dia (30.60mm) | 0.441" (11.20mm) |
|
74434301213100FIXED IND 10UH 6A 20 MOHM SMD |
98 |
|
Datasheet |
WE-LHMD | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±15% | 6 A | 21A | Shielded | 20mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.543" W (13.80mm x 13.80mm) | 0.406" (10.30mm) |
|
7444011480100FIXED IND 10UH 8.5A 9 MOHM TH |
53 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 10 µH | ±20% | 8.5 A | 13.5A | Unshielded | 9mOhm | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.551" L x 0.315" W (14.00mm x 8.00mm) | 0.630" (16.00mm) |
|
|
7444011715100FIXED IND 10UH 10A 7 MOHM TH |
30 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 10 µH | ±20% | 10 A | 28A | Unshielded | 7mOhm | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.768" (19.50mm) |
|
|
7444211415082FIXED IND 8.2UH 6.7A 9.2MOHM TH |
26 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 8.2 µH | ±20% | 6.7 A | 16A | Unshielded | 9.2mOhm | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.083" (2.10mm) |
|
1538M12FIXED IND 68UH 7.3A 34 MOHM TH |
43 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±10% | 7.3 A | - | Unshielded | 34mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.120" L (22.35mm x 28.45mm) | - |
|
|
1538M10FIXED IND 27UH 9A 22 MOHM TH |
30 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 27 µH | ±10% | 9 A | - | Unshielded | 22mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.880" Dia x 0.880" L (22.35mm x 22.35mm) | - |
|

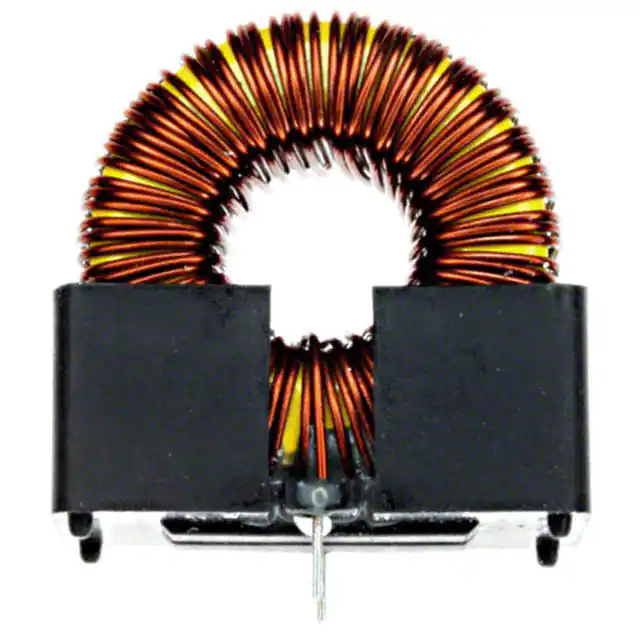

SH50C-0.95-1000FIXED IND 1MH 950MA 240 MOHM TH |
26 |
|
Datasheet |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1 mH | ±20% | 950 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
1540M03FIXED IND 125UH 2.75A 120MOHM TH |
27 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 125 µH | ±15% | 2.75 A | - | Unshielded | 120mOhm Max | - | - | - | - | - | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
DFSG-30-0001FIXED IND 3A 165 MOHM TH |
80 |
|
Datasheet |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 3 A | - | - | 165mOhm | - | - | - | -25°C ~ 100°C | - | - | Through Hole | - | 1.181" L x 1.181" W (30.00mm x 30.00mm) | - |
|
|
1538M04FIXED IND 50UH 5.6A 40 MOHM TH |
32 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 5.6 A | - | Unshielded | 40mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.810" Dia x 0.880" L (20.57mm x 22.35mm) | - |
|
HCM1A2213V2-101-RFIXED IND 100UH 6.4A 39.5MOHM SM |
25 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 µH | ±20% | 6.4 A | 8A | Shielded | 39.5mOhm Max | - | 1.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
