Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

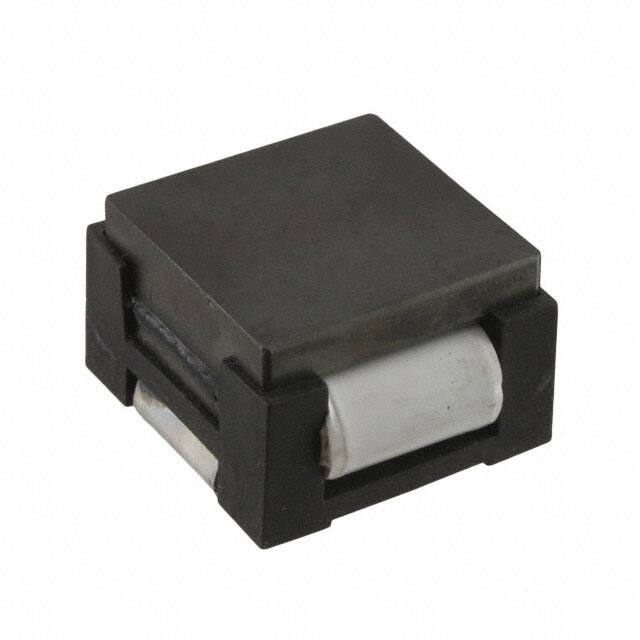

HC3-5R6-RFIXED IND 5.6UH 33.8A 2.17 MOHM |
48 |
|
Datasheet |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 33.8 A | 34.5A | Unshielded | 2.17mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
MPX1D2213L470FIXED IND 47UH 15.5A 20.5MOHM SM |
50 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 15.5 A | 19A | Shielded | 20.5mOhm Max | - | 2.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L6R8FIXED IND 6.8UH 39A 3.3 MOHM SMD |
38 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 39 A | 42A | Shielded | 3.3mOhm Max | - | 6.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213LR68FIXED IND 680NH 78A 0.828MOHM SM |
29 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 78 A | 115A | Shielded | 0.828mOhm Max | - | 34MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L4R7FIXED IND 4.7UH 48A 2.2 MOHM SMD |
27 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 48 A | 40A | Shielded | 2.2mOhm Max | - | 9MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L2R2FIXED IND 2.2UH 59A 1.4 MOHM SMD |
10 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 59 A | 56A | Shielded | 1.4mOhm Max | - | 14MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
MPXV1D2213L3R3FIXED IND 3.3UH 54A 1.8 MOHM SMD |
12 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 54 A | 48A | Shielded | 1.8mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
85091-F0FIXED IND 7UH 500 MOHM SMD |
85 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 7 µH | ±25% | - | 225mA | Shielded | 500mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - |
|
|
85093-F0FIXED IND 900NH 400 MOHM SMD |
95 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 900 nH | ±25% | - | 275mA | Shielded | 400mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - |
|
IHTH1500TZEB470M5AIHTH-1500TZ-5A 47 20% EB E2 |
20 |
|
Datasheet |
IHTH-1500TZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 47 µH | ±20% | 20.5 A | 45.3A | Shielded | 9.3mOhm Max | - | 1.9MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.780" (19.82mm) |
|
|
85085-F0FIXED IND 21UH 1.14 OHM SMD |
87 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 21 µH | ±25% | - | 550mA | Shielded | 1.14Ohm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.200" L x 0.200" W (5.08mm x 5.08mm) | - |
|
|
85084-F0FIXED IND 4.9UH 900MA 230MOHM SM |
84 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 4.9 µH | ±25% | 900 mA | 1A | Shielded | 230mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.200" L x 0.200" W (5.08mm x 5.08mm) | - |
|
85085-A0FIXED IND 21UH 1.14 OHM SMD |
97 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 21 µH | ±25% | - | 550mA | Shielded | 1.14Ohm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.200" L x 0.200" W (5.08mm x 5.08mm) | - |
|
|
85072-F0FIXED IND 15UH 700 MOHM SMD |
94 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 15 µH | ±25% | - | 250mA | Shielded | 700mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.200" L x 0.200" W (5.08mm x 5.08mm) | - |
|
506WLSN2R00KT494TFIXED IND 2UH 494MA 650 MOHM SMD |
91 |
|
Datasheet |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2 µH | ±10% | 494 mA | - | Unshielded | 650mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
IHXL1500VZEB2R2M5AFIXED IND 2.2UH 168A 0.34MOHM TH |
67 |
|
Datasheet |
IHXL-1500VZ-5A | Nonstandard | Bulk | Active | - | - | 2.2 µH | ±20% | 168 A | - | Shielded | 0.34mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|
|
85090-F0FIXED IND 20UH 500 MOHM SMD |
50 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 20 µH | ±20% | - | 800mA | Shielded | 500mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.270" L x 0.270" W (6.86mm x 6.86mm) | - |
|

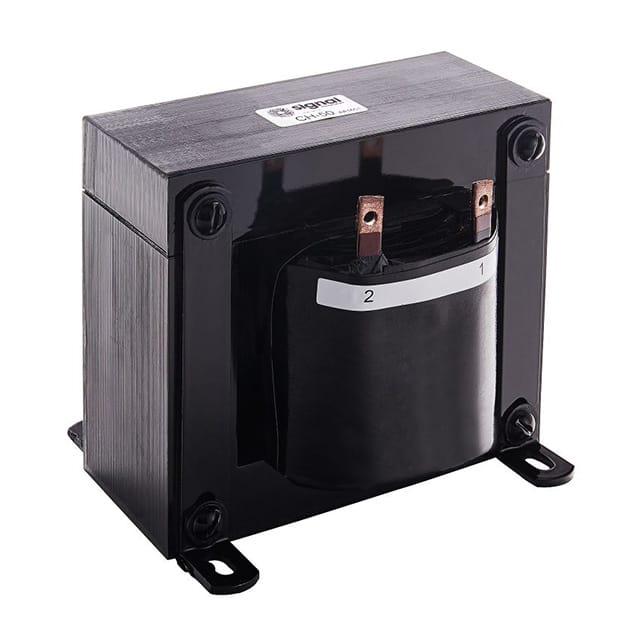

CH-50FIXED IND 1.4MH 50A 10 MOHM CHAS |
8 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 1.4 mH | - | 50 A | - | Unshielded | 10mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.374" L x 5.252" W (161.90mm x 133.40mm) | 5.374" (136.50mm) |
|
CH-30FIXED IND 4MH 30A 10 MOHM CHASS |
2 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 4 mH | - | 30 A | - | Unshielded | 10mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.374" L x 5.000" W (161.90mm x 127.00mm) | 5.374" (136.50mm) |
|
NLCV32T-3R3M-EFRDFIXED IND 3.3UH 1A 192 MOHM SMD |
850 |
|
Datasheet |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1 A | - | Unshielded | 192mOhm Max | 15 @ 7.96MHz | 54MHz | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
