Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRAP125-100-RFIXED IND 10UH 5.57A 21 MOHM SMD |
600 |
|
Datasheet |
DRAP125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 5.57 A | 7.22A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.240" (6.10mm) |
|
PE-53663NLTFIXED IND 9.3UH 7.2A 18.7MOHM SM |
1,054 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 9.3 µH | - | 7.2 A | - | Unshielded | 18.7mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
744373770056FIXED IND 560NH 18.5A 0.0017OHM |
58 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±20% | 18.5 A | 42.8A | Shielded | 1.7mOhm Max | - | 59MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
744373770022FIXED IND 220NH 25A 0.0009OHM SM |
51 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±20% | 25 A | 57.4A | Shielded | 0.9mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
IHA303EBFIXED IND 27UH 4.8A 40 MOHM TH |
41 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 4.8 A | - | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.550" Dia x 0.800" L (13.97mm x 20.32mm) | - |
|
744116FIXED IND 345UH 2.1A 200 MOHM TH |
66 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 345 µH | ±20% | 2.1 A | 500mA | Unshielded | 200mOhm Max | - | 1.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.728" Dia x 0.374" W (18.50mm x 9.50mm) | - |
|
2104-H-RCFIXED IND 18UH 7.4A 13 MOHM TH |
27 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 18 µH | ±15% | 7.4 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
VLB7050HT-R09MFIXED IND 90NH 36A 0.27 MOHM SMD |
66 |
|
Datasheet |
VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 90 nH | ±20% | 36 A | 64A | Unshielded | 0.27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.268" L x 0.264" W (6.80mm x 6.70mm) | 0.197" (5.00mm) |
|
P3519R-823JFIXED IND 82UH 387MA 1.96OHM SMD |
100 |
|
Datasheet |
P3519R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 387 mA | 480mA | Unshielded | 1.96Ohm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
74459222FIXED IND 220UH 1.2A 0.47OHM SMD |
62 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 220 µH | ±20% | 1.2 A | 1.9A | Shielded | 470mOhm Max | - | 3.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
B82559A0302A013FIXED IND 3UH 13A 4 MOHM SMD |
55 |
|
Datasheet |
ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±10% | 13 A | 13A | Shielded | 4mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | 0.195" (4.95mm) |
|
|
78433391500WE-CHSA PERFORMANCE SMD HIGH CUR |
52 |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 15 µH | ±20% | 4.3 A | 11.3A | Shielded | 60.9mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
MPX1D1740L1R0FIXED IND 1UH 30A 2.3 MOHM SMD |
64 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 30 A | 43A | Shielded | 2.3mOhm Max | - | 30MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
FIT50-4FIXED IND 21.65UH 4.8A 29.2 MOHM |
63 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 21.65 µH | - | 4.8 A | - | Unshielded | 29.2mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | 0.750" (19.05mm) |
|
|
2211-H-RCFIXED IND 68UH 4.9A 46 MOHM TH |
45 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 68 µH | ±15% | 4.9 A | - | Shielded | 46mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
7847132060WE-RCIT ROD CORE INDUCTOR THT 6. |
93 |
|
Datasheet |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Tray | Active | Wirewound | - | 6 µH | ±25% | 15 A | 45A | Unshielded | 3.5mOhm | - | 55MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.551" Dia x 1.181" L (14.00mm x 30.00mm) | - |
|
PA2729.502NLFIXED IND 4.9UH 16.4A 3.4MOHM SM |
54 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 4.9 µH | ±15% | 16.4 A | 20.9A | Shielded | 3.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
MPX1D1250L1R5FIXED IND 1.5UH 24.2A 3.6MOHM SM |
92 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 24.2 A | 32A | Shielded | 3.6mOhm Max | - | 25MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|

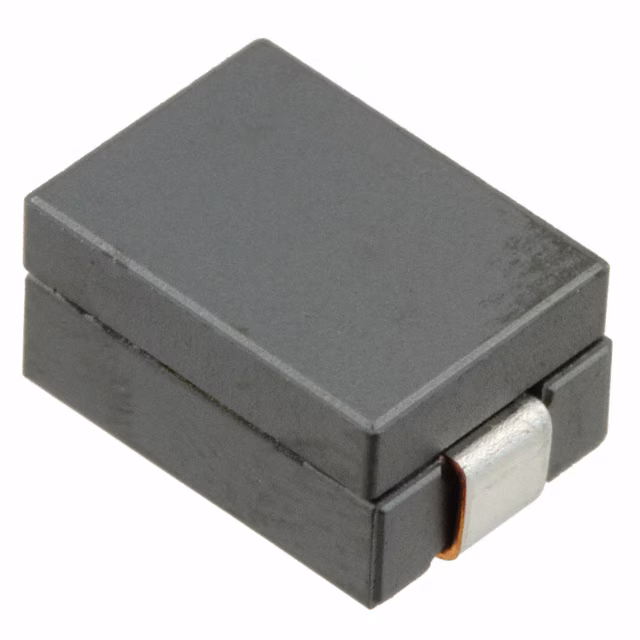

VLB10050HT-R30NFIXED IND 300NH 21A 0.35MOHM SMD |
85 |
|
Datasheet |
VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±30% | 21 A | 31A | Unshielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.386" L x 0.264" W (9.80mm x 6.70mm) | 0.197" (5.00mm) |
|
P0147NLFIXED IND 56UH 1.65A 139MOHM SMD |
30 |
|
Datasheet |
Bobcat | Nonstandard | Tube | Active | Toroidal | - | 56 µH | - | 1.65 A | - | Unshielded | 139mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
