Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447221331FIXED IND 330UH 1.35A 320MOHM TH |
30 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.35 A | 1.55A | Unshielded | 320mOhm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.669" (17.00mm) |
|
HCMA1305-R56-RFIXED IND 560NH 36A 1.33MOHM SMD |
418 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 560 nH | ±20% | 36 A | 55A | Shielded | 1.33mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
SRP1038WA-3R3MIND,11X10X3.8MM,3.3UH20%,15A,SHD |
100 |
|
Datasheet |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 15 A | 17A | Shielded | 10.4mOhm Max | 20 @ 100kHz | 19MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
MPX1D0624L6R8FIXED IND 6.8UH 4.3A 67.4MOHM SM |
85 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 4.3 A | 5.5A | Shielded | 67.4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
HCM1307-R47-RFIXED IND 470NH 38A 1.2 MOHM SMD |
353 |
|
Datasheet |
HCM1307 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 38 A | 63A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.256" (6.50mm) |
|
MPX1D0618L3R3FIXED IND 3.3UH 4A 61.5 MOHM SMD |
78 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 4 A | 6.5A | Shielded | 61.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
SBC7-100-532FIXED IND 10UH 5.3A 20 MOHM TH |
58 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.3 A | 11.8A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|

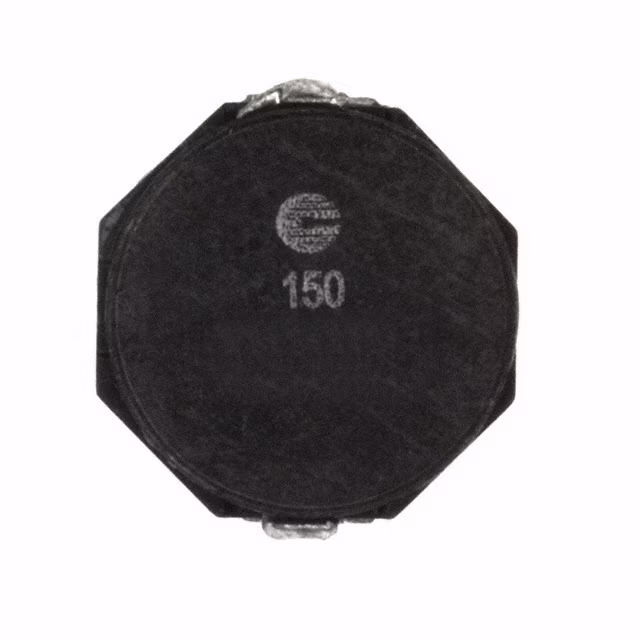

SD8328-150-RFIXED IND 15UH 2.35A 69 MOHM SMD |
0 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.35 A | 2A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
HCM1A1305V2-6R8-RFIXED IND 6.8UH 9.5A 14MOHM SMD |
217 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 9.5 A | 15A | Shielded | 14mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
FP1007R6-R27-RFIXED IND 270NH 61A 0.29MOHM SMD |
120 |
|
Datasheet |
FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±10% | 61 A | 41A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.276" (7.00mm) |
|
|
7447231222FIXED IND 2.2MH 540MA 1.9 OHM TH |
75 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 2.2 mH | ±5% | 540 mA | 700mA | Unshielded | 1.9Ohm Max | - | 720kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
|
7447231221FIXED IND 220UH 1.75A 200MOHM TH |
45 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 220 µH | ±10% | 1.75 A | 2.1A | Unshielded | 200mOhm Max | - | 2.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
|
7447231471FIXED IND 470UH 1.2A 410 MOHM TH |
37 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 470 µH | ±10% | 1.2 A | 1.5A | Unshielded | 410mOhm Max | - | 1.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
CDRR105NP-100MCFIXED IND 10UH 3A 47.5 MOHM SMD |
72 |
|
Datasheet |
CDRR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 3 A | 2.48A | Shielded | 47.5mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
7447211681FIXED IND 680UH 830MA 760MOHM TH |
51 |
|
Datasheet |
WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 680 µH | ±10% | 830 mA | 1.1A | Unshielded | 760mOhm Max | - | 1.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|
IHLP5050EZER1R0M5AFIXED IND 1UH 36.64A 2.14MOHM SM |
69 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 36.64 A | 28A | Shielded | 2.14mOhm Max | - | 37.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
33470CFIXED IND 47UH 3.5A 48 MOHM TH |
63 |
|
Datasheet |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 47 µH | ±15% | 3.5 A | - | Unshielded | 48mOhm Max | 3.4 @ 1MHz | 17MHz | - | -40°C ~ 125°C | 1 MHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
744071680FIXED IND 68UH 1.3A 230 MOHM SMD |
63 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.3 A | 1.1A | Shielded | 230mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
MPX1D1040L2R2FIXED IND 2.2UH 14.6A 7.9MOHM SM |
62 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 14.6 A | 18.5A | Shielded | 7.9mOhm Max | - | 23MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPX1D1040L3R3FIXED IND 3.3UH 11.4A 12.8 MOHM |
60 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 11.4 A | 15A | Shielded | 12.8mOhm Max | - | 18MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
