Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1307V2-220-RFIXED IND 22UH 6A 33.1 MOHM SMD |
346 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 6 A | 8A | Shielded | 33.1mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
8230-40-RCFIXED IND 6.8UH 245MA 2 OHM TH |
82 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 245 mA | - | Unshielded | 2Ohm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-34-RCFIXED IND 3.9UH 350MA 1 OHM TH |
78 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 350 mA | - | Unshielded | 1Ohm Max | 45 @ 7.9MHz | 82MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

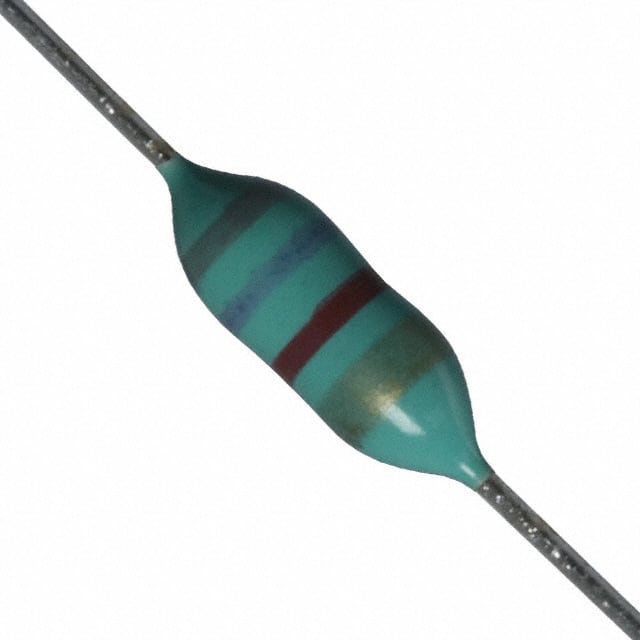

8230-06-RCFIXED IND 270NH 875MA 160MOHM TH |
59 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 270 nH | ±10% | 875 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
9250A-125-RCFIXED IND 1.2MH 60MA 22.1 OHM TH |
34 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 1.2 mH | ±10% | 60 mA | 35mA | Shielded | 22.1Ohm Max | 45 @ 250kHz | 1.5MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
RLS-105FIXED IND 100UH 1.02A 350MOHM SM |
55 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Wirewound | - | 100 µH | ±10% | 1.02 A | 1.1A | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

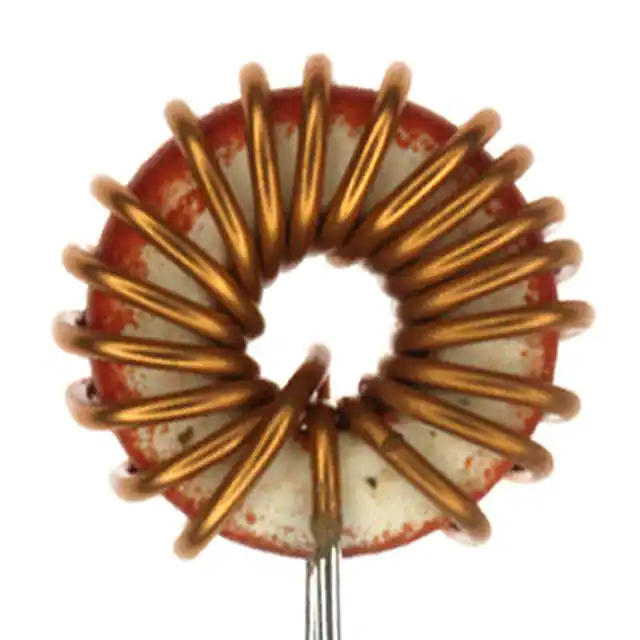

7447053FIXED IND 12UH 1A 30 MOHM TH |
80 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 12 µH | ±20% | 1 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.394" Dia x 0.197" W (10.00mm x 5.00mm) | - |
|
SBC7-102-541FIXED IND 1MH 540MA 1.2 OHM TH |
39 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 540 mA | 1.1A | Unshielded | 1.2Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.689" (17.50mm) |
|
744750420068FIXED IND 6.8UH 7.2A 12 MOHM TH |
100 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 7.2 A | 11.4A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 1280 | 0.504" Dia (12.80mm) | 0.354" (9.00mm) |
|
|
HCM1A1305V2-1R0-RFIXED IND 1UH 24A 2.05 MOHM SMD |
320 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 24 A | 35A | Shielded | 2.05mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
B82464D6222M000FIXED IND 2.2UH 6.17A 0.021OHM |
600 |
|
Datasheet |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.17 A | 13.85A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|
|
B82464D6153M000FIXED IND 15UH 3.09A 0.084OHM SM |
600 |
|
Datasheet |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.09 A | 5.2A | Shielded | 84mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|
MWSA1707S-2R2MTFIXED IND 2.2UH 2.5 MOHM SMD |
100 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | - | - | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
IHLP5050EZER5R6M5AFIXED IND 5.6UH 13.96A 13.2 MOHM |
48 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 13.96 A | 16.9A | Shielded | 13.2mOhm Max | - | 14.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
PG0936.162NLFIXED IND 1.6UH 31A 1.5 MOHM SMD |
70 |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 1.6 µH | ±20% | 31 A | 36A | Unshielded | 1.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
MWSA1707S-8R2MTFIXED IND 8.2UH 8.7 MOHM SMD |
200 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 8.2 µH | ±20% | - | - | Shielded | 8.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
|
MWSA1707S-100MTFIXED IND 10UH 9.9 MOHM SMD |
73 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | - | - | Shielded | 9.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
7447779127FIXED IND 27UH 1.24A 150MOHM SMD |
97 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.24 A | 1.55A | Shielded | 150mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
HCM1A1307V2-4R7-RFIXED IND 4.7UH 13A 7.25MOHM SMD |
43 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 13 A | 20A | Shielded | 7.25mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
IHLP5050EZER1R5M5AFIXED IND 1.5UH 31.27A 2.94 MOHM |
72 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 31.27 A | 28A | Shielded | 2.94mOhm Max | - | 30.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
