Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4DEHPQ6100A8TKCAP FILM 100UF 10% 600VDC RADIAL |
2,511 |
|
Datasheet |
Radial, Can | 100 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 0.6 mOhms | -40°C ~ 85°C | Chassis Mount | 3.307" Dia (84.00mm) | 2.598" (66.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESL |
|
|
23FD3730CAP FILM 30UF 10% 370VAC RADIAL |
8,543 |
|
Datasheet |
Radial, Can | 30 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.125" Dia (53.98mm), Lip | 3.250" (82.55mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
|
SCRN224RCAP FILM 10UF 10% 600VPK RADIAL |
9,181 |
|
Datasheet |
Radial, Can | 10 µF | ±10% | 600Vpk | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.910" L x 1.910" W (73.91mm x 48.51mm), Lip | 4.310" (109.47mm) | Threaded, Male | 1.380" (35.05mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
GTOMO15200GE00MS00GTO MKP 20.0 F 1000 VDC 90X58 KM |
2,276 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GTOMO15200GE00KS00GTO MKP 20.0 F 1000 VDC 90X58 KM |
5,839 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
T6W4NR-FCAP FILM 4UF 10% 600VDC RADIAL |
4,369 |
|
Datasheet |
Radial, Can | 4 µF | ±10% | - | 600V | Paper, Metallized | - | -55°C ~ 105°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.690" (68.33mm) | Threaded, Male | 0.810" (20.57mm) | EMI, RFI Suppression | - | High Temperature |
|

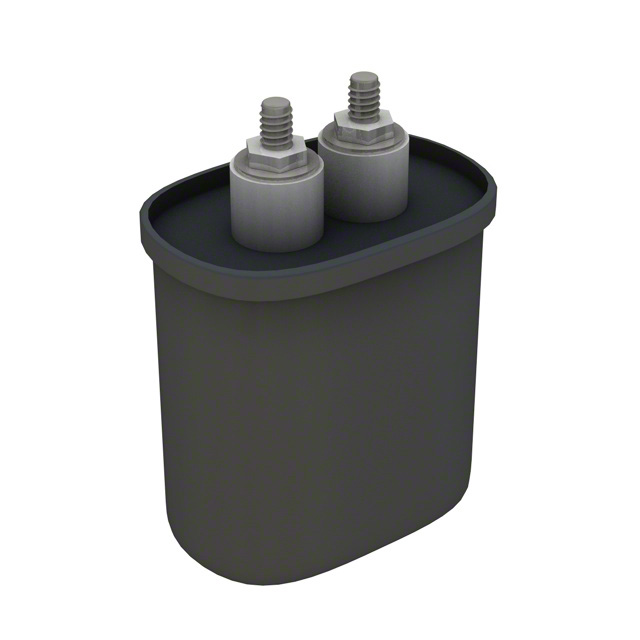

T10W6NR-FCAP FILM 6UF 10% 1KVDC RADIAL |
2,326 |
|
Datasheet |
Radial, Can | 6 µF | ±10% | - | 1000V (1kV) | Paper, Metallized | - | -55°C ~ 105°C | Chassis Mount, Requires Holder/Bracket | 2.910" L x 1.910" W (73.91mm x 48.51mm), Lip | 3.560" (90.42mm) | Threaded, Male | 1.380" (35.05mm) | EMI, RFI Suppression | - | High Temperature |
|
|
GTOMM05300GE00KS00GTO MKP 30.0 F 850 VDC 90X58 KM6 |
4,525 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GTOMM05300GE00MS00GTO MKP 30.0 F 850 VDC 90X58 KM6 |
5,648 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GTOMG05900GE00JS00GTO MKP 90.0 F 400 VDC 90X58 KM6 |
4,666 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32377A6506J000CAP FILM 50UF 5% 1.5KVDC RADIAL |
4,385 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 600V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 10.925" (277.50mm) | Terminal Block | 0.591" (15.00mm) | 3 Phase | - | - |
|
|
944L660K102AAIDC LINK, LOW INDUCTANCE |
5,926 |
|
Datasheet |
Radial, Can | 66 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 0.5 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.594" (40.50mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESR, Low ESL |
|
|
GTOMU04600GE00JS00GTO MKP 6.0 F 2000 VDC 90X58 KM6 |
6,477 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FLBA6N0206K03NEW |
4,607 |
|
Datasheet |
Radial, Can | 20.3 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | 3.346" Dia (85.00mm) | 7.953" (202.00mm) | Terminal Block | 0.630" (16.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
FLBA6J0386K03LOADED |
9,605 |
|
Datasheet |
Radial, Can | 38.5 µF | ±10% | 525V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | 3.346" Dia (85.00mm) | 7.953" (202.00mm) | Terminal Block | 0.630" (16.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
SNU102K205R-FCAP FILM 2UF 10% 1KVPK RADIAL |
8,203 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -50°C ~ 70°C | Chassis Mount | 2.100" L x 1.810" W (53.34mm x 45.97mm) | 3.130" (79.50mm) | Solder Lug | 0.810" (20.57mm) | High Pulse, DV/DT; Snubber | - | - |
|
|
FLAG36A0357KHNEW |
2,202 |
|
Datasheet |
Radial, Can | 350 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Screw Terminals | - | EMI, RFI Suppression | - | - |
|
|
MKP1848C72490JY5CAP FILM 240UF 5% 900VDC RADIAL |
8,403 |
|
Datasheet |
Radial - 4 Leads | 240 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 1.5 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 5.118" W (57.50mm x 130.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
106K100CB4G-CTFILM/M |
9,407 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
106K100CB4G-FA-CTFILM/M |
3,826 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
