Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS4C064709FD4KSSDCAP FILM 470UF 63VDC RAD 4 LEAD |
3,685 |
|
Datasheet |
Radial - 4 Leads | 470 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.378" W (57.00mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C064709FD4KSC9CAP FILM 470UF 63VDC RAD 4 LEAD |
7,380 |
|
Datasheet |
Radial - 4 Leads | 470 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.378" W (57.00mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

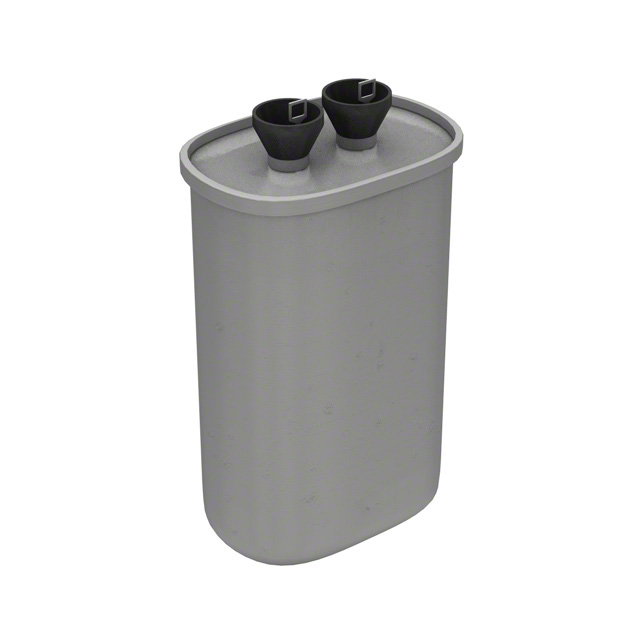

OTBJ405KNPIR-FCAP FILM 4UF 10% 2KVDC RADIAL |
7,848 |
|
Datasheet |
Radial, Can | 4 µF | ±10% | 700V | 2000V (2kV) | Paper, Metallized | - | -55°C ~ 85°C | Chassis Mount, Requires Holder/Bracket | 2.910" L x 1.910" W (73.91mm x 48.51mm) | 4.250" (107.95mm) | Solder Lug | 0.810" (20.57mm) | DC Link, DC Filtering; Motor Run | - | - |
|
SNU202K254R-FCAP FILM 0.25UF 10% 2KVPK RADIAL |
7,101 |
|
Datasheet |
Radial, Can | 0.25 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -50°C ~ 70°C | Chassis Mount | 2.100" L x 1.810" W (53.34mm x 45.97mm) | 2.134" (54.20mm) | Solder Lug | 0.810" (20.57mm) | High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1848C72060JY5CAP FILM 200UF 5% 600VDC RADIAL |
9,961 |
|
Datasheet |
Radial - 4 Leads | 200 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 2.756" W (57.50mm x 70.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
DCP4G064009JD4JSSDDC-LINK MKP 4 400.0 F 400 VDC 45 |
2,504 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4G064009JD4JSC9DC-LINK MKP 4 400.0 F 400 VDC 45 |
4,635 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

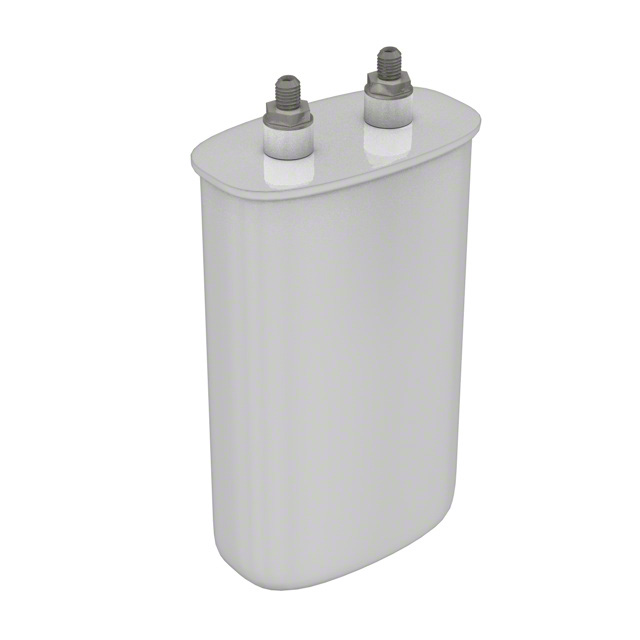

SCRN242R-FCAP FILM 2UF 10% 1.5KVPK RADIAL |
5,666 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | 1500Vpk (1.5KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.690" L x 1.560" W (68.33mm x 39.62mm), Lip | 3.560" (90.42mm) | Threaded, Male | 1.250" (31.75mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
B32373A2607J050CAP FILM 600UF 5% 675VDC RADIAL |
4,426 |
|
- |
Radial, Can | 600 µF | ±5% | 250V | 675V | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.744" (247.50mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
MKS4D064709JD4KSSDCAP FILM 470UF 100VDC RAD 4 LEAD |
3,131 |
|
Datasheet |
Radial - 4 Leads | 470 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4D064709JD4KSC9CAP FILM 470UF 100VDC RAD 4 LEAD |
8,378 |
|
Datasheet |
Radial - 4 Leads | 470 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4DCMAQ4600AA0JCAP FILM 6UF 5% 850VDC AXIAL |
6,499 |
|
Datasheet |
Axial, Can - Screw Terminals | 6 µF | ±5% | 500V | 850V | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.543" Dia (90.00mm) | 2.008" (51.00mm) | Threaded, Female | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
C4DCNAQ4400AA0JCAP FILM 4UF 5% 1KVDC AXIAL |
5,362 |
|
Datasheet |
Axial, Can - Screw Terminals | 4 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.543" Dia (90.00mm) | 2.008" (51.00mm) | Threaded, Female | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
C4DRFAQ5750AA0JCAP FILM METAL AXL POLYPROP |
5,312 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 75 µF | ±5% | 160V | 400V | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Requires Holder | 3.543" Dia (90.00mm) | 2.008" (51.00mm) | - | - | General Purpose | - | Low ESL |
|
|
C4DRSAQ4400AA0JCAP FILM METAL AXL POLYPROP |
8,474 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 4 µF | ±5% | 500V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Requires Holder | 3.543" Dia (90.00mm) | 2.008" (51.00mm) | - | - | General Purpose | - | Low ESL |
|
|
C4DCNAQ4350AA0JCAP FILM METAL AXL POLYPROP |
8,436 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 3.5 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Requires Holder | 3.543" Dia (90.00mm) | 2.008" (51.00mm) | - | - | General Purpose | - | Low ESL |
|
|
C4DCRAQ4100ZA0JCAP FILM METAL AXL POLYPROP |
6,758 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 1 µF | ±5% | 700V | 1400V (1.4kV) | Polypropylene (PP), Metallized | 0.6 mOhms | -40°C ~ 85°C | Requires Holder | 3.543" Dia (90.00mm) | 2.008" (51.00mm) | - | - | DC Link, DC Filtering; High Pulse, DV/DT | - | Low ESL |
|
|
C4DRYAQ4125AA0JCAP FILM METAL AXL POLYPROP |
6,483 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 1.25 µF | ±5% | 1000V (1kV) | 3000V (3kV) | Polypropylene (PP), Metallized | 1.2 mOhms | -40°C ~ 85°C | Requires Holder | 3.543" Dia (90.00mm) | 2.047" (52.00mm) | - | - | General Purpose | - | Low ESL |
|
|
C4DRSAQ5150AA0JCAP FILM METAL AXL POLYPROP |
2,143 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 15 µF | ±5% | 500V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 1.7 mOhms | -40°C ~ 85°C | Requires Holder | 3.543" Dia (90.00mm) | 3.898" (99.00mm) | - | - | General Purpose | - | Low ESL |
|
|
C4DRPAQ5120AA0JCAP FILM METAL AXL POLYPROP |
5,263 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 12 µF | ±5% | 440V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Requires Holder | 3.543" Dia (90.00mm) | 2.402" (61.00mm) | - | - | General Purpose | - | Low ESL |
