Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C44BXGP4400ZA0JCAP POLYPROP FILM CAN |
6,874 |
|
Datasheet |
Radial, Can | 4 µF | ±5% | 1000V (1kV) | 2400V (2.4kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 7.953" (202.00mm) | Threaded, Male | 0.878" (22.30mm) | Snubber | - | - |
|
|
C44UQGT5500A7TKCAP POLYPROP FILM CAN |
3,527 |
|
Datasheet |
Radial, Can | 50 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.6 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 2.244" (57.00mm) | Threaded, Female | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
GTOMG05700GD00JS00GTO MKP 70.0 F 400 VDC 90X49 KM5 |
3,016 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SNU102K105R-FCAP FILM 1UF 10% 1KVPK RADIAL |
2,498 |
|
Datasheet |
Radial, Can | 1 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -50°C ~ 70°C | Chassis Mount | 2.100" L x 1.810" W (53.34mm x 45.97mm) | 2.134" (54.20mm) | Solder Lug | 0.810" (20.57mm) | High Pulse, DV/DT; Snubber | - | - |
|

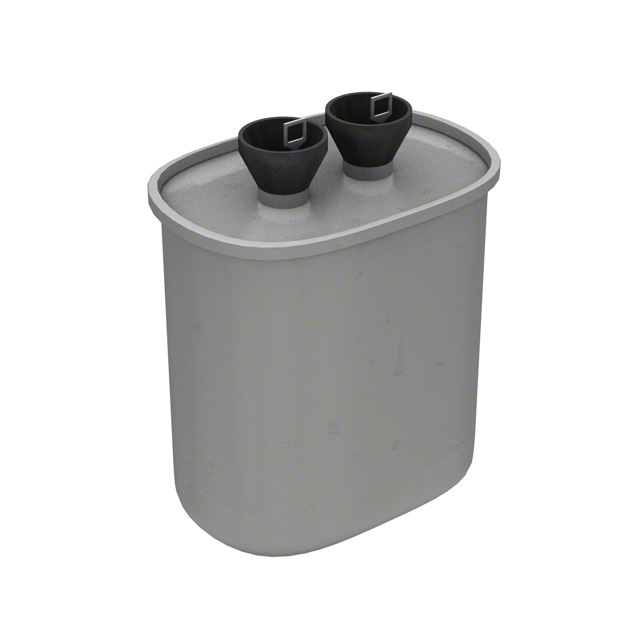

OTBF126KNPIR-FCAP FILM 12UF 10% 600VDC RADIAL |
9,444 |
|
Datasheet |
Radial, Can | 12 µF | ±10% | 330V | 600V | Paper, Metallized | - | -55°C ~ 85°C | Chassis Mount, Requires Holder/Bracket | 2.910" L x 1.910" W (73.91mm x 48.51mm), Lip | 4.000" (101.60mm) | Solder Lug | 0.810" (20.57mm) | DC Link, DC Filtering; Motor Run | - | - |
|
|
MKS4C064709FD4JSSDCAP FILM 470UF 63VDC RAD 4 LEAD |
5,724 |
|
Datasheet |
Radial - 4 Leads | 470 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.378" W (57.00mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C064709FD4JSC9CAP FILM 470UF 63VDC RAD 4 LEAD |
6,288 |
|
Datasheet |
Radial - 4 Leads | 470 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.378" W (57.00mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
FLAG56L0207KHNEW |
4,268 |
|
Datasheet |
Radial, Can | 200 µF | ±10% | 450V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 8.346" (212.00mm) | Threaded, Male | 1.181" (30.00mm) | EMI, RFI Suppression | - | - |
|
|
GTOMM05250GD00KS00GTO MKP 25.0 F 850 VDC 90X49 KM5 |
8,479 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GTOMM05250GD00MS00GTO MKP 25.0 F 850 VDC 90X49 KM5 |
3,589 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C4ASWBU4100A3MJCAP FILM METAL RAD POLYPROP |
6,509 |
|
Datasheet |
Radial | 1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | High Pulse, DV/DT; Snubber | - | - |
|
|
MKS4D064709JD4JSSDCAP FILM 470UF 100VDC RAD 4 LEAD |
3,780 |
|
Datasheet |
Radial - 4 Leads | 470 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4D064709JD4JSC9CAP FILM 470UF 100VDC RAD 4 LEAD |
5,372 |
|
Datasheet |
Radial - 4 Leads | 470 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
GTOMG05800GD00JS00GTO MKP 80.0 F 400 VDC 90X49 KM5 |
5,522 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
944U520K142ABICAP FILM 52UF 10% 1.4KVDC RADIAL |
9,495 |
|
Datasheet |
Radial, Can | 52 µF | ±10% | - | 1400V (1.4kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
MKT1820727015CAP FILM 270UF 10% 100VDC RADIAL |
4,911 |
|
Datasheet |
Radial | 270 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
|
944U700K122ABICAP FILM 70UF 10% 1.2KVDC RADIAL |
2,068 |
|
Datasheet |
Radial, Can | 70 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
MKT1820733065CAP FILM 330UF 10% 63VDC RADIAL |
9,607 |
|
Datasheet |
Radial | 330 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
|
GTOMG05900GE00KS00GTO MKP 90.0 F 400 VDC 90X58 KM6 |
7,831 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GTOMG05900GE00MS00GTO MKP 90.0 F 400 VDC 90X58 KM6 |
8,334 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
