Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32377A5406J030CAP FILM 40UF 5% 1.35KVDC RADIAL |
6,888 |
|
Datasheet |
Radial, Can | 40 µF | ±5% | 530V | 1350V (1.35kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 10.925" (277.50mm) | Terminal Block | 0.591" (15.00mm) | 3 Phase | - | - |
|
|
B25620B1267K321CAP FILM 260UF 10% 1.32KVDC RAD |
2,000 |
|
Datasheet |
Radial, Can | 260 µF | ±10% | - | 1320V (1.32kV) | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.236" (133.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|

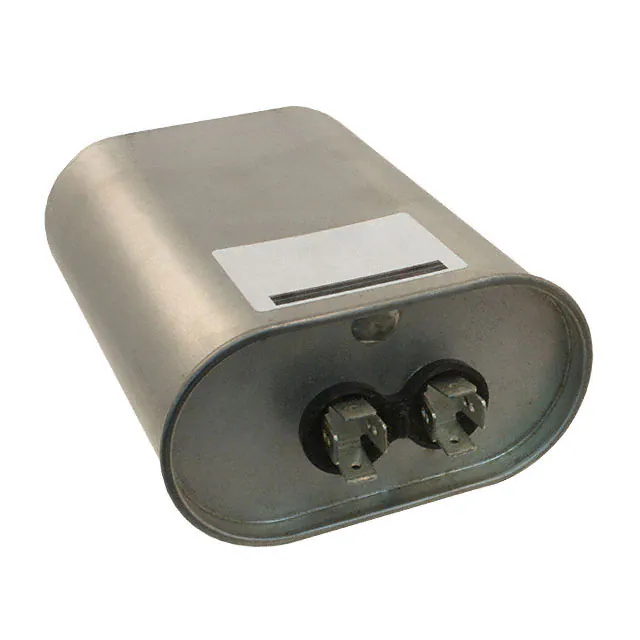

SFD66T35K475B-FCAP FILM 35UF 10% 660VAC RADIAL |
3,336 |
|
Datasheet |
Radial, Can | 35 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 5.030" (127.76mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
T30P5NR-FCAP FILM 0.5UF 10% 3KVDC RADIAL |
8,683 |
|
Datasheet |
Radial, Can | 0.5 µF | ±10% | - | 3000V (3kV) | Paper, Metallized | - | -55°C ~ 105°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.190" (81.03mm) | Threaded, Male | 0.810" (20.57mm) | EMI, RFI Suppression | - | High Temperature |
|
B32362A3257J030CAP FILM 250UF 5% 330VAC RADIAL |
7,408 |
|
Datasheet |
Radial, Can | 250 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.756" (197.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
C4DRSAQ4300AA0JCAP FILM METAL AXL POLYPROP |
8,992 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 3 µF | ±5% | 500V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -40°C ~ 85°C | Requires Holder | 3.150" Dia (80.00mm) | 2.008" (51.00mm) | - | - | General Purpose | - | Low ESL |
|
|
C4DRPAQ5200AA0JCAP FILM METAL AXL POLYPROP |
4,736 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 20 µF | ±5% | 440V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 85°C | Requires Holder | 3.150" Dia (80.00mm) | 3.898" (99.00mm) | - | - | General Purpose | - | Low ESL |
|
|
C4DRSAQ4500AA0JCAP FILM METAL AXL POLYPROP |
2,703 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 5 µF | ±5% | 500V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -40°C ~ 85°C | Requires Holder | 3.150" Dia (80.00mm) | 2.402" (61.00mm) | - | - | General Purpose | - | Low ESL |
|
|
C4DRMAQ5100AA0JCAP FILM METAL AXL POLYPROP |
5,310 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 10 µF | ±5% | 330V | 850V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Requires Holder | 3.150" Dia (80.00mm) | 2.402" (61.00mm) | - | - | General Purpose | - | Low ESL |
|
|
C4DCRAQ4300AA0JCAP FILM METAL AXL POLYPROP |
8,442 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 3 µF | ±5% | 700V | 1400V (1.4kV) | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 85°C | Requires Holder | 3.150" Dia (80.00mm) | 2.520" (64.00mm) | - | - | General Purpose | - | Low ESL |
|
|
C4DRMAQ5200AA0JCAP FILM METAL AXL POLYPROP |
8,279 |
|
Datasheet |
Disk, Metal Fitting - Threaded | 20 µF | ±5% | 330V | 850V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Requires Holder | 3.150" Dia (80.00mm) | 2.402" (61.00mm) | - | - | General Purpose | - | Low ESL |
|
|
GTOMI05500GE00MS00GTO MKP 50.0 F 600 VDC 90X58 KM6 |
6,070 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GTOMI05500GE00KS00GTO MKP 50.0 F 600 VDC 90X58 KM6 |
3,512 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GTOMO15150GD00KS00GTO MKP 15.0 F 1000 VDC 90X49 KM |
5,353 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GTOMO15150GD00MS00GTO MKP 15.0 F 1000 VDC 90X49 KM |
6,228 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C44BXGP4300ZA0JCAP POLYPROP FILM CAN |
5,082 |
|
Datasheet |
Radial, Can | 3 µF | ±5% | 1000V (1kV) | 2400V (2.4kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 6.969" (177.00mm) | Threaded, Male | 0.878" (22.30mm) | Snubber | - | - |
|
SCRN235R-FCAP FILM 3UF 10% 1KVPK RADIAL |
4,725 |
|
Datasheet |
Radial, Can | 3 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.940" (100.08mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
GTOMS05100GE00JS00GTO MKP 10.0 F 1500 VDC 90X58 KM |
6,381 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T10W2NR-FCAP FILM 2UF 10% 1KVDC RADIAL |
7,728 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | - | 1000V (1kV) | Paper, Metallized | - | -55°C ~ 105°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.690" (68.33mm) | Threaded, Male | 0.810" (20.57mm) | EMI, RFI Suppression | - | High Temperature |
.JPG)
|
SFD44T60K391B-FCAP FILM 60UF 10% 440VAC RADIAL |
9,500 |
|
Datasheet |
Radial, Can | 60 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
