Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32778Z0406K000CAP FILM 40UF 1KVDC RDL 4 LEAD |
90 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
PMB2154100KVPCAP FILM 1UF 10% 1.5KVDC SCREW |
95 |
|
Datasheet |
Rectangular Box | 1 µF | ±10% | 650V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C4AFBBW4500T3MKFILM, RADIAL, POWER BOX, AC FILT |
32 |
|
Datasheet |
Radial - 4 Leads | 5 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 0.799" (20.30mm) | Automotive | AEC-Q200 | - |
|
C4AQOBW5330M3OJCAP FILM 33UF 5% 900VDC RADIAL |
54 |
|
Datasheet |
Radial - 4 Leads | 33 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 2.7 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQJLW5300M38JCAP FILM 30UF 5% 700VDC RADIAL |
44 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 0.992" (25.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
685PHC400KCAP FILM 6.8UF 10% 400VDC AXIAL |
98 |
|
Datasheet |
Axial | 6.8 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 6.4 mOhms | -40°C ~ 85°C | Through Hole | 1.024" Dia x 1.811" L (26.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
C4AQUBW5200A3MJCAP FILM 20UF 5% 1.3KVDC RADIAL |
61 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C4ASPBW4120A3JJCAP FILM 1.2UF 5% 1.2KVDC RADIAL |
50 |
|
Datasheet |
Radial - 4 Leads | 1.2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Snubber | - | - |
|

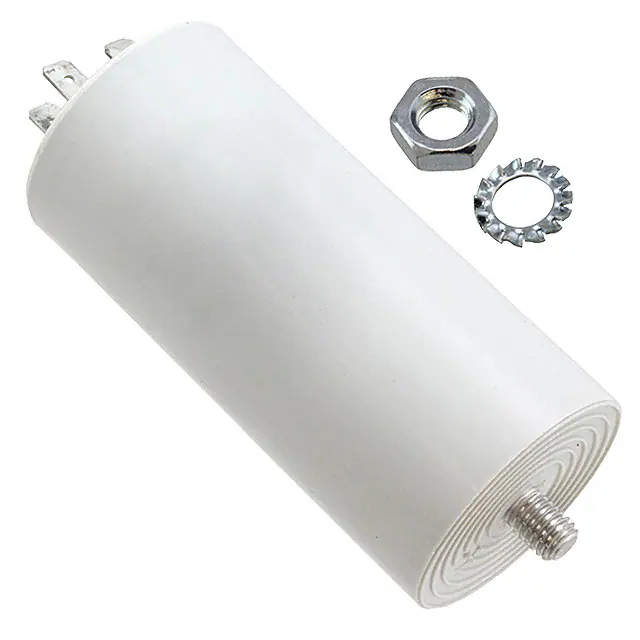

C274AC35250AA0JCAP FILM 25UF 5% 470VAC RADIAL |
31 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.740" (95.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
BLH156K102B092DC LINK, THB, 85/85, AEC-Q200 |
16 |
|
Datasheet |
Radial | 15 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
C4AQPEW5220M3CJCAP FILM 22UF 5% 1.2KVDC RADIAL |
20 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.256" (57.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AUQBW5180M3PJFILM, RADIAL, METALLIZED POLYPRO |
71 |
|
Datasheet |
Radial - 4 Leads | 18 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.929" (49.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQJBW5330M3HJCAP FILM 33UF 5% 700VDC RADIAL |
6 |
|
Datasheet |
Radial - 4 Leads | 33 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.740" (44.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R75IR51004040JCAP FILM 10UF 5% 250VDC RADIAL |
62 |
|
Datasheet |
Radial | 10 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

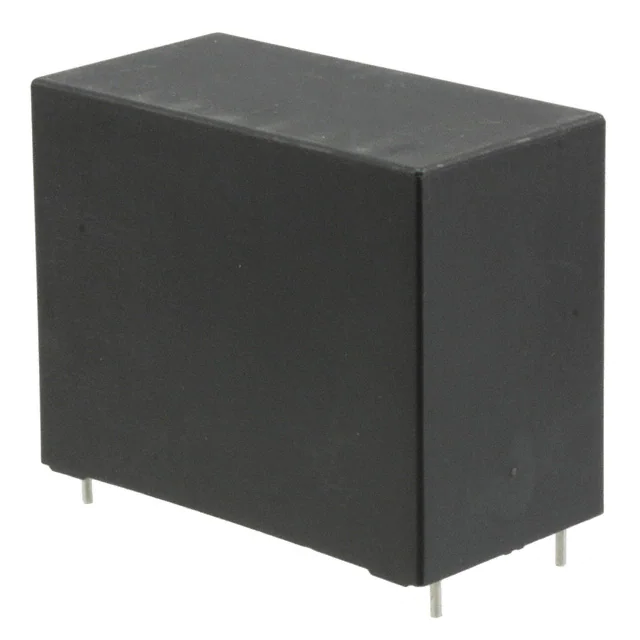

FE52N6J0506KBCAP FILM 50UF 10% 550VDC RADIAL |
91 |
|
Datasheet |
Radial | 50 µF | ±10% | - | 550V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 100°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR |
|
B33331I6156J08015UF 450V AL30*85 S2 2+2 |
48 |
|
Datasheet |
Radial, Can | 15 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 3.425" (87.00mm) | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
SFA66T2K156B-FCAP FILM 2UF 10% 660VAC RADIAL |
81 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 1.680" (42.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
MPX256K305RCAP FILM 25UF 10% 305VAC RADIAL |
100 |
|
Datasheet |
Radial | 25 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
B32678G8156K000CAP FILM 15UF 10% 875VDC RADIAL |
36 |
|
Datasheet |
Radial | 15 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
R75PW482050H3JCAP FILM 8.2UF 5% 630VDC RADIAL |
60 |
|
Datasheet |
Radial | 8.2 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 5.8 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
