Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFA44T7.5J288B-00DUCAP FILM 7.5UF 5% 440VAC RADIAL |
52 |
|
Datasheet |
Radial, Can | 7.5 µF | ±5% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.000" (76.20mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
B32320I1216K00021MFD 1300V PP 50X57 PBT 5 PIN |
8 |
|
Datasheet |
Radial, Can - 5 Lead | 21 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 2.244" (57.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
B32778Z1276K000CAP FILM 27UF 1.2KVDC RDL 4 LEAD |
97 |
|
Datasheet |
Radial - 4 Leads | 27 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 7.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
C4AQNBW5220M36JCAP FILM 22UF 5% 1KVDC RADIAL |
30 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.819" (46.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AF1BW5245T3OKFILM, POWER, METALLIZED POLYPROP |
90 |
|
Datasheet |
Radial - 4 Leads | 24.5 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 2.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
C4AF9BW5200F3OKFILM CAP AC, 20 UF, 10%,310 VAC |
90 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | 310V | 620V | Polypropylene (PP), Metallized | 4.7 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
B32656S0125K564CAP FILM 1.2UF 10% 1KVDC SCREW |
86 |
|
Datasheet |
Rectangular Box | 1.2 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | Screw Terminals | 1.476" (37.50mm) | Snubber | AEC-Q200 | Low ESL |
|
|
C4AQLBW5700A3LKCAP FILM 70UF 10% 500VDC RADIAL |
92 |
|
Datasheet |
Radial - 4 Leads | 70 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQIBW5300A3LJCAP FILM 30UF 5% 800VDC RADIAL |
66 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R533W518050P0KCAP FILM 18UF 10% 630VDC RADIAL |
23 |
|
Datasheet |
Radial | 18 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
C4ATHBU4100A30JCAP FILM 1UF 5% 600VDC RADIAL |
20 |
|
Datasheet |
Radial | 1 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 7.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
R75QW433050H0JCAP FILM 3.3UF 5% 1KVDC RADIAL |
88 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
C4AFABW4550T3OKFILM, POWER, METALLIZED POLYPROP |
29 |
|
Datasheet |
Radial - 4 Leads | 5.5 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.7 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
505PHC400KCAP FILM 5UF 10% 400VDC AXIAL |
71 |
|
Datasheet |
Axial | 5 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 7.4 mOhms | -40°C ~ 85°C | Through Hole | 0.886" Dia x 1.811" L (22.50mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
C4AF9BW5170T3OKFILM, POWER, METALLIZED POLYPROP |
15 |
|
Datasheet |
Radial - 4 Leads | 17 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
B33331I6705J0807UF 450V AL 30*55 S2 2+2 |
69 |
|
Datasheet |
Radial, Can | 7 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
|
C4AFABW4680F3OKFILM CAP AC, 6.8 UF, 10%,500 VAC |
6 |
|
Datasheet |
Radial - 4 Leads | 6.8 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 8.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
MKP385E4392AJPM2T0CAP FILM 0.39UF 5% 2KVDC RAD |
76 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|

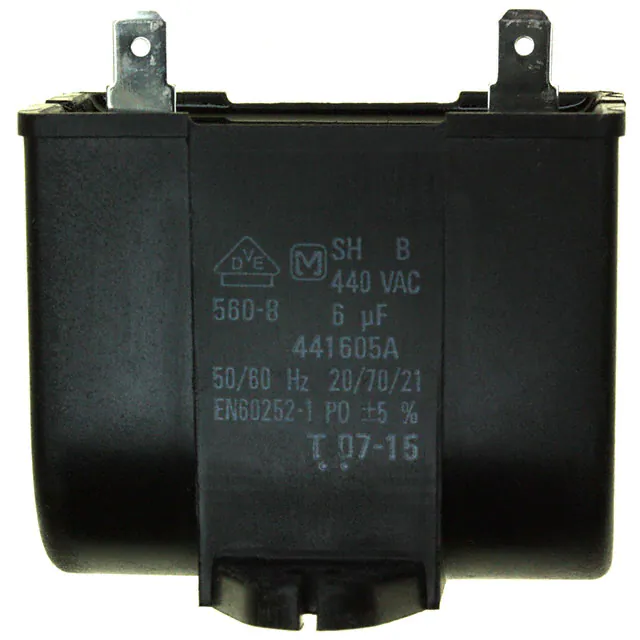

DS441605-BACAP FILM 6UF 10% 440VAC CHAS MT |
70 |
|
Datasheet |
Rectangular Box | 6 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969" L x 1.201" W (50.00mm x 30.50mm) | 1.654" (42.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
|
C4AF9BW5220F3MKFILM CAP AC, 22 UF, 10%, 310 VAC |
90 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±10% | 310V | 620V | Polypropylene (PP), Metallized | 6.2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
