Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
890493428013CSCAP FILM 4.7UF 10% 1KVDC RADIAL |
48 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 1000V (1kV) | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.654" L x 1.220" W (42.00mm x 31.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
F340X151548MKP2T0CAP FILM 1.5UF 20% 800VDC RADIAL |
31 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.524" (38.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|
C4AQUBW5180A3OJCAP FILM 18UF 5% 1.3KVDC RADIAL |
90 |
|
Datasheet |
Radial - 4 Leads | 18 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PHE450RR6680JR06L2CAP FILM 0.68UF 5% 1.6KVDC RAD |
85 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
C4AFBBW4470T3OKFILM, RADIAL, POWER BOX, AC FILT |
72 |
|
Datasheet |
Radial - 4 Leads | 4.7 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.7 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 0.799" (20.30mm) | Automotive | AEC-Q200 | - |
|
930C6P47K-FCAP FILM 0.47UF 10% 630VDC AXIAL |
99 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 28 mOhms | -55°C ~ 105°C | Through Hole | 0.697" Dia x 1.457" L (17.70mm x 37.00mm) | - | PC Pins | - | General Purpose | - | - |
|
942C12P47K-FCAP FILM 0.47UF 1.2KVDC AXIAL |
27 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 430V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.142" Dia x 1.811" L (29.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
MKP1841422135CAP FILM 0.22UF 10% 1.6KVDC RAD |
50 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
C4AQOBW5200P3LJCAP FILM 20UF 5% 900VDC RADIAL |
88 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
|
C878BF34400AA4JCAP FILM 4UF 5% 470VAC RADIAL |
58 |
|
Datasheet |
Radial, Can | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4AFABW4440T3LKFILM, POWER, METALLIZED POLYPROP |
69 |
|
Datasheet |
Radial - 4 Leads | 4.4 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
C4AQQBW5160M3LJCAP FILM 16UF 5% 1.1KVDC RADIAL |
48 |
|
Datasheet |
Radial - 4 Leads | 16 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQOBW5200M3HJCAP FILM 20UF 5% 900VDC RADIAL |
44 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.740" (44.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|

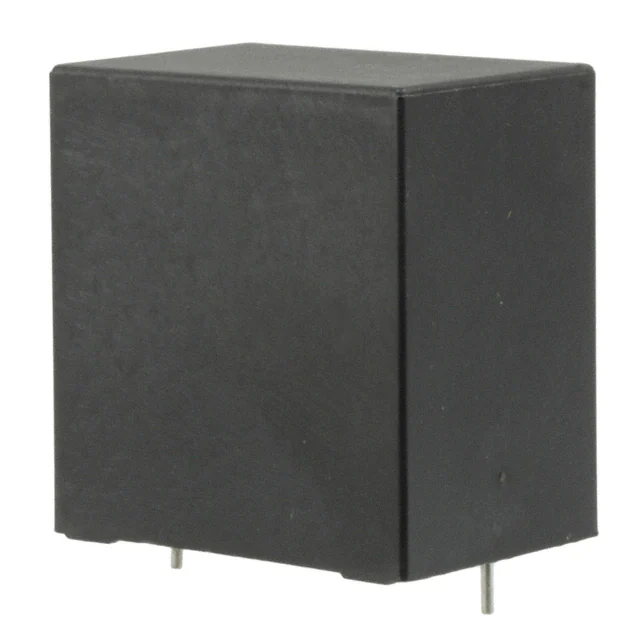

FB37M6A0306KCCAP FILM 30UF 10% 700VDC RADIAL |
59 |
|
Datasheet |
Radial | 30 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|

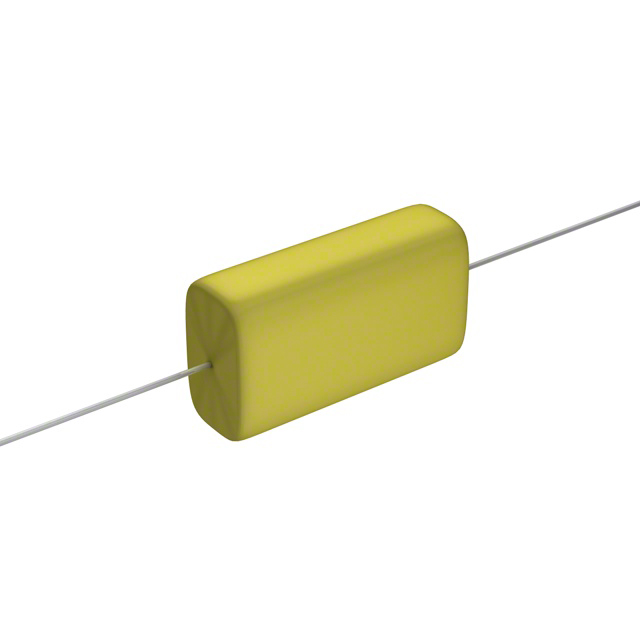

MMP6W1K-FCAP FILM 1UF 10% 630VDC AXIAL |
63 |
|
Datasheet |
Axial | 1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.866" W, 0.512" T x 1.535" L (22.00mm, 13.00mm x 39.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
B33331V7126J080CAP FILM 12UF 5% 460VAC RADIAL |
31 |
|
Datasheet |
Radial, Can | 12 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 13 mOhms | -40°C ~ 85°C | Chassis Mount | 1.594" Dia (40.50mm) | 2.638" (67.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
224PPA202KCAP FILM 0.22UF 10% 2KVDC AXIAL |
100 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 650V | 2000V (2kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 85°C | Through Hole | 0.906" Dia x 1.811" L (23.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
B33331I6505J0805UF 450V AL 30*55 S2 2+2 |
37 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
C276CCF4500LG0JCAP FILM 5UF 5% 470VAC RADIAL |
78 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.323" (59.00mm) | Wire Leads | - | Motor Run | - | - |
|
|
C4AQJBW5250M3FJCAP FILM 25UF 5% 700VDC RADIAL |
98 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
