Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

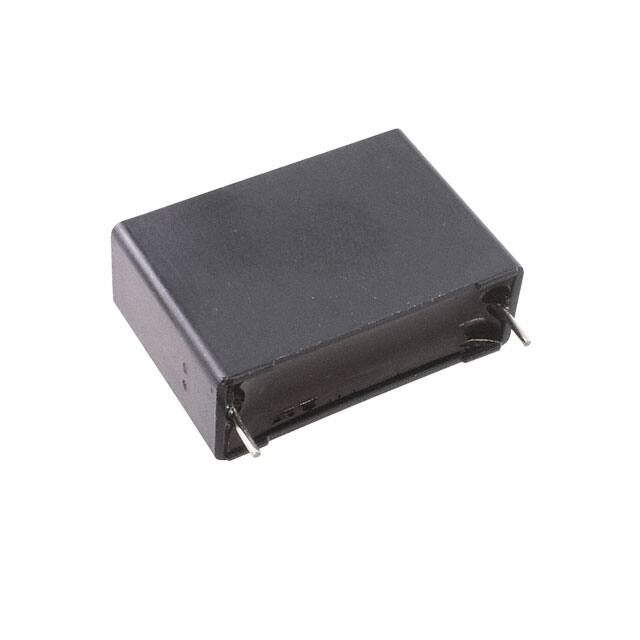

ECW-FE2W225QLCAP FILM 2.2UF 10% 450VDC RADIAL |
399 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-FE2J155P5CAP FILM 1.5UF 5% 630VDC RADIAL |
375 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R71MN4150AA00MCAP FILM METAL RAD POLYPROP |
9,467 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 220V | 420V | Polypropylene (PP), Metallized | 64 mOhms | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
ECQ-UAAF684KACAP FILM 0.68UF 10% 275VAC RAD |
986 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
MKS4C042203F00KSSDMKS 4 2.2 UF 63 VDC 5X11X13 PCM |
681 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
MPX20W3100FG00MSP1MP 3-X2 0.1 UF 250 VAC 20% 10X18 |
3,578 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 250V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.748" L x 0.394" W (19.00mm x 10.00mm) | 0.709" (18.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | Low ESR |
|
|
FKP1T021005H00JSSDFKP 1 0.01 UF 1600 VDC 10.5X20.5 |
1,094 |
|
- |
Radial | 10000 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
MKP1T031005I00KSSDMKP 10 0.1 UF 1600 VDC 11X21X26. |
1,583 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4F041005D00JSSDMKP 4 1.0 UF 250 VDC 7X16.5X26.5 |
1,000 |
|
Datasheet |
Radial | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
|
R46KR410040P0MCAP FILM SAFETY/EMI SUPP RAD |
8,633 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
FKP1R022205H00JSSDFKP 1 0.022 UF 1250 VDC 10.5X20. |
277 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
SMR10224J100A01L4BULKCAP FILM 0.22UF 5% 100VDC RADIAL |
4,766 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | High Temperature |
|
X2Q3333KN1B0130110050ES0X2 310VAC 33NF 10% P=10MM W13*H1 |
938 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.453" (11.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP1J031506A00JSSDMKP 10 0.15 UF 630 VDC 9X19X31.5 |
1,701 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECW-FG2J155KACAP FILM 1.5UF 10% 630VDC RADIAL |
559 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
QYX2A334KTPCAP FILM 0.33UF 10% 100VDC RAD |
465 |
|
Datasheet |
Radial | 0.33 µF | ±10% | - | 100V | Polyester | - | -40°C ~ 85°C | Through Hole | 0.571" L x 0.315" W (14.50mm x 8.00mm) | 0.728" (18.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
ECW-FE2J155PDCAP FILM 1.5UF 5% 630VDC RADIAL |
390 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R76TN3100CK40KCAP FILM AUTO POLYPROP RAD |
3,929 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
ECW-FG2J105KACAP FILM 1UF 10% 630VDC RADIAL |
628 |
|
Datasheet |
Radial | 1 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.374" W (31.50mm x 9.50mm) | 0.728" (18.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
QYX2A224JTPCAP FILM 0.22UF 5% 100VDC RADIAL |
183 |
|
Datasheet |
Radial | 0.22 µF | ±5% | - | 100V | Polyester | - | -40°C ~ 85°C | Through Hole | 0.551" L x 0.276" W (14.00mm x 7.00mm) | 0.610" (15.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
