Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X2Q3683KQ1B0180110050ES0X2 310VAC 68NF 10% P=15MM W18*H |
927 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|

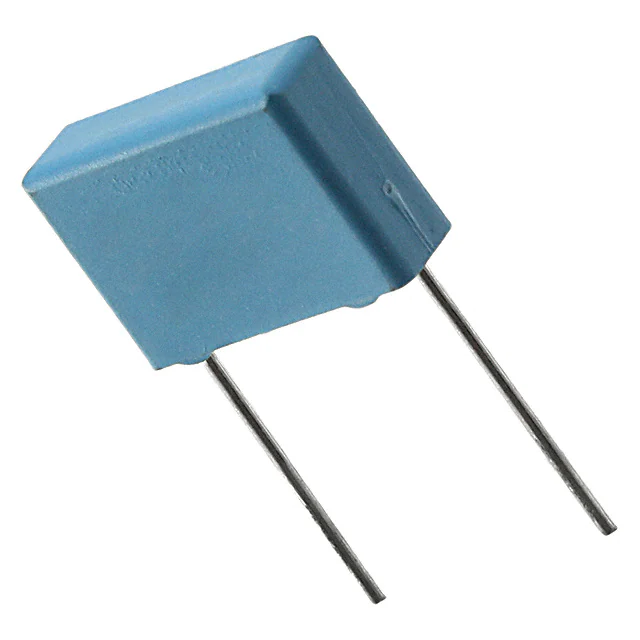

PHE820MB5220MR17CAP FILM 0.022UF 20% 275VAC RAD |
711 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FE2J155QDCAP FILM 1.5UF 10% 630VDC RADIAL |
400 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
X2Q3104KN1B0130120060ES0X2 310VAC 0.1UF 10% P=10MM W13*H |
400 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
171104J160E-FCAP FILM 0.1UF 5% 160VDC RADIAL |
5,456 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
QYX2A224KTPCAP FILM 0.22UF 10% 100VDC RAD |
129 |
|
Datasheet |
Radial | 0.22 µF | ±10% | - | 100V | Polyester | - | -40°C ~ 85°C | Through Hole | 0.551" L x 0.276" W (14.00mm x 7.00mm) | 0.610" (15.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
LDECC2100JA5N00CAP FILM 10000PF 5% 50VDC 1812 |
8,943 |
|
Datasheet |
1812 (4532 Metric) | 10000 pF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
MMK5394M50J01L4BULKCAP FILM 0.39UF 20% 50VDC RADIAL |
1,988 |
|
Datasheet |
Radial | 0.39 µF | ±20% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
ECH-U1H392GB5CAP FILM 3900PF 2% 50VDC 1206 |
581 |
|
Datasheet |
1206 (3216 Metric) | 3900 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
MKP1J032205F00KSSDMKP 10 0.22 UF 630 VDC 8.5X18.5X |
1,446 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
R76PN3150JB30JCAP FILM AUTO POLYPROP RAD |
2,346 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75LN32204000KCAP FILM 0.22UF 10% 560VDC RAD |
6,901 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | - |
|
|
MKP4D041005D00JSSDMKP 4 1.0 UF 100 VDC 7X16.5X26.5 |
3,867 |
|
Datasheet |
Radial | 1 µF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
 Series.jpg)
|
ECW-FE2J155JCAP FILM 1.5UF 5% 630VDC RADIAL |
284 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
CMPPAC310V105K27.5S5CAP FILM 1UF 310VAC RADIAL |
284 |
|
Datasheet |
Radial | 1 µF | - | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.315" W (31.00mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R475R32200001KCAP FILM SAFETY/EMI SUPP RAD |
1,632 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 520V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAV274T1CAP FILM 0.27UF 10% 310VAC RAD |
700 |
|
Datasheet |
Radial | 0.27 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
F461KM224J160ACAP FILM 0.22UF 5% 160VDC RADIAL |
620 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
|
ECQ-UAAV394R1CAP FILM 0.39UF 20% 310VAC RAD |
2,396 |
|
Datasheet |
Radial | 0.39 µF | ±20% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
MKP10 .47/630/5 LS37.5MKP10 .47/630/5 LS37.5 (8) RoHS |
1,220 |
|
Datasheet |
Radial | 0.47 µF | ±5% | - | 630V | Plastic, Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
