Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP4G036805F00JSSDMKP 4 0.68 UF 400 VDC 8.5X18.5X2 |
284 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
FCN2825G563J-YCAP FILM 0.056UF 5% 400VDC 2825 |
2,000 |
|
Datasheet |
2825 (7163 Metric) | 0.056 µF | ±5% | - | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.150" (3.81mm) | Solder Pads | - | General Purpose | - | - |
|
|
MKP1T026806A00JSSDMKP 10 0.068 UF 1600 VDC 9X19X31 |
1,584 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
PHE426HJ6180JR05CAP FILM 0.18UF 5% 250VDC RADIAL |
718 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKP1U014705B00JSSDCAP FILM 4700PF 5% 2KVDC RAD |
2,937 |
|
Datasheet |
Radial | 4700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
MKS4D042205B00KSSDMKS 4 2.2 UF 100 VDC 6X15X26.5 P |
916 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
MKP1G034705G00KSSDMKP 10 0.47 UF 400 VDC 10.5X19X2 |
500 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | 0.748" (19.00mm) | PC Pins | - | General Purpose | - | - |
|
|
MKS0B041000F00KSSDMKS 02 1.0 UF 50 VDC 5.5X10X4.6 |
17,164 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.181" L x 0.217" W (4.60mm x 5.50mm) | 0.394" (10.00mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
|
|
MKS2B043301H00KSSDMKS 2 3.3 UF 50 VDC 5.5X11.5X7.2 |
1,405 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.453" (11.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|

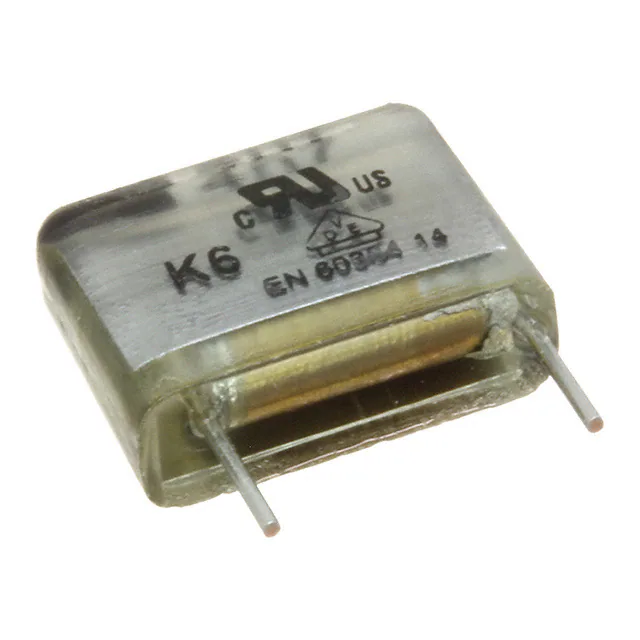

MPX21W1470FB00MSSDCAP FILM 4700PF 20% 275VAC RAD |
181 |
|
Datasheet |
Radial | 4700 pF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.197" W (13.50mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
MKS0C034700E00JSSDMKS 02 0.47 UF 63 VDC 4.6X9X4.6 |
13,238 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.354" (9.00mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
|
|
R49AR368000A1KCAP FILM SAFETY/EMI SUPP RAD |
9,259 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
X2Q3473KQ1B0180110050ES0X2 310VAC 47NF 10% P=15MM W18*H |
661 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.453" (11.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R60PN33305050KCAP FILM 0.33UF 10% 630VDC RAD |
5,446 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
FKP1U013305D00MSC9CAP FILM 3300PF 20% 2KVDC RAD |
397 |
|
Datasheet |
Radial | 3300 pF | ±20% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UBAF154MCAP FILM 0.15UF 20% 300VAC RADIA |
999 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP1F036805F00JSSDMKP 10 0.68 UF 250 VDC 8.5X18.5X |
876 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECH-U1H153GB5CAP FILM 0.015UF 2% 50VDC 1210 |
336 |
|
Datasheet |
1210 (3225 Metric) | 0.015 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
FKS3F021003A00JSSDCAP FILM 10000PF 5% 250VDC RAD |
6,000 |
|
Datasheet |
Radial | 10000 pF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.118" W (13.00mm x 3.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
ECQ-UAAF684S1CAP FILM 0.68UF 20% 275VAC RAD |
996 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
