Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H16153JVCAP FILM 0.015UF 5% 1.6KVDC RAD |
714 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.374" W (23.00mm x 9.50mm) | 0.768" (19.50mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
PME271YD5680MR30CAP FILM 0.068UF 20% 1KVDC RAD |
3,670 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 1.063" L x 0.394" W (27.00mm x 10.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
ECW-H16183JVCAP FILM 0.018UF 5% 1.6KVDC RAD |
125 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.413" W (23.00mm x 10.50mm) | 0.827" (21.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
B32524R6225K000CAP FILM 2.2UF 10% 400VDC RADIAL |
668 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECW-F6624JLCAP FILM 0.62UF 5% 630VDC RADIAL |
362 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.476" W (28.00mm x 12.10mm) | 0.795" (20.20mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|

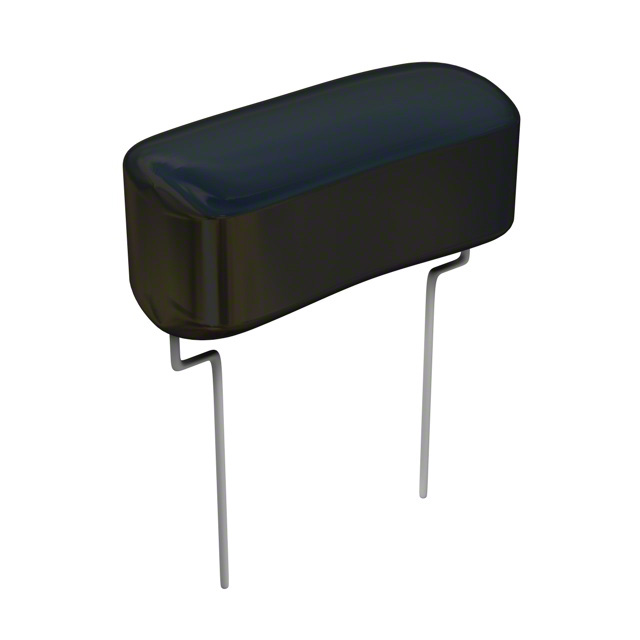

DPFF4P1J-FCAP FILM 0.1UF 5% 400VDC RADIAL |
357 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.299" L x 0.598" W (33.00mm x 15.20mm) | 0.598" (15.20mm) | PC Pins | 0.720" (18.30mm) | High Pulse, DV/DT | - | - |
|
R73PN31004000JCAP FILM 0.1UF 5% 630VDC RADIAL |
115 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
LDEID2680JA5N00CAP FILM 0.068UF 5% 250VDC 2220 |
5,771 |
|
Datasheet |
2220 (5750 Metric) | 0.068 µF | ±5% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.110" (2.80mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32653A3225J000CAP FILM 2.2UF 5% 250VDC RADIAL |
1,010 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
R76TR31004030JCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
232 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32674D8155K000CAP FILM 1.5UF 10% 875VDC RADIAL |
3,616 |
|
Datasheet |
Radial | 1.5 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | 14.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
C4AF9BU4150T1XKFILM, POWER, METALLIZED POLYPROP |
190 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
.JPG)
|
333PPB102KCAP FILM 0.033UF 10% 1KVDC RAD |
1,113 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|
BFC233660682CAP FILM 6800PF 20% 1KVDC RADIAL |
1,000 |
|
Datasheet |
Radial | 6800 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.197" W (12.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
FKP4U022206B00KSSDCAP FILM 0.022UF 10% 2KVDC RAD |
994 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 550V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75IR43304040JCAP FILM 3.3UF 5% 250VDC RADIAL |
942 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
ECW-F4105JBCAP FILM 1UF 5% 400VDC RADIAL |
2,626 |
|
Datasheet |
Radial | 1 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.102" L x 0.591" W (28.00mm x 15.00mm) | 0.925" (23.50mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
|
R4Y5N16805000KCAP FILM 500VAC Y1 6800PF RADIAL |
491 |
|
Datasheet |
Radial | 6800 pF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | - |
|
SMDTD03680XA00KT00CAP FILM 0.68UF 10% 63VAC 5040 |
163 |
|
Datasheet |
5040 (127102 Metric) | 0.68 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.402" W (12.70mm x 10.20mm) | 0.248" (6.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
ECW-FG1B405JACAP FILM 4UF 5% 1.1KVDC RADIAL |
140 |
|
Datasheet |
Radial | 4 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
