Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DME1P56K-FCAP FILM 0.56UF 10% 100VDC RAD |
400 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492" L x 0.217" W (12.50mm x 5.50mm) | 0.429" (10.90mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R53BN356050S0MCAP FILM 0.56UF 20% 800VDC RAD |
300 |
|
Datasheet |
Radial | 0.56 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.740" (18.80mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R76MN38205050JFILM, RADIAL, PULSE, DOUBLE META |
374 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
890334027012CSCAP FILM 1.2UF 10% 310VAC RADIAL |
284 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
MKP385E44740JKI2B0CAP FILM 0.47UF 5% 400VDC RAD |
137 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.394" W (31.00mm x 10.00mm) | 0.772" (19.60mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
890324027012CAP FILM 1.2UF 10% 275VAC RADIAL |
136 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FE2J225QDCAP FILM 2.2UF 10% 630VDC RADIAL |
590 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F161SL473K100VCAP FILM 0.047UF 10% 100VDC 2824 |
350 |
|
Datasheet |
2824 (7260 Metric) | 0.047 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.126" (3.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
BFC233920155CAP FILM 1.5UF 20% 630VDC RADIAL |
162 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
BFC247962513CAP FILM 0.051UF 5% 630VDC RAD |
1,382 |
|
Datasheet |
Radial | 0.051 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
MKS4O132205G00KSSDCAP FILM 0.22UF 10% 1KVDC RADIAL |
534 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 400V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
R53BI333050S0MCAP FILM 0.33UF 20% 800VDC RAD |
493 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.642" (16.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R60DI43304030KCAP FILM 3.3UF 10% 63VDC RADIAL |
764 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
|
R53BN333050S0MCAP FILM 0.33UF 20% 800VDC RAD |
450 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.642" (16.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
F339X246830MIM2T0CAP FILM 0.68UF 20% 630VDC RAD |
1,264 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
ECW-FE2J225P5CAP FILM 2.2UF 5% 630VDC RADIAL |
848 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32033A4823M000CAP FILM 0.082UF 20% 1KVDC RAD |
1,772 |
|
Datasheet |
Radial | 0.082 µF | ±20% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|

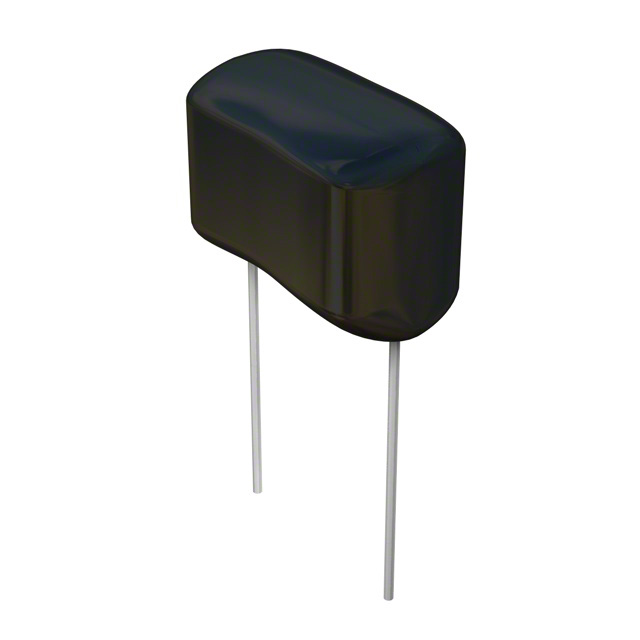

DMT2P1K-FCAP FILM 0.1UF 10% 250VDC RADIAL |
638 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.819" L x 0.354" W (20.80mm x 9.00mm) | 0.606" (15.40mm) | PC Pins | 0.669" (17.00mm) | General Purpose | - | - |
|
|
R53BN322050S0MCAP FILM 0.22UF 20% 800VDC RAD |
440 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.602" (15.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECW-U2124V16CAP FILM 0.12UF 5% 250VDC 2420 |
2,464 |
|
Datasheet |
2420 (6050 Metric) | 0.12 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.189" (4.80mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
