Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC233926105CAP FILM 1UF 20% 630VDC RADIAL |
2,679 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
DPPM20D33K-FCAP FILM 3300PF 10% 2KVDC RADIAL |
1,193 |
|
Datasheet |
Radial | 3300 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.984" L x 0.413" W (25.00mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.827" (21.00mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
B32674D4155J000CAP FILM 1.5UF 5% 450VDC RADIAL |
1,098 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 22.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
B32674D8684K000CAP FILM 0.68UF 10% 875VDC RAD |
993 |
|
Datasheet |
Radial | 0.68 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | 31.5 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|

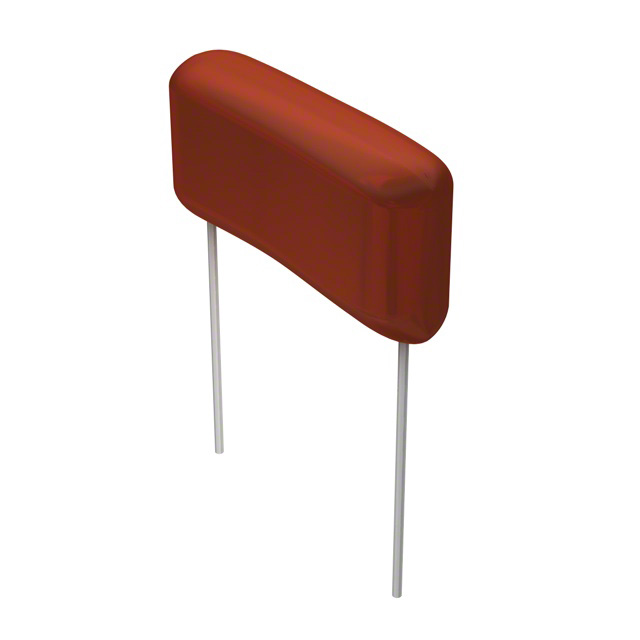

DPPM10S22K-FCAP FILM 0.022UF 10% 1KVDC RAD |
236 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 450V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.043" (26.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
ECW-FG70395KCAP FILM 3.3UF 700VDC RADIAL |
200 |
|
Datasheet |
Radial | 3.9 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
ECW-FE2W475PDCAP FILM 4.7UF 5% 450VDC RADIAL |
192 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.610" W (31.00mm x 15.50mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC247066332CAP FILM 3300PF 5% 400VDC RADIAL |
1,900 |
|
Datasheet |
Radial | 3300 pF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | Long Life |
|
C4AQULU4100A11JCAP FILM 1UF 5% 1.3KVDC RADIAL |
122 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 32.9 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.500" (12.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

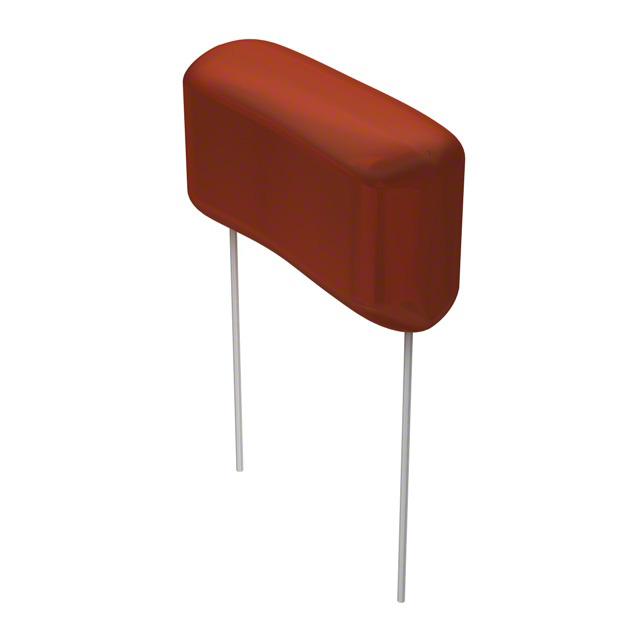

DPM2W1K-FCAP FILM 1UF 10% 250VDC RADIAL |
656 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
B32683A6683J189CAP FILM 0.068UF 5% 630VDC RAD |
102 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
ECH-U1124GC9CAP FILM 0.12UF 2% 100VDC 2820 |
4,480 |
|
Datasheet |
2820 (7150 Metric) | 0.12 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.146" (3.70mm) | Solder Pads | - | General Purpose | - | - |
|
R586N315050T0KCAP FILM 600VAC(X1) 0.15 UF 10% |
297 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.740" (18.80mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
890324026030CAP FILM 1.5UF 10% 275VAC RADIAL |
208 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
FCN2416A104K-D1CAP FILM 0.1UF 10% 100VDC 2416 |
6,000 |
|
Datasheet |
2416 (6041 Metric) | 0.1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.189" L x 0.236" W (4.80mm x 6.00mm) | 0.083" (2.10mm) | Solder Pads | - | General Purpose | - | - |
|
|
BFC233841103CAP FILM 10000PF 20% 800VDC RAD |
911 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
B32683A6154J000CAP FILM 0.15UF 5% 630VDC RADIAL |
693 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
ECW-FG2J305KCAP FILM 3UF 10% 630VDC RADIAL |
119 |
|
Datasheet |
Radial | 3 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
MKP1839347254CAP FILM 0.047UF 5% 250VDC AXIAL |
711 |
|
Datasheet |
Axial | 0.047 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.236" Dia x 0.551" L (6.00mm x 14.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
ECW-H6324HCCCAP FILM 0.32UF 3% 630VDC RADIAL |
563 |
|
Datasheet |
Radial | 0.32 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.571" W (20.70mm x 14.50mm) | 0.882" (22.40mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
