Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-U4823V17CAP FILM 0.082UF 5% 400VDC 3925 |
776 |
|
Datasheet |
3925 (9863 Metric) | 0.082 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.150" (3.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
BFC238360102CAP FILM 1000PF 5% 2KVDC RADIAL |
702 |
|
Datasheet |
Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
R46KR34704001MCAP FILM 0.47UF 20% 560VDC RAD |
376 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R75MN368050H3JCAP FILM 0.68UF 5% 400VDC RADIAL |
244 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 9.4 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R73TN2100SE00JCAP FILM 10000PF 5% 1.6KVDC RAD |
801 |
|
Datasheet |
Radial | 10000 pF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-FE2W225P8CAP FILM 2.2UF 5% 450VDC RADIAL |
445 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R73PI24704000JCAP FILM 0.047UF 5% 630VDC RAD |
413 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.402" (10.20mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
F17723102030CAP FILM 10000PF 10% 630VDC RAD |
379 |
|
Datasheet |
Radial | 10000 pF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
QXT2G103KRPTCAP FILM 10000PF 10% 400VDC RAD |
306 |
|
Datasheet |
Radial | 10000 pF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.748" L x 0.213" W (19.00mm x 5.40mm) | 0.567" (14.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R75PN33304030KCAP FILM 0.33UF 10% 630VDC RAD |
300 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
168224J50C-FCAP FILM 0.22UF 5% 50VDC RADIAL |
4,964 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.295" (7.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
ECH-U1563GC9CAP FILM 0.056UF 2% 100VDC 2416 |
3,455 |
|
Datasheet |
2416 (6041 Metric) | 0.056 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1563JC9CAP FILM 0.056UF 5% 100VDC 2416 |
2,420 |
|
Datasheet |
2416 (6041 Metric) | 0.056 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
B32912A5563M000CAP FILM 0.056 |
1,972 |
|
Datasheet |
Radial | 0.056 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
R60II41005030KCAP FILM 1UF 10% 250VDC RADIAL |
498 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|

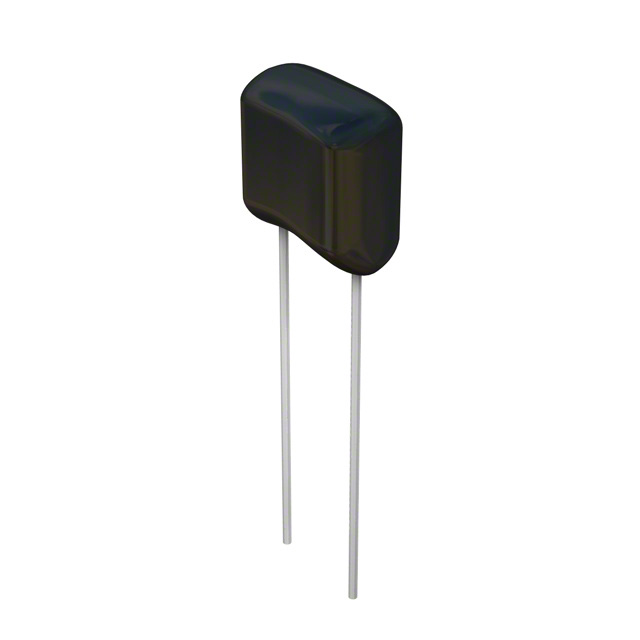

DME2P15K-FCAP FILM 0.15UF 10% 250VDC RAD |
3,011 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.484" (12.30mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
ECW-U2393V16CAP FILM 0.039UF 5% 250VDC 2416 |
2,288 |
|
Datasheet |
2416 (6041 Metric) | 0.039 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.091" (2.30mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
LDBAB3100JC5N0CAP FILM 0.1UF 5% 16VDC 1210 |
2,166 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.079" (2.00mm) | Solder Pads | - | General Purpose | - | - |
|
B32653A6334K289CAP FILM 0.33UF 10% 630VDC RAD |
1,741 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
F339X141033MF02W0CAP FILM 0.1UF 20% 800VDC RADIAL |
4,809 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
