Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCN1913A473K-E2CAP FILM 0.047UF 10% 100VDC 1913 |
396 |
|
Datasheet |
1913 (4833 Metric) | 0.047 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
ECH-U1393GC9CAP FILM 0.039UF 2% 100VDC 2416 |
2,567 |
|
Datasheet |
2416 (6041 Metric) | 0.039 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
FKP1G023304F00JSSDCAP FILM 0.033UF 5% 400VDC RAD |
2,400 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32523Q6105J000CAP FILM 1UF 5% 400VDC RADIAL |
2,107 |
|
Datasheet |
Radial | 1 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | - | - |
|

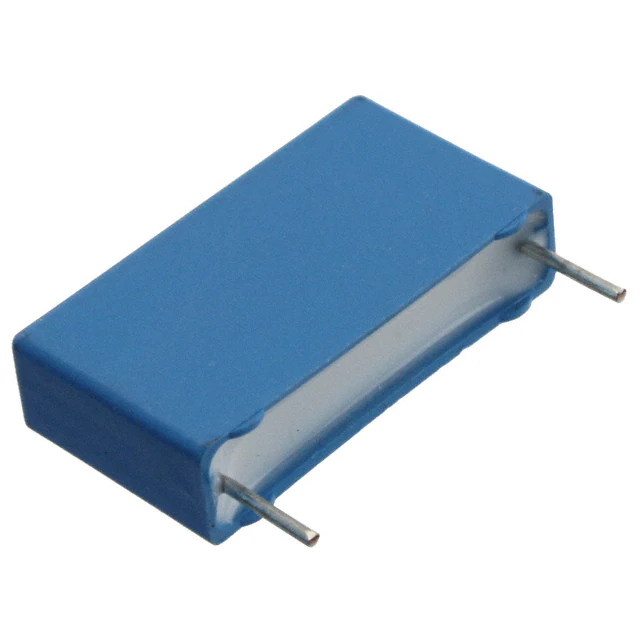

PHE840MD6220KD13R06L2CAP FILM 0.22UF 10% 760VDC RAD |
1,871 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-U4393V17CAP FILM 0.039UF 5% 400VDC 2820 |
1,465 |
|
Datasheet |
2820 (7150 Metric) | 0.039 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.142" (3.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
R60MI3470AA40JCAP FILM 0.47UF 5% 400VDC RADIAL |
895 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R413I24700000KCAP FILM 0.047UF 10% 1KVDC RAD |
702 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R53BI322050S0MCAP FILM 0.22UF 20% 800VDC RAD |
375 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.583" (14.80mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
R53BR41505000KCAP FILM 1.5UF 10% 800VDC RADIAL |
864 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.996" (25.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
BFC237018474CAP FILM 0.47UF 10% 63VDC RADIAL |
12,000 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
160104J250D-FCAP FILM 0.1UF 5% 250VDC RADIAL |
2,470 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
PFR5222J63J11L4BULKCAP FILM 2200PF 5% 63VDC RADIAL |
2,298 |
|
Datasheet |
Radial | 2200 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
160683J250C-FCAP FILM 0.068UF 5% 250VDC RAD |
730 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R60PN3330AA30JCAP FILM 0.33UF 5% 630VDC RADIAL |
130 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
R71PN4100AA30KCAP FILM 1UF 10% 630VDC RADIAL |
587 |
|
Datasheet |
Radial | 1 µF | ±10% | 275V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
R71VI415050H6KFILM, RADIAL, PULSE, SINGLE META |
350 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | 27 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
ECQ-E4684JFCAP FILM 0.68UF 5% 400VDC RADIAL |
1,000 |
|
Datasheet |
Radial | 0.68 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R60IN41504030KCAP FILM 1.5UF 10% 250VDC RADIAL |
970 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
R76PN315050H3JCAP FILM 0.15UF 5% 630VDC RAD |
901 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 17 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
