Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H12683JVCAP FILM 0.068UF 5% 1.25KVDC RAD |
1,000 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.492" W (28.00mm x 12.50mm) | 0.906" (23.00mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
PHE450RB5330JR06CAP FILM 0.033UF 5% 1.6KVDC RAD |
2,335 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
160104K100C-FCAP FILM 0.1UF 10% 100VDC RADIAL |
1,900 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|

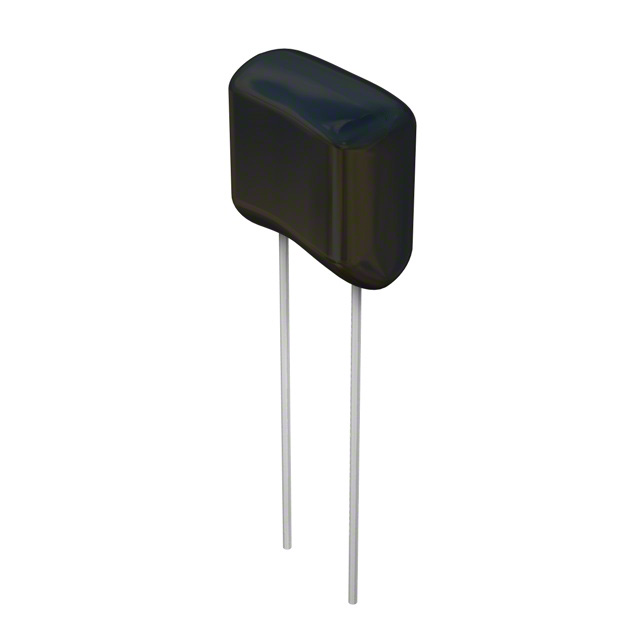

DME2P33K-FCAP FILM 0.33UF 10% 250VDC RAD |
1,196 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492" L x 0.276" W (12.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R474N322050A1MCAP FILM 0.22UF 20% 1KVDC RADIAL |
856 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R75MN3470AA30JCAP FILM 0.47UF 5% 400VDC RADIAL |
749 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R71MI41004030KCAP FILM 1UF 10% 420VDC RADIAL |
490 |
|
Datasheet |
Radial | 1 µF | ±10% | 220V | 420V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
BFC233922334CAP FILM 0.33UF 20% 630VDC RAD |
241 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
BFC233921223CAP FILM 0.022UF 20% 630VDC RAD |
1,022 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R46KR368000M1MCAP FILM 0.68UF 20% 560VDC RAD |
766 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
LDEID2470KA5N00CAP FILM 0.047UF 10% 250VDC 2220 |
1,932 |
|
Datasheet |
2220 (5750 Metric) | 0.047 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.091" (2.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32933A3334K189CAP FILM 0.33UF 10% 305VAC RAD |
5,324 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
ECW-FG2J155P1CAP FILM 1.5UF 5% 630VDC RADIAL |
474 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.472" W (27.00mm x 12.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
ECH-U1273GC9CAP FILM 0.027UF 2% 100VDC 1913 |
390 |
|
Datasheet |
1913 (4833 Metric) | 0.027 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
168103K100A-FCAP FILM 10000PF 10% 100VDC RAD |
5,999 |
|
Datasheet |
Radial | 10000 pF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
B32653A2822K000CAP FILM 8200PF 10% 2KVDC RADIAL |
2,020 |
|
Datasheet |
Radial | 8200 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
ECW-FD2J155JCAP FILM 1.5UF 5% 630VDC RADIAL |
797 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.406" W (25.30mm x 10.30mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC237021154CAP FILM 0.15UF 10% 100VDC RAD |
504 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
R76MR4100SE40KCAP FILM 1UF 10% 400VDC RADIAL |
2 |
|
Datasheet |
Radial | 1 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R413N2470DQ00MCAP FILM 0.047UF 20% 1KVDC RAD |
927 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
