Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4CAYUC2470AA1JCAP FILM 0.047UF 5% 3KVDC AXIAL |
430 |
|
Datasheet |
Axial | 0.047 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 25.7 mOhms | -40°C ~ 85°C | Through Hole | 0.748" Dia x 1.732" L (19.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
PHC1405100KRCAP FILM 10UF 10% 400VDC AXIAL |
193 |
|
Datasheet |
Axial | 10 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 0.984" Dia x 2.087" L (25.00mm x 53.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
C4AQNBW5120M3FJCAP FILM 12UF 5% 1KVDC RADIAL |
185 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 6.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C878BF24500AA1JCAP FILM 5UF 5% 470VAC RADIAL |
301 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
|
C274AA24350AA0JCAP FILM 3.5UF 5% 470VAC RADIAL |
347 |
|
Datasheet |
Radial, Can | 3.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
C4AQQLW5100A36JCAP FILM 10UF 5% 1.1KVDC RADIAL |
126 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 7.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 0.953" (24.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQSBW4600A3FJCAP FILM 6UF 5% 1.5KVDC RADIAL |
170 |
|
Datasheet |
Radial - 4 Leads | 6 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C878BF34250SA4JCAP FILM 2.5UF 5% 470VAC RADIAL |
397 |
|
Datasheet |
Radial, Can | 2.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
MKS4F051006G00KSSDCAP FILM 10UF 10% 250VDC RADIAL |
168 |
|
Datasheet |
Radial | 10 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

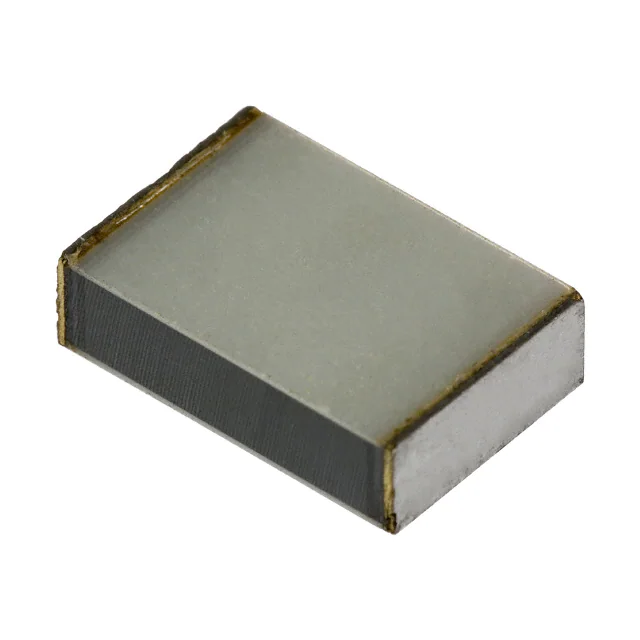

ECW-U2105KCZCAP FILM 1UF 10% 250VDC 6039 |
1,692 |
|
Datasheet |
6039 (1510 Metric) | 1 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.598" L x 0.394" W (15.20mm x 10.00mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
C4AF1BU4750A12KCAP FILM 7.5UF 10% 250VAC RADIAL |
613 |
|
Datasheet |
Radial | 7.5 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
 Series Straight 23x17.jpg)
|
ECW-F2685JACAP FILM 6.8UF 5% 250VDC RADIAL |
742 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.701" W (23.80mm x 17.80mm) | 0.984" (25.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
R60MR51005040KCAP FILM 10UF 10% 400VDC RADIAL |
178 |
|
Datasheet |
Radial | 10 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R75RR356050H4JCAP FILM 0.56UF 5% 1.25KVDC RAD |
284 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5.7 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
225P47492YD3CAP FILM 0.47UF 10% 200VDC RAD |
963 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 140V | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 1.250" L x 0.500" W (31.75mm x 12.70mm) | 0.831" (21.10mm) | PC Pins | 0.720" (18.30mm) | Audio; DC Link, DC Filtering | - | - |
|
|
R75UW356050H4JCAP FILM 0.56UF 5% 2KVDC RADIAL |
487 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.7 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PSB1853470KHSDCAP FILM 0.47UF 10% 850VDC RAD |
446 |
|
Datasheet |
Radial - 4 Leads | 0.47 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
715P153512LD3CAP FILM 0.015UF 5% 1.2KVDC RAD |
268 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 475V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.280" Dia x 0.701" L (7.10mm x 17.80mm) | 0.591" (15.00mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C4AEJBU4400A1XJCAP FILM 4UF 5% 700VDC RADIAL |
234 |
|
Datasheet |
Radial | 4 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 12.9 mOhms | -40°C ~ 85°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
MKP1848C53012JK2CAP FILM 3UF 5% 1.2KVDC RADIAL |
166 |
|
Datasheet |
Radial | 3 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
