Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1839447254CAP FILM 0.47UF 5% 250VDC AXIAL |
2,672 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.354" Dia x 1.043" L (9.00mm x 26.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
715P1535800LA3CAP FILM 0.015UF 5% 1.8KVDC RAD |
1,354 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 800V | 1800V (1.8kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.669" Dia x 1.122" L (17.00mm x 28.50mm) | 0.969" (24.60mm) | PC Pins | 0.886" (22.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
R71PR447050H6KFILM, RADIAL, PULSE, SINGLE META |
784 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
WMF2D1K-FCAP FILM 1000PF 10% 250VDC AXIAL |
500 |
|
Datasheet |
Axial | 1000 pF | ±10% | - | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.189" Dia x 0.563" L (4.80mm x 14.30mm) | - | PC Pins | - | General Purpose | - | - |
|
B32924H3335MCAP FILM 3.3UF 20% 630VDC RADIAL |
3,363 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
R60DN51005030MCAP FILM 10UF 20% 63VDC RADIAL |
942 |
|
Datasheet |
Radial | 10 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
684MPW630KCAP FILM 0.68UF 10% 630VDC AXIAL |
222 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 260 mOhms | -55°C ~ 105°C | Through Hole | 0.866" Dia x 1.339" L (22.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
C4AQIBU4800M11JCAP FILM 8UF 5% 800VDC RADIAL |
216 |
|
Datasheet |
Radial | 8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.3 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
B32023A3394M000CAP FILM 0.39UF 20% 1.5KVDC RAD |
1,468 |
|
Datasheet |
Radial | 0.39 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
B32774X1405K000FILM CAP MKP DC FILTERING - 1200 |
715 |
|
Datasheet |
Radial | 4 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 11.5 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
R71VR447050H6KFILM, RADIAL, PULSE, SINGLE META |
288 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
F862FY475K310ZV054CAP FILM 4.7UF 10% 630VDC RADIAL |
118 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECQ-E1685KFCAP FILM 6.8UF 10% 100VDC RADIAL |
112 |
|
Datasheet |
Radial | 6.8 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R474R347050A1KCAP FILM 0.47UF 10% 1KVDC RADIAL |
2,170 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

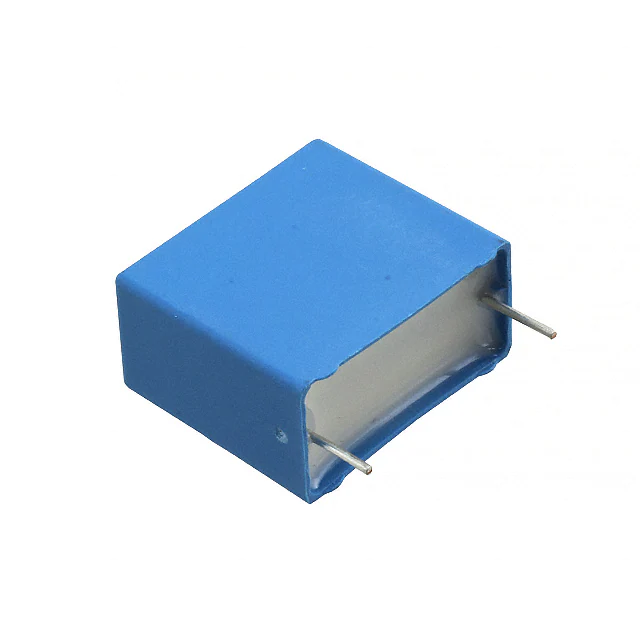

PHE840MF6470MF11R06L2CAP FILM 0.47UF 20% 760VDC RAD |
256 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R413W368050T0KCAP FILM 0.68UF 10% 1.5KVDC RAD |
241 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
B32774X8126K000CAP FILM 12UF 10% 800VDC RADIAL |
229 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32524Q6475KCAP FILM 4.7UF 10% 400VDC RADIAL |
125 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | - | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
SMR5474J50J04L16.5CBULKCAP FILM 0.47UF 5% 50VDC RADIAL |
1,738 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
SMR5474J50J04L4BULKCAP FILM 0.47UF 5% 50VDC RADIAL |
1,527 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
