Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WMF2S22K-FCAP FILM 0.022UF 10% 250VDC AXIA |
865 |
|
Datasheet |
Axial | 0.022 µF | ±10% | - | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.260" Dia x 0.685" L (6.60mm x 17.40mm) | - | PC Pins | - | General Purpose | - | - |
|
WMF1S1K-FCAP FILM 10000PF 10% 100VDC AXIA |
841 |
|
Datasheet |
Axial | 10000 pF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.201" Dia x 0.563" L (5.10mm x 14.30mm) | - | PC Pins | - | General Purpose | - | - |
|

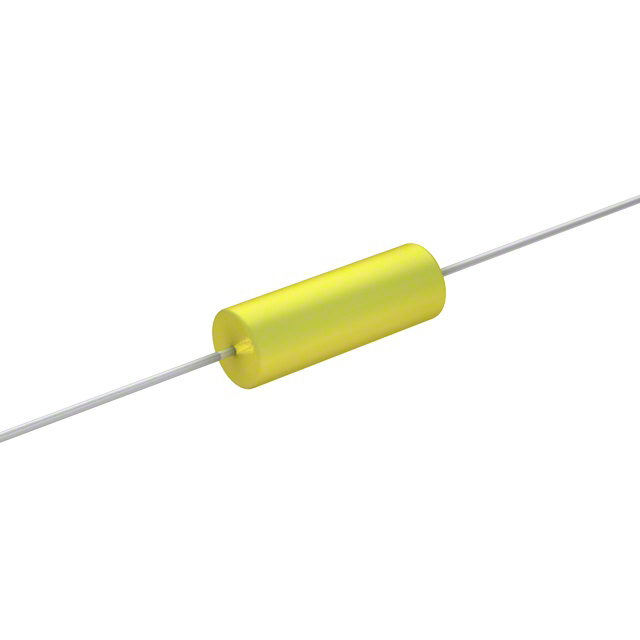

WMC2S1K-FCAP FILM 10000PF 250VDC AXIAL |
741 |
|
Datasheet |
Axial | 10000 pF | ±10% | 125V | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185" Dia x 0.531" L (4.70mm x 13.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
B32774H8475K000CAP FILM 4.7UF 10% 700VDC RAD |
363 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 15.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
R75GR44704030JCAP FILM 4.7UF 5% 160VDC RAD |
193 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F17724222000CAP FILM 0.22UF 10% 630VDC RAD |
189 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32674D4335K000CAP FILM 3.3UF 10% 450VDC RADIAL |
105 |
|
Datasheet |
Radial | 3.3 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 10.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
ECW-H12823JVCAP FILM 0.082UF 5% 1.25KVDC RAD |
716 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.551" W (28.00mm x 14.00mm) | 0.945" (24.00mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
|
F17724222030CAP FILM 0.22UF 10% 630VDC RAD |
1,302 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R76PR3470SE30JCAP FILM 0.47UF 5% 630VDC RADIAL |
496 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
KP1830222631CAP FILM 2200PF 1% 630VDC RADIAL |
404 |
|
Datasheet |
Radial | 2200 pF | ±1% | 250V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F339X142248KI02W0CAP FILM 0.22UF 10% 1KVDC RADIAL |
1,242 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
ECW-H16473JVCAP FILM 0.047UF 5% 1.6KVDC RAD |
913 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.591" W (28.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
715P22396KA3CAP FILM 0.022UF 10% 600VDC RAD |
824 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.480" Dia x 0.902" L (12.20mm x 22.90mm) | 0.772" (19.60mm) | PC Pins | 0.689" (17.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

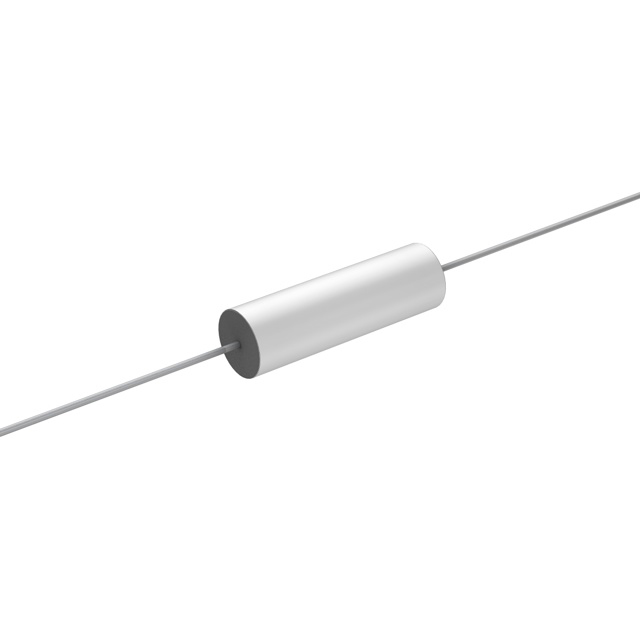

WMF1S47K-FCAP FILM 0.047UF 10% 100VDC AXIA |
760 |
|
Datasheet |
Axial | 0.047 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.256" Dia x 0.811" L (6.50mm x 20.60mm) | - | PC Pins | - | General Purpose | - | - |
|
FCN2820G473J-ZCAP FILM 0.047UF 5% 400VDC 2820 |
666 |
|
Datasheet |
2820 (7150 Metric) | 0.047 µF | ±5% | - | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.161" (4.10mm) | Solder Pads | - | General Purpose | - | - |
|
|
R76QR3220SE30JCAP FILM 0.22UF 5% 1KVDC RADIAL |
455 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
715P10352JD3CAP FILM 10000PF 5% 200VDC RAD |
446 |
|
Datasheet |
Radial | 10000 pF | ±5% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.252" Dia x 0.701" L (6.40mm x 17.80mm) | 0.563" (14.30mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
715P33354KD3CAP FILM 0.033UF 5% 400VDC RAD |
2,980 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.382" Dia x 0.902" L (9.70mm x 22.90mm) | 0.693" (17.60mm) | PC Pins | 0.374" (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C4AF3BU4100T1YKFILM, POWER, METALLIZED POLYPROP |
359 |
|
Datasheet |
Radial | 1 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 9.8 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.110" (28.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
