Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QXK2E154KTP7ZHFLCAP FILM 0.15UF 10% 250VDC RAD |
795 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.217" W (15.50mm x 5.50mm) | 0.398" (10.10mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
 Series Straight 26x13.jpg)
|
ECW-FA2J155JCAP FILM 1.5UF 5% 630VDC RADIAL |
273 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
 Series Style D 18x7.jpg)
|
ECW-F2684JAQCAP FILM 0.68UF 5% 250VDC RADIAL |
263 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713" L x 0.291" W (18.10mm x 7.40mm) | 0.807" (20.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R53BI33905000KCAP FILM 0.39UF 10% 800VDC RAD |
207 |
|
Datasheet |
Radial | 0.39 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.760" (19.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
B32653A0683K000CAP FILM 0.068UF 10% 1KVDC RAD |
4,251 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
ECH-U1H103GB5CAP FILM 10000PF 2% 50VDC 1206 |
3,863 |
|
Datasheet |
1206 (3216 Metric) | 10000 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
PME271YA4470MR19T0CAP FILM 4700PF 20% 1KVDC RADIAL |
3,511 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.531" L x 0.201" W (13.50mm x 5.10mm) | 0.413" (10.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
R75II368050H8JCAP FILM 0.68UF 5% 250VDC RADIAL |
1,363 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R53BI268050S0MCAP FILM 0.068UF 20% 800VDC RAD |
992 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.445" (11.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
LDBCA2100JC5N0CAP FILM 10000PF 5% 50VDC 1206 |
805 |
|
Datasheet |
1206 (3216 Metric) | 10000 pF | ±5% | 40V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
ECH-U1C823JB5CAP FILM 0.082UF 5% 16VDC 1210 |
650 |
|
Datasheet |
1210 (3225 Metric) | 0.082 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|

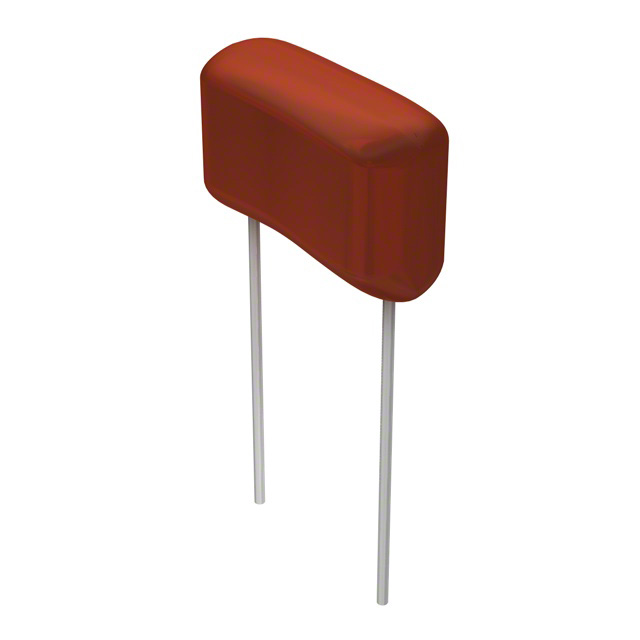

DPP6D47K-FCAP FILM 4700PF 10% 630VDC RAD |
643 |
|
Datasheet |
Radial | 4700 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.768" L x 0.315" W (19.50mm x 8.00mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Low ESR |
|
R463N410040N2MCAP FILM 1UF 20% 630VDC RAD |
620 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R60IN41004030KCAP FILM 1UF 10% 250VDC RADIAL |
452 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
ECQ-UBAF224KCAP FILM 0.22UF 10% 300VAC RADIA |
316 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.433" W (18.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
FCP1206C473J-H3CAP FILM 0.047UF 5% 16VDC 1206 |
3,630 |
|
Datasheet |
1206 (3216 Metric) | 0.047 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching | - | - |
|
SMDTC03470QA00MP00CAP FILM 0.47UF 20% 40VAC 2220 |
2,568 |
|
Datasheet |
2220 (5750 Metric) | 0.47 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.201" W (5.70mm x 5.10mm) | 0.150" (3.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
R76TI22204040JCAP FILM 0.022UF 5% 1.6KVDC RAD |
1,129 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60MN34704030KCAP FILM 0.47UF 10% 400VDC RAD |
958 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
ECH-U1103JC9CAP FILM 10000PF 5% 100VDC 1913 |
925 |
|
Datasheet |
1913 (4833 Metric) | 10000 pF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
