Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32652A6224J189CAP FILM 0.22UF 5% 630VDC RADIAL |
3,990 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
MKX2AW33304J00KSSDCAP FILM 0.33UF 10% 630VDC RAD |
2,198 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32652A6334K000CAP FILM 0.33UF 10% 630V RADIAL |
2,015 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
SMR5103J50J01L4BULKCAP FILM 10000PF 5% 50VDC RADIAL |
1,961 |
|
Datasheet |
Radial | 10000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
B32922H3474MCAP FILM 0.47UF 20% 630VDC RAD |
746 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
R73UI1100SE00JCAP FILM 1000PF 5% 2KVDC RADIAL |
727 |
|
Datasheet |
Radial | 1000 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76QI22204040JCAP FILM 0.022UF 5% 1KVDC RADIAL |
531 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76PN31004030JCAP FILM 0.1UF 5% 630VDC RADIAL |
488 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-H12222JVCAP FILM 2200PF 5% 1.25KVDC RAD |
324 |
|
Datasheet |
Radial | 2200 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
QXK2G224KTPTZHCAP FILM 0.22UF 10% 400VDC RAD |
274 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.303" W (20.50mm x 7.70mm) | 0.547" (13.90mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
 Series.jpg)
|
ECW-FE2W225KACAP FILM 2.2UF 10% 450VDC RADIAL |
133 |
|
Datasheet |
Radial | 2.2 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECH-U1H472GB5CAP FILM 4700PF 2% 50VDC 1206 |
205,536 |
|
Datasheet |
1206 (3216 Metric) | 4700 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-U2123KC9CAP FILM 0.012UF 10% 250VDC 1913 |
12,337 |
|
Datasheet |
1913 (4833 Metric) | 0.012 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|

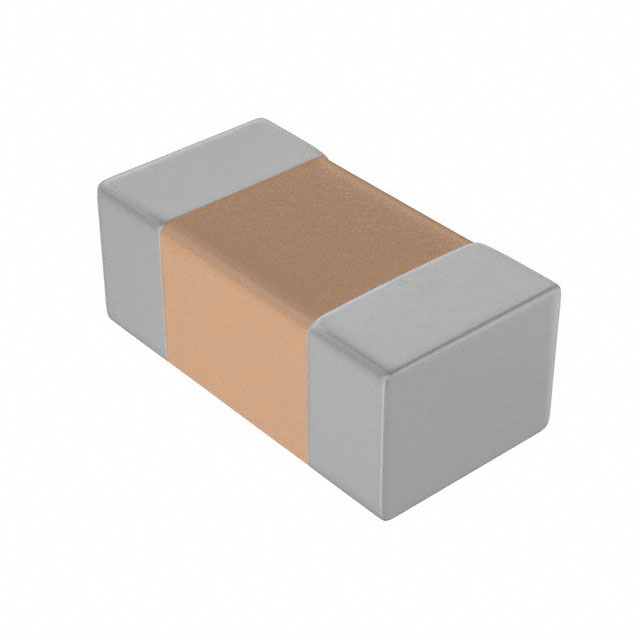

LDBAA2470JC5N0CAP FILM 0.047UF 5% 16VDC 1206 |
8,940 |
|
Datasheet |
1206 (3216 Metric) | 0.047 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
MKT1820510255CAP FILM 1UF 10% 250VDC RADIAL |
4,499 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering | - | - |
|

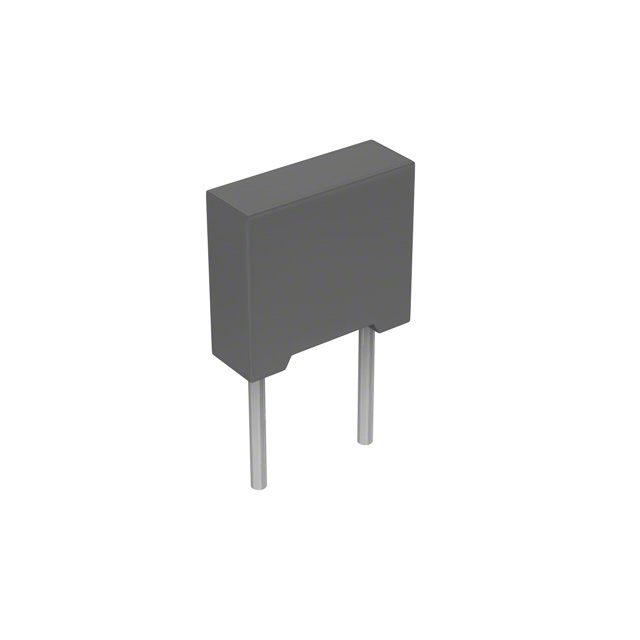

185104J63RAA-FCAP FILM 0.1UF 5% 63VDC RADIAL |
4,068 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
B32652A0473J189CAP FILM 0.047UF 5% 1KVDC RADIAL |
2,866 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
B81123C1472M026CAP FILM 4700PF 20% 500VAC RAD |
1,918 |
|
Datasheet |
Radial | 4700 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins - Long Leads | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | - |
|
104MPR630KCAP FILM 0.1UF 10% 630VDC RADIAL |
114 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | Low ESR |
|
PFR5332H100J12L4BULKCAP FILM 3300PF 2.5% 100VDC RAD |
724 |
|
Datasheet |
Radial | 3300 pF | ±2.5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
