Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC233925104CAP FILM 0.1UF 20% 630VDC RADIAL |
1,294 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECW-H12562JVCAP FILM 5600PF 5% 1.25KVDC RAD |
926 |
|
Datasheet |
Radial | 5600 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-HC3F562JQCAP FILM 5600PF 5% 3KVDC RADIAL |
802 |
|
Datasheet |
Radial | 5600 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.283" W (25.80mm x 7.20mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
150473K250BBCAP FILM 0.047UF 250VDC AXIAL |
332 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
R413I24704000MCAP FILM 0.047UF 20% 1KVDC RAD |
315 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R46KI382045P0MCAP FILM 0.82UF 20% 560VDC RAD |
262 |
|
Datasheet |
Radial | 0.82 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32522C1155J000CAP FILM 1.5UF 5% 100VDC RADIAL |
173 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
BFC237012154CAP FILM 0.15UF 5% 63VDC RADIAL |
9,346 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
FKP1T014705D00KSSDCAP FILM 4700PF 10% 1.6KVDC RAD |
2,509 |
|
Datasheet |
Radial | 4700 pF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32522C0225K000CAP FILM 2.2UF 10% 63VDC RADIAL |
2,043 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | - | - |
|
F862BY474K310ZCAP FILM 0.47UF 10% 630VDC RAD |
2,004 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECW-HC3F822JCAP FILM 8200PF 5% 3KVDC RADIAL |
988 |
|
Datasheet |
Radial | 8200 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.295" W (25.80mm x 7.50mm) | 0.602" (15.30mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
BFC233910334CAP FILM 0.33UF 10% 630VDC RAD |
957 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

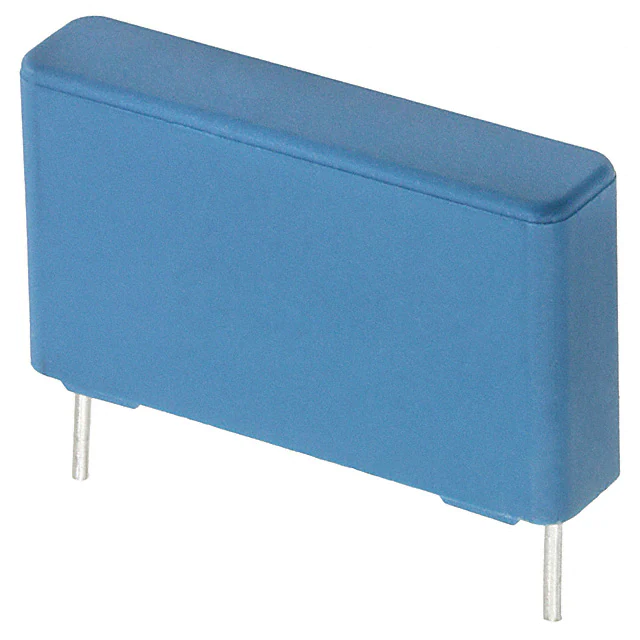

B32673P6474K000CAP FILM 0.47UF 10% 630VDC RAD |
731 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Power Factor Correction (PFC) | - | - |
|
R46KN368040H1MCAP FILM 0.68UF 20% 560VDC RAD |
688 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
MMK15105J100B04L4BULKCAP FILM 1UF 5% 100VDC RADIAL |
153 |
|
Datasheet |
Radial | 1 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
LDEIA1100KA0N00CAP FILM 1000PF 10% 250VDC 1206 |
9,993 |
|
Datasheet |
1206 (3216 Metric) | 1000 pF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
MKS0F026800E00KSSDCAP FILM 0.068UF 10% 250VDC RAD |
9,267 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.354" (9.00mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
|
ECW-U2332V16CAP FILM 3300PF 5% 250VDC 1913 |
8,406 |
|
Datasheet |
1913 (4833 Metric) | 3300 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1U022205D00KSSDCAP FILM 0.022UF 10% 2KVDC RAD |
6,252 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
