FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM120HRM052NGMOSFET 4N-CH 1200V/700V 472A |
5,419 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1200V (1.2kV), 700V | 472A (Tc), 442A (Tc) | 5.2mOhm @ 240A, 20V, 4.8mOhm @ 160A, 20V | 2.8V @ 18mA, 2.4V @ 16mA | 1392nC @ 20V, 860nC @ 20V | 18100pF @ 1000V, 18000pF @ 700V | 1.846kW (Tc), 1.161kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
FS03MR12A7MA2BHPSA1MOSFET 6N-CH 1200V 310A |
8,397 |
|
Datasheet |
HybridPACK™ | Module | Box | Active | Silicon Carbide (SiC) | 6 N-Channel | Silicon Carbide (SiC) | 1200V (1.2kV) | 310A | 2.54mOhm @ 310A, 18V | 4.55V @ 120mA | 870nC @ 18V | 25900pF @ 750V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
CAB003M09DM3MOSFET 2N-CH 900V 518A MODULE |
1 |
|
Datasheet |
- | Module | Bulk | Active | SiCFET (Silicon Carbide) | 2 N-Channel (Half Bridge) | - | 900V | 518A (Tc) | 3.25mOhm @ 400A, 15V | 3.5V @ 130mA | 840nC @ 15V | 20.4pF @ 900V | 1.163kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|

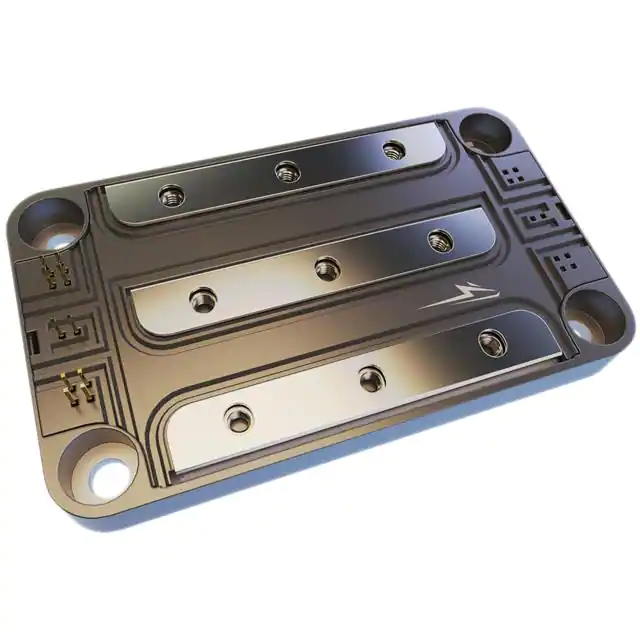

CAR600M12HN6MOSFET 2N-CH 1200V 908A MODULE |
1 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 908A (Tc) | - | - | - | 45300pF @ 0V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
|
CAR600M17HN6MOSFET 2N-CH 1700V 986A MODULE |
7,731 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1700V (1.7kV) | 986A (Tc) | - | - | - | 55700pF @ 0V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
|
FF4000UXTR33T2M1BPSA1XHP HV |
3,462 |
|
Datasheet |
XHP™2 | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 3300V (3.3kV) | 500A (Tc) | 4.8mOhm @ 500A, 15V | 5.55V @ 450mA | 2500nC @ 15V | 101000pF @ 1800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | AG-XHP2K17 |
|
|
FF2000UXTR33T2M1BPSA1MOSFET 2N-CH 3300V 9AG-XHP2K33 |
1 |
|
Datasheet |
CoolSiC™ | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 3300V (3.3kV) | 925A (Tc) | 2.4mOhm @ 1kA, 15V | 5.55V @ 900mA | 5000nC @ 15V | 203000pF @ 1.8kV | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | AG-XHP2K33 |
|
|
SI6303KDWS-TPMOSFET 2N-CH 30V 0.5A SOT-363S |
8,117 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 500mA (Ta) | 500mOhm @ 500mA, 4.5V | 1.5V @ 250µA | 0.55nC @ 4.5V | 34pF @ 25V | 300mW (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363S |
|
|
DMN31D5UDR4-7MOSFET 2N-CH 30V 0.5A 6DFN |
4,201 |
|
- |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 500mA (Ta) | 1.5Ohm @ 100mA, 4.5V | 900mV @ 250µA | 50pC @ 4.5V | 22.2pF @ 15V | 370mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1010-6 (Type UXC) |
|
|
DMN31D5UDR4-7RMOSFET 2N-CH 30V 0.5A 6DFN |
2,654 |
|
- |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 500mA (Ta) | 1.5Ohm @ 100mA, 4.5V | 900mV @ 250µA | 50pC @ 4.5V | 22.2pF @ 15V | 370mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1010-6 (Type UXC) |
|
|
2N7002KDW-13PMOSFET 2N-CH 60V 0.34A SOT363 |
6,667 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 60V | 340mA (Ta) | 3Ohm @ 500mA, 10V | 2.5V @ 1mA | 880pC @ 10V | 16pF @ 10V | 300mW (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
DMN31D5UDW-13MOSFET 2N-CH 30V 0.43A SOT363 |
7,374 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 430mA (Ta) | 1.5Ohm @ 100mA, 4.5V | 900mV @ 250µA | 0.3nC @ 4.5V | 15.4pF @ 15V | 330mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
DMP32D9UDAQ-7BMOSFET 2P-CH 30V 0.22A 6DFN |
6,870 |
|
Datasheet |
- | 6-SMD, No Lead | Bulk | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 220mA (Ta) | 5Ohm @ 100mA, 4.5V | 1V @ 250µA | 350nC @ 4.5V | 21.8pF @ 15V | 360mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN0806-6 |
|
|
DMC31D5UDAQ-7BMOSFET N/P-CH 30V 0.4A 6DFN |
2,226 |
|
Datasheet |
- | 6-SMD, No Lead | Bulk | Active | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 30V | 400mA (Ta), 220mA (Ta) | 1.5Ohm @ 100mA, 4.5V, 5Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.38nC @ 4.5V, 0.35nC @ 4.5V | 22.6pF @ 15V, 21.8pF @ 15V | 370mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN0806-6 |
|
|
DMN31D5UDAQ-7BMOSFET 2N-CH 30V 0.4A 6DFN |
4,523 |
|
Datasheet |
- | 6-SMD, No Lead | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 400mA (Ta) | 1.5Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.38nC @ 4.5V | 22.6pF @ 15V | 370mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN0806-6 |
|
|
DMP22D5UDA-7BMOSFET 2P-CH 20V 0.35A 6DFN |
5,937 |
|
Datasheet |
- | 6-SMD, No Lead | Bulk | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 350mA (Ta) | 1.9Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.3nC @ 4.5V | 17pF @ 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN0806-6 |
|
BSS138DWK-13MOSFET 2N-CH 50V 0.31A SOT363 |
6,118 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 50V | 310mA (Ta) | 2.6Ohm @ 200mA, 10V | 1.5V @ 250µA | 0.8nC @ 10V | 22pF @ 25V | 330mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
DMN61D9UDWQ-13MOSFET 2N-CH 60V 0.318A SOT363 |
2,778 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 318mA (Ta) | 2Ohm @ 50mA, 5V | 1V @ 250µA | 0.6nC @ 4.5V | 39pF @ 30V | 370mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
|
DMN3401LV-13MOSFET 2N-CH 30V 0.8A SOT563 |
9,535 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 800mA (Ta) | 400mOhm @ 590mA, 10V | 1.6V @ 100µA | 1.2nC @ 10V | 50pF @ 15V | 490mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
|
DMP31D7LV-13MOSFET 2P-CH 30V 0.62A SOT563 |
5,342 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel | - | 30V | 620mA (Ta) | 900mOhm @ 420mA, 10V | 2.6V @ 250µA | 0.8nC @ 10V | 19pF @ 15V | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
FET, MOSFET Arrays Electronic Components
Explore FET, MOSFET Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
