Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVE-T23AH516BROTARY ENCODER MECHANICAL 16PPR |
59 |
|
Datasheet |
- | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | - | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

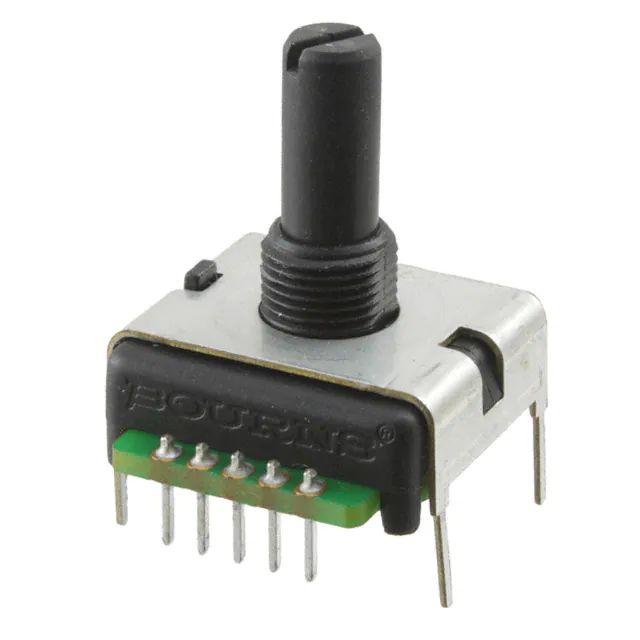

EAW0J-B24-BE0128LROTARY ENCODER MECHANICAL 128PPR |
53 |
|
Datasheet |
ACE™ | Tray | Active | Not Verified | Mechanical | Binary (Absolute) | 128 | - | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
EPS1D-F19-BD0024LROTARY ENCODER MECHANICAL 24PPR |
95 |
|
Datasheet |
EPS | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 4.8mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
HEDS-9701#F54ROTARY ENCODER OPTICAL 256PPR |
73 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
EM14R1D-R20-L032NROTARY ENCODER OPTICAL 32PPR |
75 |
|
Datasheet |
EM14 | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
REC16M25-20116MM MANUAL ENCODER, SINGLE SHAF |
37 |
|
Datasheet |
REC16M | Box | Active | Not Verified | Optical | Voltage | 25 | 5V | 6mm Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 2M | - | - |
|
C14D32P-A3P15 MM, 32 PPR, 6.35 MM PLASTIC S |
31 |
|
Datasheet |
C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
62AG11-L0-PROTARY ENCODER OPTICAL 32PPR |
77 |
|
Datasheet |
62AG | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
62AG11-L5-PROTARY ENCODER OPTICAL 32PPR |
28 |
|
Datasheet |
62AG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
62SG15-L5-RACROTARY ENCODER OPTICAL 24PPR |
12 |
|
Datasheet |
62SG | Bulk | Active | Not Verified | Incremental | Gray Code (Absolute) | 24 | 5V | 6.32mm Dia Flatted End | Yes | Yes | Panel Mount | User Selectable | PC Pin | 1M | - | - |
|
25LB45-QROTARY ENCODER MECHANICAL 8PPR |
18 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
EM14R0D-R20-L032NROTARY ENCODER OPTICAL 32PPR |
81 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
EM14A0D-B28-L064NROTARY ENCODER OPTICAL 64PPR |
24 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14R0D-R20-L032SROTARY ENCODER OPTICAL 32PPR |
15 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

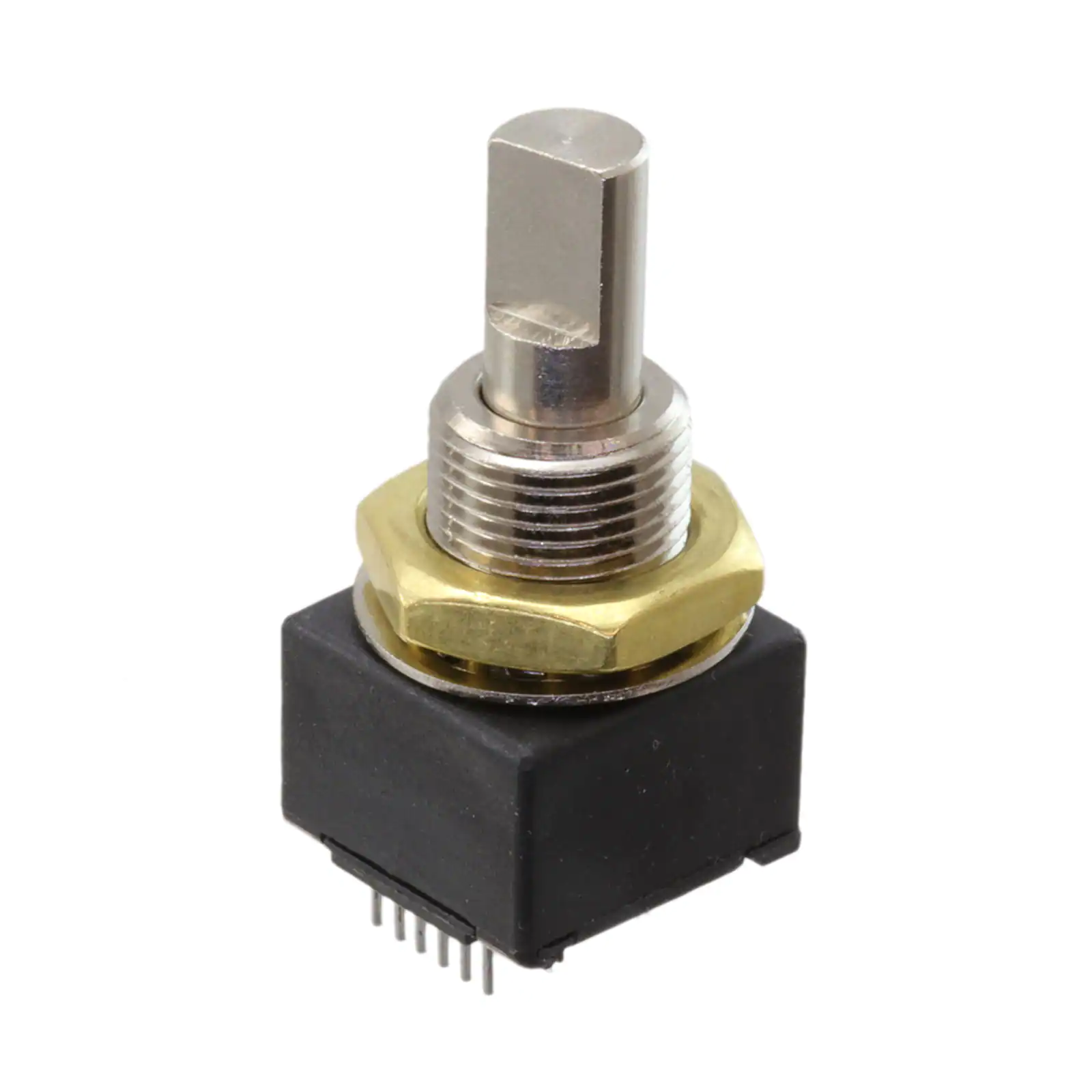

EM14R1D-M20-L032SROTARY ENCODER OPTICAL 32PPR |
95 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
AMT11A3S-VKIT, AMT11A3S, INCREMENTAL ENCOD |
85 |
|
Datasheet |
AMT11A | Box | Active | Not Verified | Capacitive, Incremental | Voltage | - | 4.5V ~ 5.5V | - | No | No | Chassis Mount | Right Angle | Connector | - | - | - |
|
ENC1J-D20-L00128LROTARY ENCODER OPTICAL 128PPR |
34 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/8" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
EMS22P50-B28-LS6ROTARY ENCODER MAGNETIC 1024PPR |
33 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | PWM | 1024 | 5V | 1/4" Dia Round End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
513374-12-CROTARY ENCODER MECHANICAL 12PPR |
11 |
|
Datasheet |
51 | Bulk | Active | Not Verified | Mechanical | BCD (Absolute) | 12 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
|
AMT11A3Q-VKIT, AMT11A3Q, INCREMENTAL ENCOD |
32 |
|
Datasheet |
AMT11A | Box | Active | Not Verified | Capacitive, Incremental | Quadrature Line Driver (Incremental) | - | 4.5V ~ 5.5V | - | No | No | Chassis Mount | Right Angle | Connector | - | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
