Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
62V11-02-PROTARY ENCODER OPTICAL 32PPR |
24 |
|
Datasheet |
62V | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 3.3V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
ENS1J-B28-L00128LROTARY ENCODER OPTICAL 128PPR |
24 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
HEDS-5540#A11ROTARY ENCODER OPTICAL 500PPR |
4 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
61R64ROTARY ENCODER OPTICAL 64PPR |
7 |
|
Datasheet |
61R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
TMCS-20-8K-KITROTARY ENCODER OPTICAL 8192PPR |
10 |
|
Datasheet |
TMCS-20 | Bulk | Active | Not Verified | Optical | TTL | 8192 | 4.5V ~ 5.5V | Shaft | No | No | Chassis Mount | Vertical | Pin Header | - | - | - |
|
TMCS-40-10K-KITROTARY ENCODER OPTICAL 10000PPR |
10 |
|
Datasheet |
TMCS-40 | Bulk | Active | Not Verified | Optical | TTL | 10000 | 4.5V ~ 5.5V | Shaft | No | No | Chassis Mount | Vertical | Pin Header | - | - | - |
|
|
AR25-AS1P-A12TPCBA CW 6MMTHRU H,SSI/485/ESL |
10 |
|
- |
- | Tray | Active | Not Verified | Optical | Digital, SSI | - | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
TMCS-28-10K-KITROTARY ENCODER OPTICAL 10000PPR |
9 |
|
Datasheet |
TMCS-28 | Bulk | Active | Not Verified | Optical | TTL | 10000 | 4.5V ~ 5.5V | Shaft | No | No | Chassis Mount | Vertical | Pin Header | - | - | - |
|
PEC12R-2125F-N0012ROTARY ENCODER MECHANICAL 12PPR |
55 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|

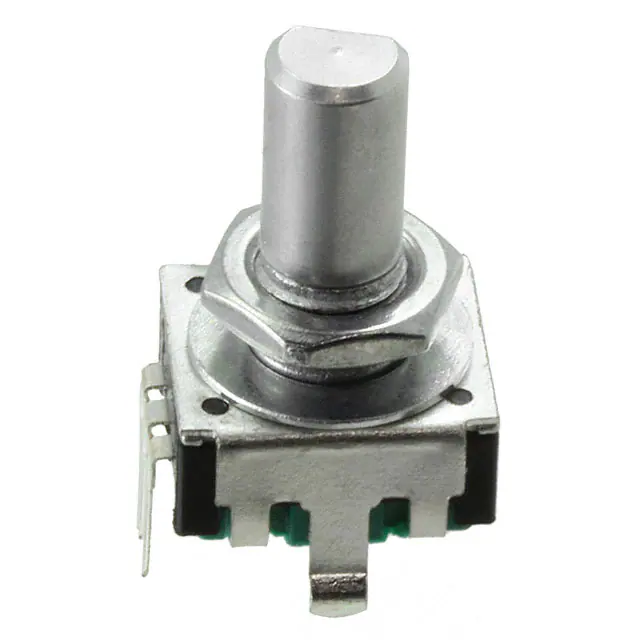

PEC11R-4215F-N0012ROTARY ENCODER MECHANICAL 12PPR |
32 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4315F-N0012ROTARY ENCODER MECHANICAL 12PPR |
41 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

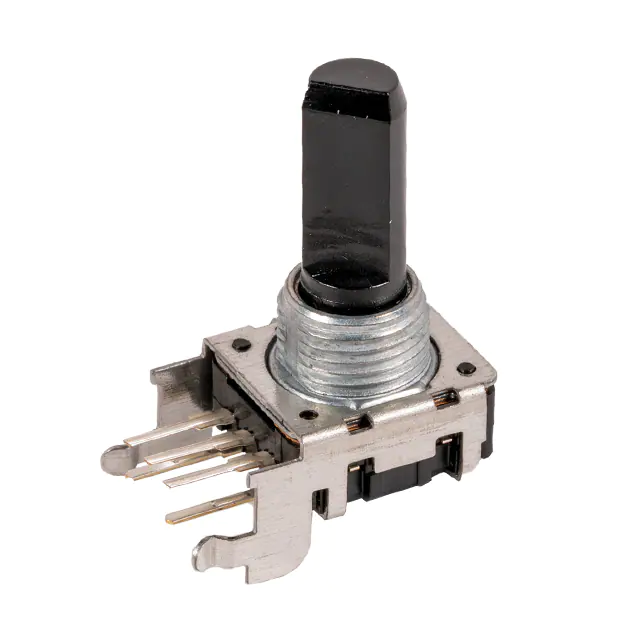

11CEY25F243BROT ENCODER MECHANICAL 24PPR WSW |
43 |
|
Datasheet |
11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEL12S-4224S-N1024ROTARY ENCODER MECHANICAL 24PPR |
41 |
|
Datasheet |
PEL12S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End, Illuminated | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

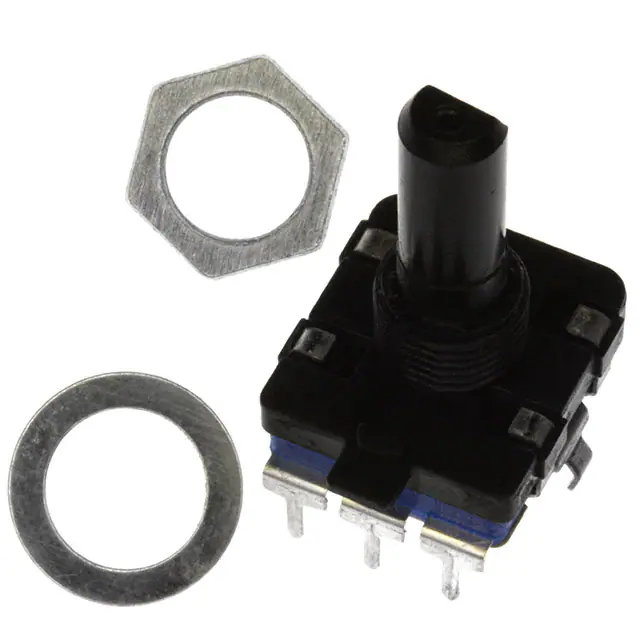

ACZ16NBR1E-20FD1-24CROTARY ENCODER INCREMENT 24PPR |
47 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
290VAA5F201B1ROTARY ENCODER MECHANICAL 20PPR |
44 |
|
Datasheet |
290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
12CE1H24B12224ROT ENCODER MECH 12PPR BLUE LED |
93 |
|
Datasheet |
12CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 12 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
482024764004WS-ENTV INCREMENTAL ENCODER SWIT |
99 |
|
Datasheet |
WS-ENTV | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
ECW0J-R19-BE0024LROTARY ENCODER MECHANICAL 24PPR |
69 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

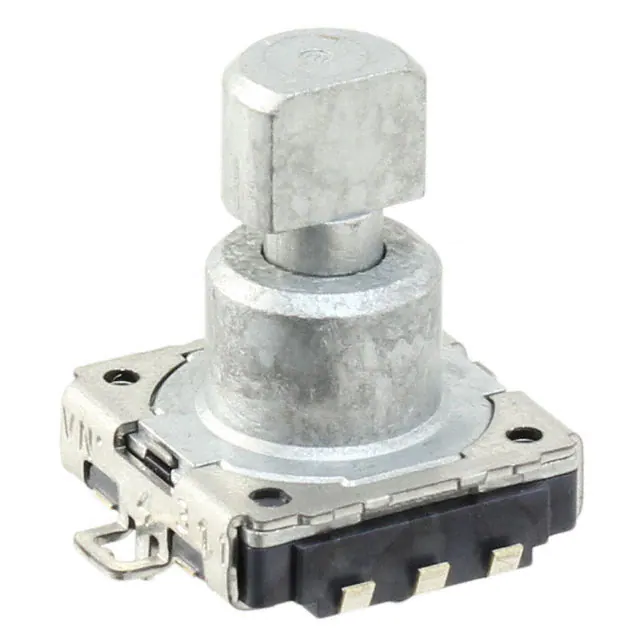

EVE-SBBFE516BROTARY ENCODER MECHANICAL 16PPR |
76 |
|
Datasheet |
EVES | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | - | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ECW1J-B16-BC0024LROTARY ENCODER MECHANICAL 24PPR |
89 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
