Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
290VAB0R201B2ROTARY ENCODER MECHANICAL 20PPR |
50 |
|
Datasheet |
290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Round End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
EC11E15244G1METAL SHAFT ENCODERS |
96 |
|
Datasheet |
EC11E | Tray | Active | - | Incremental | Quadrature (Incremental) | 15 | 5V | 4.5mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
.jpg)
|

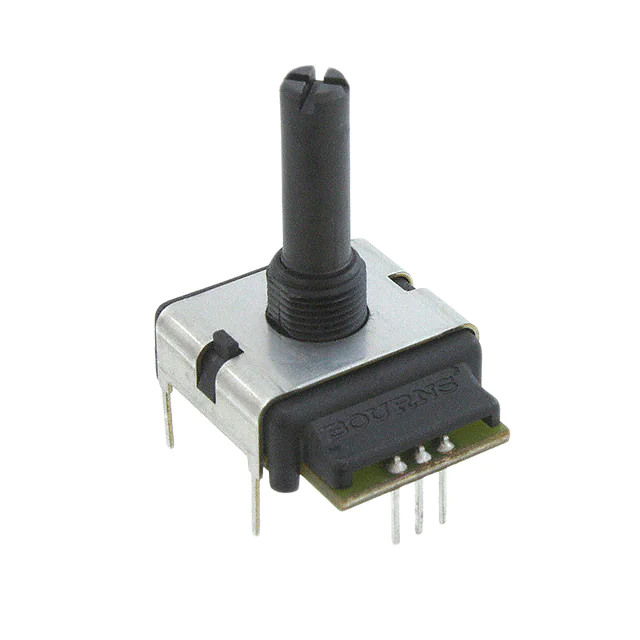

ECW1J-R24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
46 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
EAW0J-B24-AE0128LROTARY ENCODER MECHANICAL 128PPR |
54 |
|
Datasheet |
ACE™ | Tray | Active | Not Verified | Mechanical | Binary (Absolute) | 128 | - | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
292V1X24BROTARY ENCODER OPTICAL 24PPR |
94 |
|
Datasheet |
292 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 24 | 2.97V ~ 3.63V | Hole for Shaft | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|
291C6022F624ABROTARY ENCODER OPTICAL 6PPR |
81 |
|
Datasheet |
291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 6 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
REC16K25-205-B16MM MANUAL ENCODER, SINGLE SHAF |
63 |
|
Datasheet |
REC16K | Box | Active | Not Verified | Optical | Digital, Open Collector | 25 | 5V | 6.35mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 2M | - | - |
|
EM14A1D-C24-L032NROTARY ENCODER OPTICAL 32PPR |
43 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

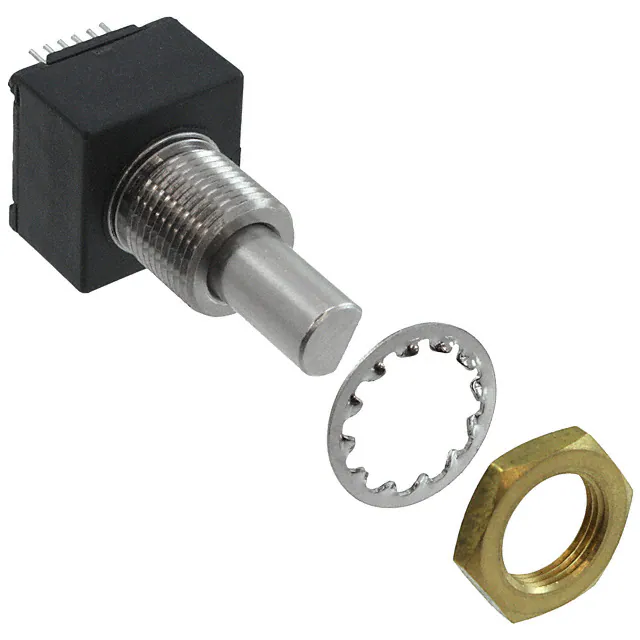

EM14R0D-M20-L064SROTARY ENCODER OPTICAL 64PPR |
69 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AMT102-D2048-I8000-SAMT10, RADIAL, CAP, SINGLE ENDED |
14 |
|
Datasheet |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT102-D2048-I5000-SAMT10, RADIAL, CAP, SINGLE ENDED |
8 |
|
Datasheet |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
RES20-50-200ROTARY ENCODER OPTICAL 50PPR |
12 |
|
Datasheet |
RE | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 50 | 5V | Shaft | No | No | Panel, PCB Through Hole | User Selectable | PC Pin | - | - | - |
|
AEDR-9820A-102AUTO HT, ENCODER 225LPI, REEL 10 |
188 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | 225 LPI | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

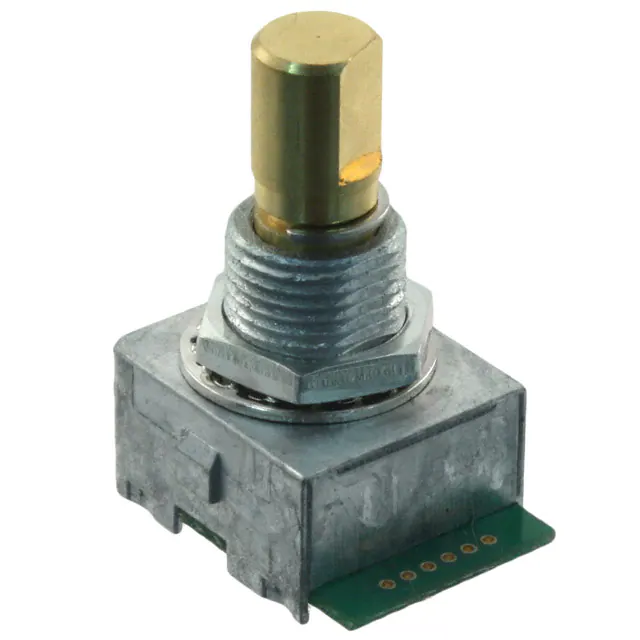

C14D16P-A3ROTARY ENCODER OPTICAL 16PPR |
63 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
|
AEDR-9930EL-102LINEAR 397LPI ENCODER,TNR 100 PC |
39 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
513385ROTARY ENCODER MECHANICAL 12PPR |
31 |
|
Datasheet |
51 | Bulk | Active | Not Verified | Mechanical | BCD (Absolute) | 12 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
EMS22Q31-B28-LS4ROTARY ENCODER MAGNETIC 256PPR |
73 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | Quadrature (Incremental) | 256 | 3.3V | 1/4" Dia Round End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|

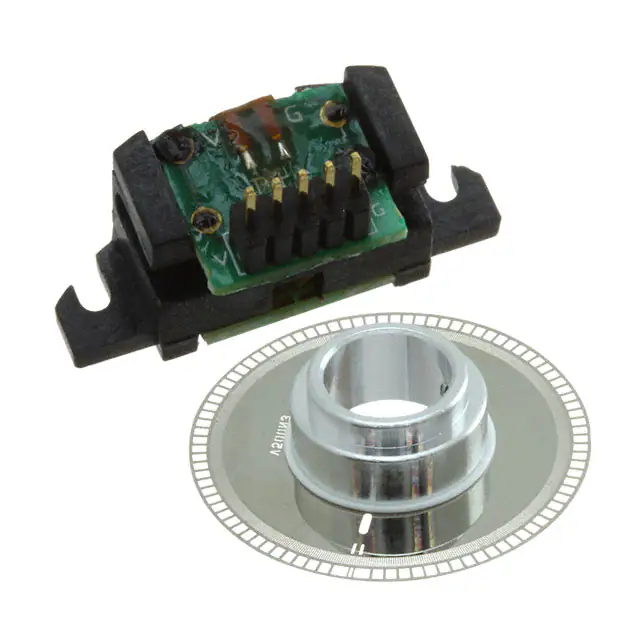

AEDB-9140-A13ROTARY ENCODER OPTICAL 500PPR |
39 |
|
Datasheet |
AEDB-9140 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
ENA1J-B28-L00100LROTARY ENCODER OPTICAL 100PPR |
13 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
62A11-01-PROTARY ENCODER OPTICAL 32PPR |
25 |
|
Datasheet |
62A | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
