EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACF451832-101-TLD01FILTER LC(T) SMD |
0 |
|
- |
ACF | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | 25dB @ 235MHz ~ 335MHz | 0.15 | 300 mA | - | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 50V | - | - | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ACF451832-102-TLD01FILTER LC(T) SMD |
0 |
|
- |
ACF | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | 25dB @ 65MHz ~ 150MHz | 0.15 | 300 mA | - | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 50V | - | - | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ACF451832-152-TLD01FILTER LC(T) SMD |
0 |
|
- |
ACF | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | 25dB @ 50MHz ~ 130MHz | 0.15 | 300 mA | - | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 50V | - | - | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ACF451832-153-TLD01FILTER LC(T) SMD |
0 |
|
- |
ACF | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | 25dB @ 11MHz ~ 70MHz | 0.15 | 300 mA | - | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 50V | - | - | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ACF451832-332-TLD01FILTER LC(T) SMD |
0 |
|
- |
ACF | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | 25dB @ 35MHz ~ 100MHz | 0.15 | 300 mA | - | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 50V | - | - | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ACF451832-471-TLD01FILTER LC(T) SMD |
0 |
|
- |
ACF | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | 25dB @ 95MHz ~ 180MHz | 0.15 | 300 mA | - | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 50V | - | - | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.079" (2.00mm) |
|
CM1692-06DEFILTER LC(PI) 17NH/11.8PF SMD |
0 |
|
- |
Praetorian® | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 6 | - | 30dB @ 1GHz | - | 30 mA | L = 17nH (Total), C = 11.8pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.098" L x 0.053" W (2.50mm x 1.35mm) | 0.022" (0.55mm) |
|
CM6300FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 16.7pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.027" (0.69mm) |
, Array, 6 PC Pad.jpg)
|
MEA1210PE400T001FILTER LC(PI) 40PF 210MHZ SMD |
0 |
|
- |
MEA | 0504 (1210 Metric), Array, 6 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 2 | 210MHz (Cutoff) | 20dB @ 470MHz ~ 3GHz | - | 100 mA | C = 40pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.047" L x 0.039" W (1.20mm x 1.00mm) | 0.024" (0.60mm) |
|
|
MEA1210PH270T001FILTER LC(PI) 27PF 390MHZ SMD |
0 |
|
- |
MEA | 0504 (1210 Metric), Array, 6 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 2 | 390MHz (Cutoff) | 20dB @ 800MHz ~ 3GHz | - | 100 mA | C = 27pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.047" L x 0.039" W (1.20mm x 1.00mm) | 0.024" (0.60mm) |
|
BNX003-01FILTER LC TH |
0 |
|
- |
EMIFIL®, BNX | Block, 4 Lead | Bulk | Obsolete | Low Pass | 5th | LC | 2 | - | 40dB @ 5MHz ~ 1GHz | - | 10 A | - | No | -30°C ~ 85°C | Data Lines for Mobile Devices | 150V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.512" (13.00mm) |
|

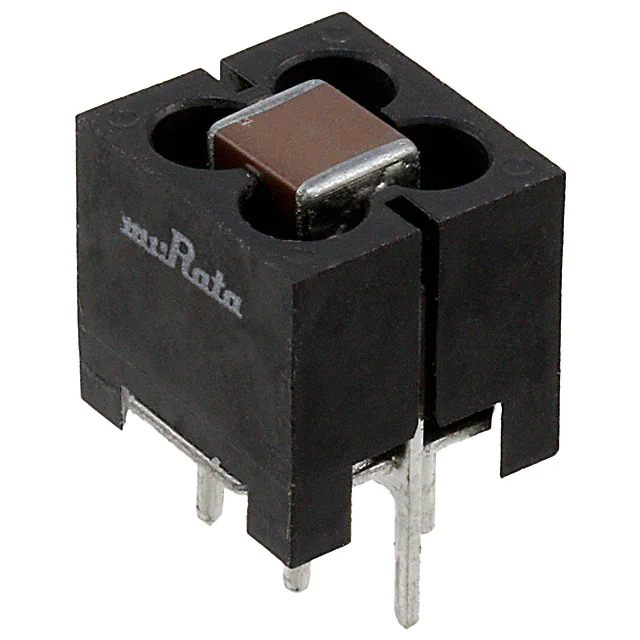

BNX005-01FILTER LC TH |
0 |
|
- |
EMIFIL®, BNX | Block, 4 Lead | Bulk | Obsolete | Low Pass | 5th | LC | 2 | - | 40dB @ 1MHz ~ 1GHz | - | 15 A | - | No | -30°C ~ 85°C | Data Lines for Mobile Devices | 50V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.531" (13.50mm) |
,-Array,-10-PC-Pad.jpg)
|
NFA31GD1001014DFILTER RC 100 OHM/10PF SMD |
0 |
|
- |
EMIFIL®, NFA31 | 1206 (3216 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC | 4 | - | - | 100 | 15 mA | R = 100Ohms, C = 10pF | No | -40°C ~ 85°C | General Purpose | 6V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NFA31GD1004704DFILTER RC 47 OHM/10PF SMD |
0 |
|
- |
EMIFIL®, NFA31 | 1206 (3216 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC | 4 | - | - | 47 | 20 mA | R = 47Ohms, C = 10pF | No | -40°C ~ 85°C | General Purpose | 6V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NFA31GD1006R84DFILTER RC 6.8 OHM/10PF SMD |
0 |
|
- |
EMIFIL®, NFA31 | 1206 (3216 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC | 4 | - | - | 6.8 | 50 mA | R = 6.8Ohms, C = 10pF | No | -40°C ~ 85°C | General Purpose | 6V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NFA31GD1011014DFILTER RC 100 OHM/100PF SMD |
0 |
|
- |
EMIFIL®, NFA31 | 1206 (3216 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC | 4 | - | - | 100 | 15 mA | R = 100Ohms, C = 100pF | No | -40°C ~ 85°C | General Purpose | 6V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NFA31GD1014704DFILTER RC 47 OHM/100PF SMD |
0 |
|
- |
EMIFIL®, NFA31 | 1206 (3216 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC | 4 | - | - | 47 | 20 mA | R = 47Ohms, C = 100pF | No | -40°C ~ 85°C | General Purpose | 6V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NFA31GD1016R84DFILTER RC 6.8 OHM/100PF SMD |
0 |
|
- |
EMIFIL®, NFA31 | 1206 (3216 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC | 4 | - | - | 6.8 | 50 mA | R = 6.8Ohms, C = 100pF | No | -40°C ~ 85°C | General Purpose | 6V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
NFL18SP207X1A3DFILTER LC(PI) 80NH/24PF SMD |
0 |
|
- |
EMIFIL®, NFL18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 200MHz (Cutoff) | - | - | 100 mA | L = 80nH, C = 24pF | No | -55°C ~ 125°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
NFL18SP507X1A3DFILTER LC(PI) 38NH/11PF SMD |
0 |
|
- |
EMIFIL®, NFL18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 500MHz (Cutoff) | - | - | 100 mA | L = 38nH, C = 11pF | No | -55°C ~ 125°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
