EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

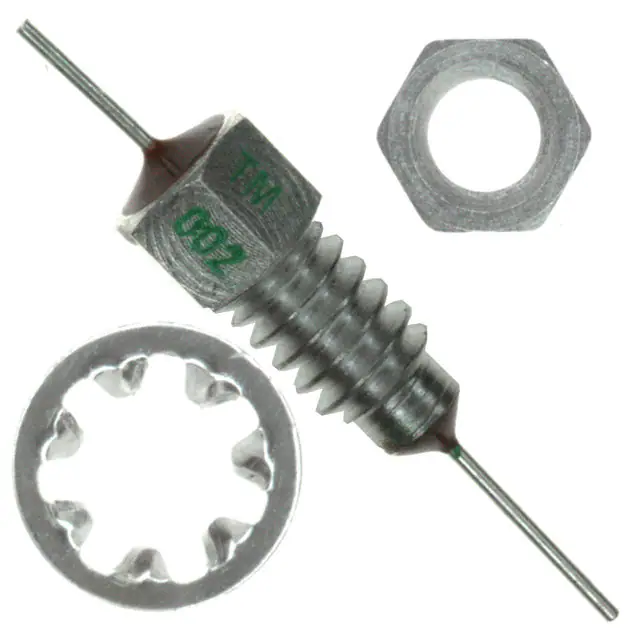

4260-002LFFILTER LC(PI) 7500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 3 A | C = 7500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 50V | - | - | Chassis Mount | 0.156" Dia x 0.350" L (3.96mm x 8.90mm) | - |
|
4261-001LFFILTER LC(PI) 5500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 3 A | C = 5500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 50V | - | - | Chassis Mount | 0.156" Dia x 0.340" L (3.96mm x 8.64mm) | - |
|
M15733/43-0001FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
- | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 1GHz ~ 10GHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 200V | - | - | Chassis Mount | 0.250" Dia x 0.588" L (6.35mm x 14.93mm) | - |
|
M15733/44-0001FILTER LC(PI) 3000PF CHASSIS |
0 |
|
- |
- | Axial, Bushing | Bulk | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | 30dB @ 100MHz | - | 15 A | C = 3000pF | No | -55°C ~ 125°C | - | 125V | - | - | Chassis Mount | 0.188" Dia x 0.396" L (4.78mm x 10.05mm) | - |
|

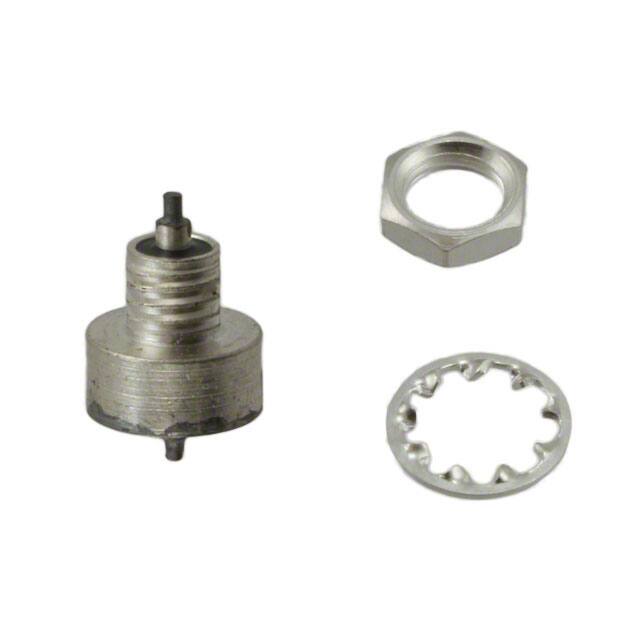

M15733/49-0001FILTER LC 0.68UF CHASSIS |
0 |
|
- |
- | Axial, Bushing | Tray | Active | Low Pass | 2nd | LC | 1 | - | 70dB @ 100MHz ~ 10GHz | - | 15 A | C = 0.68µF | No | -55°C ~ 125°C | - | 50V | - | - | Chassis Mount | - | - |
|
M15733/51-0002FILTER LC(PI) 0.022UF CUSTOM |
0 |
|
- |
- | Axial, Eyelet - 1 Turret Lead | Bulk | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | 70dB @ 100MHz ~ 10GHz | - | 10 A | C = 0.022µF | No | -55°C ~ 125°C | - | 70V | - | - | Custom | 0.203" Dia x 0.390" L (5.16mm x 9.91mm) | - |
|
M15733/61-0012FILTER LC(PI) 0.025UF CHASSIS |
0 |
|
- |
- | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 1GHz ~ 10GHz | - | 10 A | C = 0.025µF | No | -55°C ~ 125°C | - | 100V | - | - | Chassis Mount | 0.235" Dia x 0.437" L (5.97mm x 11.11mm) | - |
|

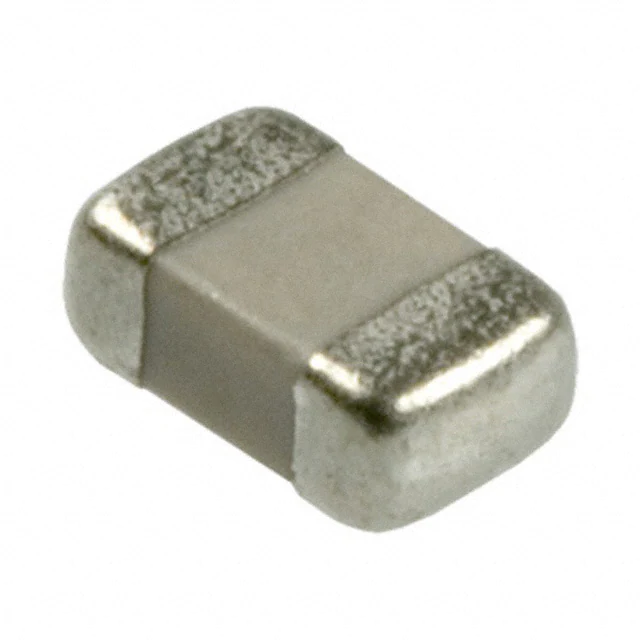

KNH21C473DA3TFILTER LC 0.047UF SMD |
0 |
|
- |
KNH, Kyocera | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Low Pass | - | LC | - | - | - | 0.02 | 2 A | C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 50V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
IP4041CX25/LF/P,13FILTER RC(PI) 200 OHM/50PF SMD |
0 |
|
- |
- | 25-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 10 | - | 30dB @ 800MHz ~ 2.4GHz | 200 | - | R = 200Ohms (Total), C = 50pF (Total) | Yes | -35°C ~ 85°C | GSM, LAN, PCS, WAN | - | - | - | Surface Mount | 0.095" L x 0.095" W (2.41mm x 2.41mm) | 0.028" (0.70mm) |
|
IP4064CX8/LF/P,135FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 17pF (Total) | Yes | -35°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.056" L x 0.056" W (1.43mm x 1.41mm) | 0.028" (0.70mm) |
|
IP4065CX11/LF,135FILTER RC(PI) 33 OHM/27PF SMD |
0 |
|
- |
- | 11-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 33, 1.3k, 17k, 15k | - | R = 33Ohms, C = 27pF | Yes | -30°C ~ 85°C | USB | - | - | - | Surface Mount | 0.077" L x 0.058" W (1.97mm x 1.47mm) | 0.026" (0.65mm) |
|
IP4047CX6/LF,135FILTER RC(PI) 0.9 OHM/290PF SMD |
0 |
|
- |
- | 6-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 0.9 | - | R = 0.9Ohms, C = 290pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.061" L x 0.040" W (1.56mm x 1.01mm) | 0.026" (0.65mm) |
|
|
IP4051CX11/LF,135FILTER RC(PI) 47 OHM/25PF SMD |
0 |
|
- |
- | 11-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | - | - | 47, 13k, 56k | - | R = 47Ohms, C = 25pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.075" L x 0.056" W (1.91mm x 1.41mm) | 0.026" (0.65mm) |
|
IP4054CX15/LF,135FILTER RC(PI) 100 OHM/60PF SMD |
0 |
|
- |
- | 15-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | - | - | 100 | - | R = 100Ohms, C = 60pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.117" L x 0.052" W (2.96mm x 1.33mm) | 0.026" (0.65mm) |
|
IP4052CX20/LF,135FILTER RC(PI) 40 OHM/18PF SMD |
0 |
|
- |
- | 20-CSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 40, 25k, 50k | - | R = 40Ohms, C = 18pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.100" L x 0.079" W (2.54mm x 2.00mm) | 0.026" (0.65mm) |
|
IP4058CX8/LF,135FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 33, 1.5k | - | R = 33Ohms, 1.5kOhms, C = 35pF | Yes | -30°C ~ 85°C | USB | - | - | - | Surface Mount | 0.075" L x 0.036" W (1.90mm x 0.91mm) | 0.026" (0.65mm) |
|
IP4048CX5/LF,135FILTER RC(PI) 10 OHM/200PF SMD |
0 |
|
- |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 10 | - | R = 10Ohms, C = 200pF (Total) | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.050" L x 0.038" W (1.28mm x 0.96mm) | 0.026" (0.65mm) |
|
|
IP4049CX5/LF,135FILTER RC(PI) 68 OHM/110PF SMD |
0 |
|
- |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 68 | - | R = 68Ohms, C = 110pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.050" L x 0.038" W (1.28mm x 0.96mm) | 0.026" (0.65mm) |
|
|
IP4027CX20/LF,135FILTER RC(PI) 10 OHM/20PF SMD |
0 |
|
- |
- | 20-CSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 10, 40, 1.45k | - | R = 10Ohms, C = 20pF | Yes | -45°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.099" L x 0.075" W (2.52mm x 1.91mm) | 0.026" (0.65mm) |
|
|
IP5003CX9/LF/C,135FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 9-CSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 1.05k | - | R = 1.05kOhms, C = 1000pF | Yes | - | Audio | - | - | - | Surface Mount | - | - |
