EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEM2012P10R0FILTER LC(PI) 10MHZ SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 10MHz (Cutoff) | 20dB @ 200MHz ~ 2GHz | - | 200 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.030" (0.76mm) |
|
|
MEM2012P25R0FILTER LC(PI) 25MHZ SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 25MHz (Cutoff) | 20dB @ 300MHz ~ 2GHz | - | 200 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.030" (0.76mm) |
|
|
MEM2012P50R0FILTER LC(PI) 50MHZ SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 50MHz (Cutoff) | 20dB @ 400MHz ~ 2GHz | - | 200 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.030" (0.76mm) |
|
|
MEM2012TC220FILTER LC(T) 22PF SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | - | 0.12 | 1 A | C = 22pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.030" (0.76mm) |
|
|
MEM2012TC101FILTER LC(T) 100PF SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | - | 0.12 | 1 A | C = 100pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.030" (0.76mm) |
|
|
MEM2012TC151FILTER LC(T) 150PF SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | - | 0.12 | 1 A | C = 150pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.030" (0.76mm) |
|
|
MEM2012W121RFILTER LC(PI) 120MHZ SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 5th | LC (Pi) | 1 | 120MHz (Cutoff) | - | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.087" (2.20mm) |
|
NUF2030XV6T1FILTER RC(PI) 22 OHM/30PF SMD |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | - | 22 | - | R = 22Ohms, C = 30pF (Total) | Yes | -55°C ~ 125°C | USB | - | - | - | Surface Mount | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.024" (0.60mm) |
|
NUF2240W1T1FILTER RC(PI) 100 OHM/17PF SMD |
0 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | 125MHz (Cutoff) | -20dB @ 800MHz | 100 | - | R = 100Ohms, C = 17pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.09mm) |
|
NUF2450MUT2GFILTER LC(PI) 2.3NH/240PF SMD |
0 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 2 | 20MHz (Cutoff) | -30dB @ 800MHz ~ 5GHz | 1.3 | - | L = 2.3nH, C = 240pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.022" (0.55mm) |
|
VEMI65A6-FC2-GS08FILTER RC(PI) 100 OHM/90PF SMD |
0 |
|
- |
- | 15-WFBGA, FCBGA | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | 60MHz (Cutoff) | 30dB @ 800MHz ~ 2GHz | 100 | 5 A | R = 100Ohms, C = 90pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.117" L x 0.052" W (2.96mm x 1.33mm) | 0.026" (0.65mm) |
|
EZA-CT61AAAJFILTER RC 1 KOHM/22PF SMD |
0 |
|
- |
EZACT | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC | 4 | - | - | 1k | - | R = 1kOhms, C = 22pF | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) |
|

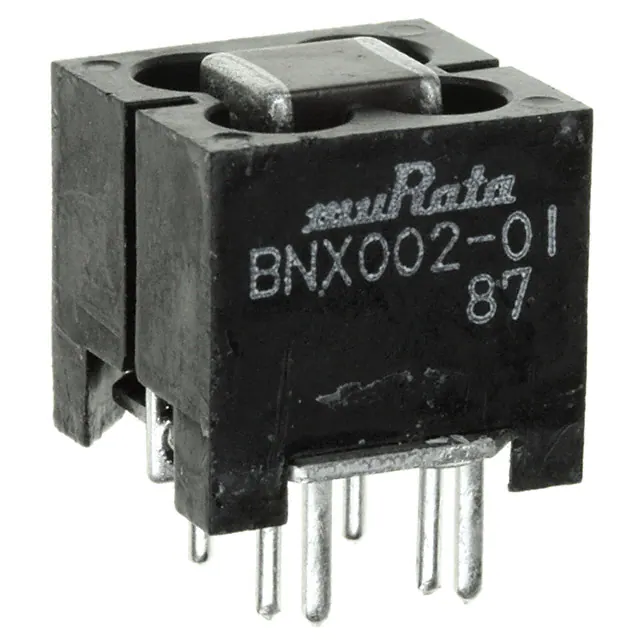

BNX002-01FILTER LC TH |
0 |
|
- |
EMIFIL®, BNX | Block, 4 Lead | Bulk | Obsolete | Low Pass | 5th | LC | 2 | - | 40dB @ 1MHz ~ 1GHz | - | 10 A | - | No | -30°C ~ 85°C | Data Lines for Mobile Devices | 50V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.512" (13.00mm) |
|
ECLAMP2422N.TCTFILTER LC(PI) 2NH/100PF ESD SMD |
0 |
|
- |
EClamp™ | 6-UFDFN | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 2 | - | 20dB @ 800MHz ~ 2.7GHz | 1.4 | - | L = 2nH, C = 100pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.057" L x 0.039" W (1.45mm x 1.00mm) | 0.026" (0.65mm) |
 Exposed Pad.jpg)
|
NUF8600MNTXGFILTER RC(PI) 50 OHM/17PF SMD |
0 |
|
- |
- | 16-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 115MHz (Cutoff) | -25dB @ 800MHz ~ 2.2GHz | 50 | - | R = 50Ohms, C = 17pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.039" (1.00mm) |
|

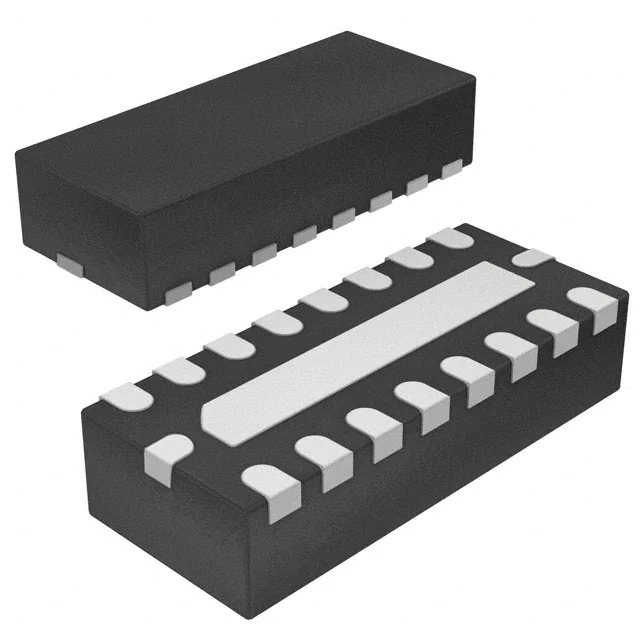

NUF8610MNTXGFILTER RC(PI) 50 OHM/8.5PF SMD |
0 |
|
- |
- | 16-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 260MHz (Cutoff) | -15dB @ 800MHz ~ 2.2GHz | 50 | - | R = 50Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.039" (1.00mm) |
|
4100-002LFFILTER LC(PI) 1500PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 25dB @ 100MHz | - | 15 A | C = 1500pF | No | -55°C ~ 125°C | - | 200V | - | - | Custom | 0.110" Dia x 0.275" L (2.79mm x 6.99mm) | - |
|
4101-004LFFILTER LC(PI) 1750PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 10 A | C = 1750pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.195" Dia x 0.260" L (4.95mm x 6.60mm) | - |
|
4151-001LFFILTER LC(PI) 0.022UF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - 1 Turret Lead | Bulk | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | 70dB @ 100MHz ~ 10GHz | - | 10 A | C = 0.022µF | No | -55°C ~ 125°C | - | 70V | - | - | Custom | 0.195" Dia x 0.380" L (4.95mm x 9.65mm) | - |
|
4202-021LFFILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 200V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.88mm) | - |
