EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P409CP104M275AH151FILTER RC 150 OHM/0.1UF TH |
141 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 150 | - | R = 150Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|

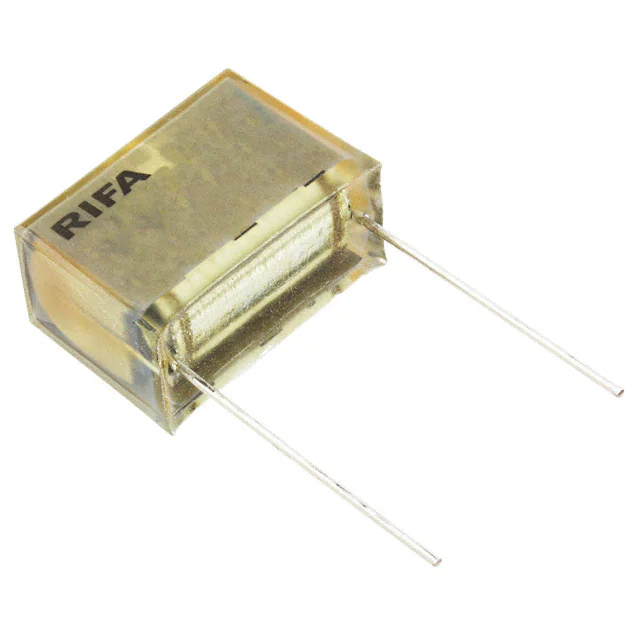

PMR209ME6470M220R30FILTER RC 220 OHM/0.47UF TH |
0 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|
|
PMR209ME6470M100R30FILTER RC 100 OHM/0.47UF TH |
219 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|

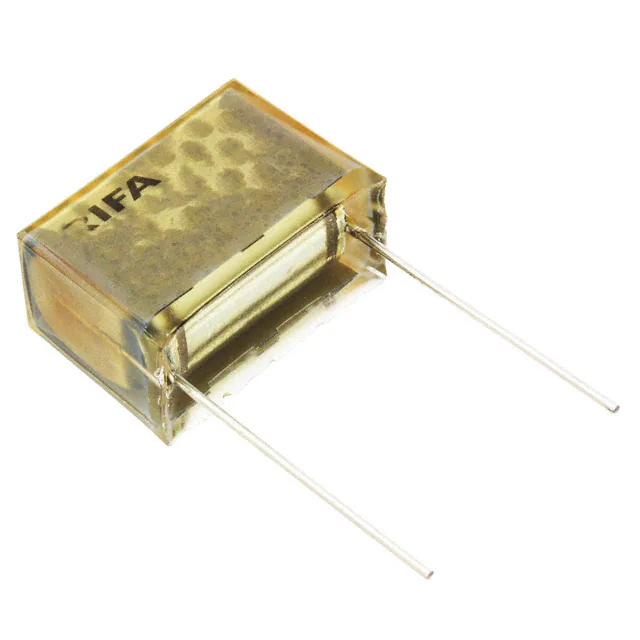

PMR209ME6470M047R30FILTER RC 47 OHM/0.47UF TH |
198 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|

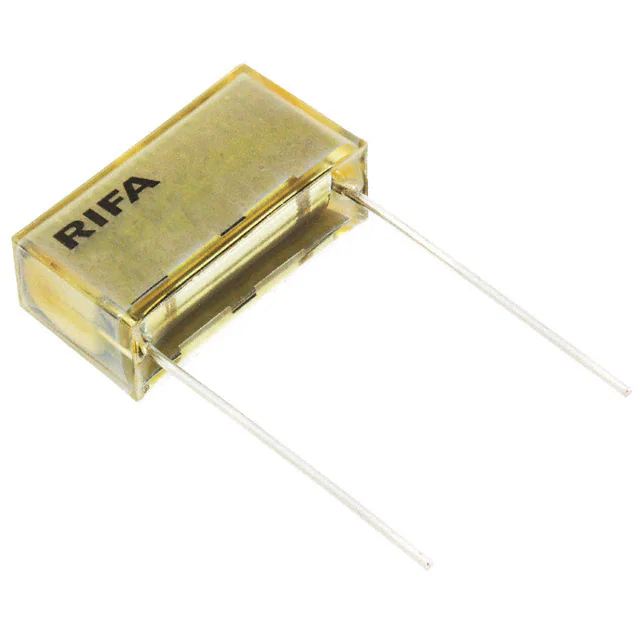

PMR210ME6100M100R30FILTER RC 100 OHM/0.1UF TH |
405 |
|
- |
PMR210 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 1.201" L x 0.417" W (30.50mm x 10.60mm) | 0.634" (16.10mm) |
|
P410EE104M300AH101FILTER RC 100 OHM/0.1UF TH |
152 |
|
- |
P410 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 300VAC | - | - | Through Hole | 1.201" L x 0.417" W (30.50mm x 10.60mm) | 0.634" (16.10mm) |
,-3-PC-Pad.jpg)
|
SBSPP1000152MXTFILTER LC(PI) 1500PF SMD |
1,538 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 1500pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
M15733/61-0014FILTER LC(PI) 0.01UF CHASSIS |
487 |
|
- |
- | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 70dB @ 1GHz ~ 10GHz | - | 20 A | C = 10000pF | No | -55°C ~ 125°C | - | 50V | - | - | Chassis Mount | 0.187" Dia x 0.465" L (4.75mm x 11.81mm) | - |
|
SBSMP2000104MXTSURFACE MOUNT C AND PI FILTER |
225 |
|
- |
SBSM | 2220 (5750 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 44dB @ 100MHz | - | 20 A | C = 0.1µF | No | -55°C ~ 125°C | General Purpose | 200V | - | - | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.133" (3.38mm) |
|
4205-002LFFILTER LC(PI) 65PF CHASSIS |
130 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 3dB @ 100MHz | - | 15 A | C = 65pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 125V | - | - | Chassis Mount | 0.187" Dia x 0.200" L (4.75mm x 5.08mm) | - |
|
4208-000LFFILTER LC(PI) 1500PF CHASSIS |
133 |
|
- |
4200 | Axial, Bushing - 2 Notched Leads | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz ~ 10GHz | - | 25 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 2000V (2kV) | - | - | Chassis Mount | 0.500" Dia x 0.500" L (12.70mm x 12.70mm) | - |
|
4400-060LFFILTER LC 0.027UF |
129 |
|
- |
4400 | Axial, Bushing | Bulk | Active | Low Pass | 2nd | LC | 1 | - | 45dB @ 100MHz | - | 10 A | C = 0.027µF | No | -55°C ~ 125°C | General Purpose | 50V | - | - | - | 0.157" Dia x 0.340" L (3.98mm x 8.64mm) | - |
|
AVRF060W650MT102ESD NOTCH FILTER 5.5VDC/1GHZ |
29,143 |
|
- |
AVRF | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | - | - | - | 20dB @ 1GHz | - | - | C = 65pF | Yes | -55°C ~ 85°C | Audio | 5.5V | - | - | Surface Mount | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.012" (0.30mm) |
|
|
AVRF060X8R2LT272ESD NOTCH FILTER 7VDC/2.7GHZ |
28,270 |
|
- |
AVRF | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | - | - | - | 20dB @ 2.7GHz | - | - | C = 8.2pF | Yes | -55°C ~ 85°C | Audio | 7V | - | - | Surface Mount | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.012" (0.30mm) |
|
|
AVRF060V600MT102ESD NOTCH FILTER 3.5VDC/1GHZ |
23,028 |
|
- |
AVRF | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | - | - | - | 20dB @ 1GHz | - | - | C = 60pF | Yes | -55°C ~ 85°C | Audio | 3.5V | - | - | Surface Mount | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.012" (0.30mm) |
|
|
AVRF060X100LT242ESD NOTCH FILTER 7VDC/2.4GHZ |
21,999 |
|
- |
AVRF | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | - | - | - | 20dB @ 2.4GHz | - | - | C = 10pF | Yes | -55°C ~ 85°C | Audio | 7V | - | - | Surface Mount | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.012" (0.30mm) |
|
AVRF061D2R4ST532EMI/RFI,ESD,VDC20V,0201,5.3GHZ |
29,495 |
|
- |
AVRF | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | C = 10pF | Yes | -40°C ~ 85°C | - | 7V | - | - | Surface Mount | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
NUF6010MUT2GFILTER RC(PI) 100 OHM/7PF SMD |
1,842 |
|
- |
- | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | 250MHz (Cutoff) | -20dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 7pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.098" L x 0.047" W (2.50mm x 1.20mm) | 0.022" (0.55mm) |
|
|
AVRF041A150MT242EMI/RFI,ESD,VDC10V,01005,2.4GHZ |
39,891 |
|
- |
AVRF | 01005 (0402 Metric) | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | C = 15pF | Yes | -40°C ~ 85°C | - | 10V | - | - | Surface Mount | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
MEA1608LD100TA0GFILTER LC 10PF 500MHZ SMD |
7,033 |
|
- |
MEA | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Not For New Designs | Low Pass | 3rd | LC | 4 | 500MHz (Cutoff) | - | - | 50 mA | C = 10pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
EMI/RFI Filters (LC, RC Networks) Electronic Components
Explore EMI/RFI Filters (LC, RC Networks) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
