CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

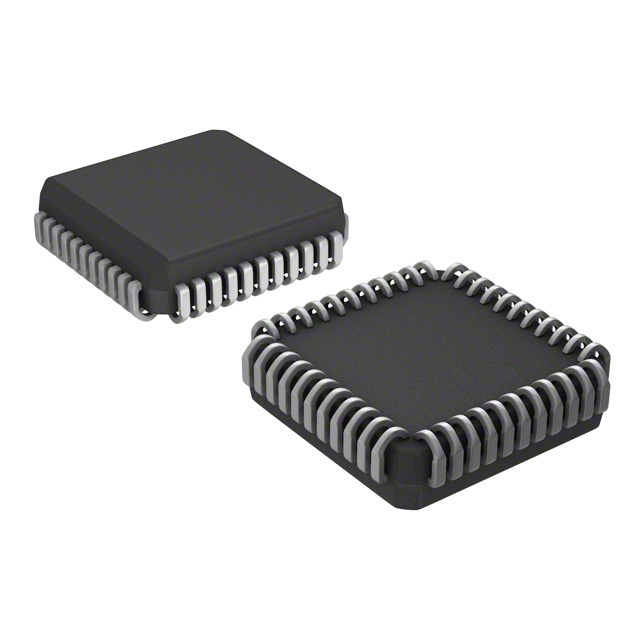

ATV2500B-12KCIC CPLD 24MC 12NS 44JLCC |
0 |
|
Datasheet |
ATV2500B(L) and BQ(L) | 44-CLCC Window (J-Lead) | Tube | Obsolete | Not Verified | UV Erasable | 12 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
|
ATV2500B-15KCIC CPLD 24MC 15NS 44JLCC |
0 |
|
Datasheet |
ATV2500B(L) and BQ(L) | 44-CLCC Window (J-Lead) | Tube | Obsolete | Not Verified | UV Erasable | 15 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
ATV2500BL-20JIIC CPLD 24MC 20NS 44PLCC |
0 |
|
Datasheet |
ATV2500B(L) and BQ(L) | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | OTP | 20 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
ATV2500BL-20KCIC CPLD 24MC 20NS 44JLCC |
0 |
|
Datasheet |
ATV2500B(L) and BQ(L) | 44-CLCC Window (J-Lead) | Tube | Obsolete | Not Verified | UV Erasable | 20 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
|
ATV2500BL-20KIIC CPLD 24MC 20NS 44JLCC |
0 |
|
Datasheet |
ATV2500B(L) and BQ(L) | 44-CLCC Window (J-Lead) | Tube | Obsolete | Not Verified | UV Erasable | 20 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
ATV2500BQ-25DIIC CPLD 24MC 25NS 40CERDIP |
0 |
|
Datasheet |
ATV2500B(L) and BQ(L) | 40-CDIP (0.600", 15.24mm) Window | Tube | Obsolete | Not Verified | UV Erasable | 25 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -40°C ~ 85°C (TA) | - | - | Through Hole | 40-Cerdip |
|
|
ATV2500BQ-25JIIC CPLD 24MC 25NS 44PLCC |
0 |
|
Datasheet |
ATV2500B(L) and BQ(L) | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | OTP | 25 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
ATV2500BQ-25KIIC CPLD 24MC 25NS 44JLCC |
0 |
|
Datasheet |
ATV2500B(L) and BQ(L) | 44-CLCC Window (J-Lead) | Tube | Obsolete | Not Verified | UV Erasable | 25 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
|
ATV2500BQL-25JIIC CPLD 24MC 25NS 44PLCC |
0 |
|
Datasheet |
ATV2500B(L) and BQ(L) | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | OTP | 25 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
ATV2500BQL-25KCIC CPLD 24MC 25NS 44JLCC |
0 |
|
Datasheet |
ATV2500B(L) and BQ(L) | 44-CLCC Window (J-Lead) | Tube | Obsolete | Not Verified | UV Erasable | 25 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
XC95108-10PC84CIC CPLD 108MC 10NS 84PLCC |
0 |
|
Datasheet |
XC9500 | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 6 | 108 | 2400 | 69 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
XC95108-10PC84IIC CPLD 108MC 10NS 84PLCC |
0 |
|
Datasheet |
XC9500 | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | 6 | 108 | 2400 | 69 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
XC95108-10PQ100IIC CPLD 108MC 10NS 100QFP |
0 |
|
Datasheet |
XC9500 | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | 6 | 108 | 2400 | 81 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
XC95108-10PQ160CIC CPLD 108MC 10NS 160QFP |
0 |
|
Datasheet |
XC9500 | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 6 | 108 | 2400 | 108 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
XC95108-10PQ160IIC CPLD 108MC 10NS 160QFP |
0 |
|
Datasheet |
XC9500 | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | 6 | 108 | 2400 | 108 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
XC95108-10TQ100CIC CPLD 108MC 10NS 100TQFP |
0 |
|
Datasheet |
XC9500 | 100-LQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 6 | 108 | 2400 | 81 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
XC95108-10TQ100IIC CPLD 108MC 10NS 100TQFP |
0 |
|
Datasheet |
XC9500 | 100-LQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | 6 | 108 | 2400 | 81 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
XC95108-15PC84IIC CPLD 108MC 15NS 84PLCC |
0 |
|
Datasheet |
XC9500 | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.5V ~ 5.5V | 6 | 108 | 2400 | 69 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
XC95108-15PQ100CIC CPLD 108MC 15NS 100QFP |
0 |
|
Datasheet |
XC9500 | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 6 | 108 | 2400 | 81 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
XC95108-15PQ100IIC CPLD 108MC 15NS 100QFP |
0 |
|
Datasheet |
XC9500 | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.5V ~ 5.5V | 6 | 108 | 2400 | 81 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
