Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L70S200.VFUSE CRTRDGE 200A 700VAC/650VDC |
9,190 |
|
Datasheet |
POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.500" Dia x 2.843" L (38.10mm x 72.20mm) | - | - |
|
PSR030FS0250ZFUSE SQUARE 250A 700VAC/600VDC |
5,850 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 250A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
SPFJ125.XXLFUSE CARTRIDGE 125A 600VAC/1KVDC |
1 |
|
Datasheet |
POWR-GARD® SPFJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.012" L (38.10mm x 76.50mm) | - | - |
|
DFJ-100FUSE CRTRDGE 100A 600VAC/450VDC |
1 |
|
Datasheet |
DFJ | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 100A | 600 VAC | 450 VDC | - | Electrical, Industrial | - | J | CE, CSA, UL | - | 200kA AC, 100kA DC | 1.130" Dia x 4.630" L (28.70mm x 117.60mm) | - | - |
|
L50QS500.XFUSE CRTRDGE 500A 500VAC/VDC |
1 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 500A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 4.468" L (50.80mm x 113.49mm) | - | - |
|
0JTD125.XFUSE CRTRDGE 125A 600VAC/500VDC |
1 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 125A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
0JTD200.XXIDFUSE CRTRDGE 200A 600VAC/500VDC |
7,681 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 200A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
|
0JTD125.XXIDFUSE CRTRDGE 125A 600VAC/500VDC |
2,858 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 125A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
L70QS250.XFUSE CRTRDGE 250A 700VAC/700VDC |
1 |
|
Datasheet |
POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 5.094" L (50.80mm x 129.39mm) | - | - |
|
|
L70QS400.XFUSE CRTRDGE 400A 700VAC/700VDC |
1 |
|
Datasheet |
POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 5.094" L (50.80mm x 129.39mm) | - | - |
|
|
L70QS350.XFUSE CRTRDGE 350A 700VAC/700VDC |
5,244 |
|
Datasheet |
POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 5.094" L (50.80mm x 129.39mm) | - | - |
|

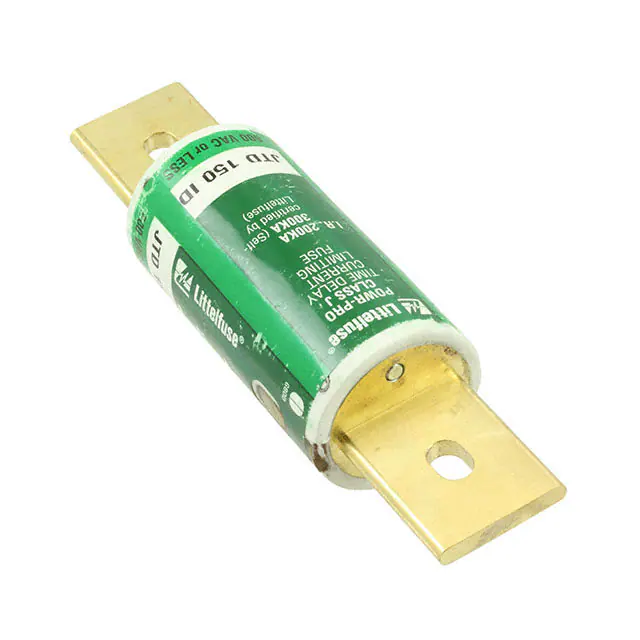

0JTD150.XXIDFUSE CRTRDGE 150A 600VAC/500VDC |
1 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 150A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
PSR070UL0200ZFUSE SQUARE 200A 1.3KVAC/1KVDC |
1 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 200A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.811" L x 1.693" W x 1.929" H (71.40mm x 43.00mm x 49.00mm) | - | - |
|

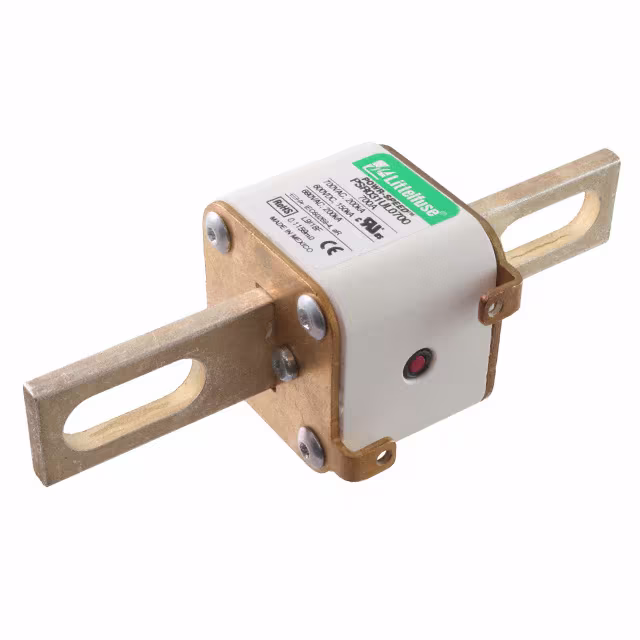

PSR031UL0700ZFUSE SQUARE 700A 700VAC/600VDC |
7,650 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 700A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
|

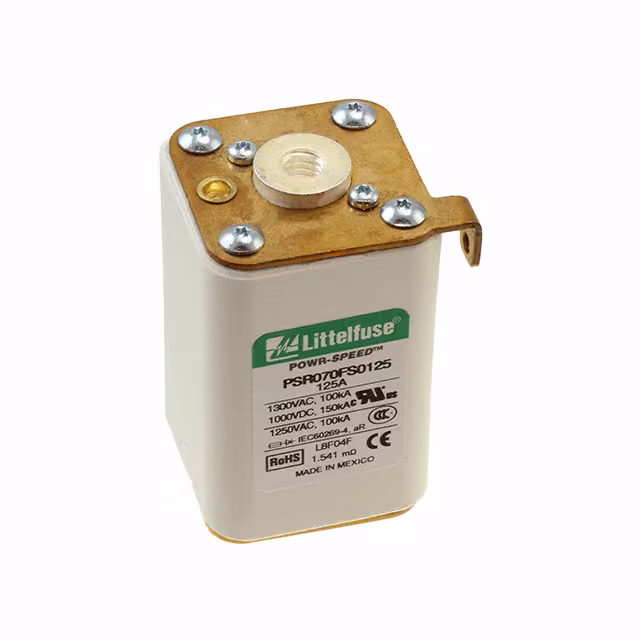

PSR070FS0125ZFUSE SQUARE 125A 1.3KVAC/1KVDC |
4,516 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 125A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
|
PSR071FS0250ZFUSE SQUARE 250A 1.3KVAC/1KVDC |
5,633 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|
LPJ-200SPFUSE CRTRDGE 200A 600VAC/300VDC |
1 |
|
Datasheet |
LOW-PEAK™ LPJ | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 200A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
PSR032US0800XFUSE SQUARE 800A 700VAC/600VDC |
4,616 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 800A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|

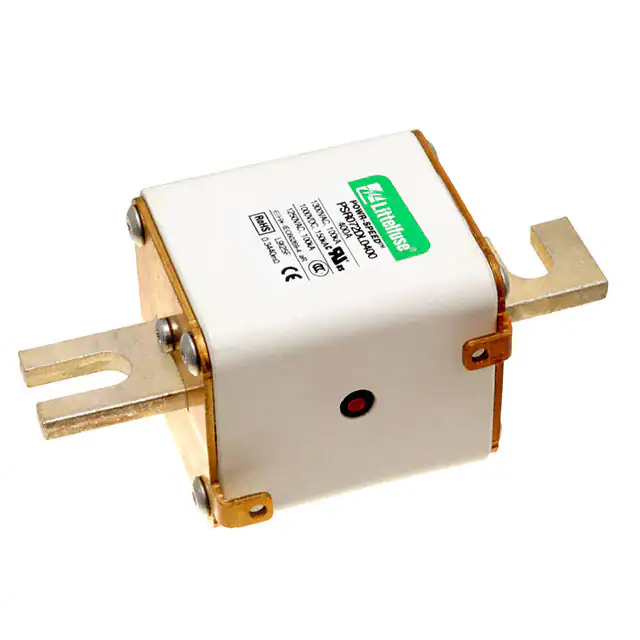

PSR072DL0400XFUSE SQUARE 400A 1.3KVAC/1KVDC |
4,182 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 400A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|
PSR072DL0500XFUSE SQUARE 500A 1.3KVAC/1KVDC |
1 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 500A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
