Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPXI02.5TFUSE CRTRDGE 2.5A 1.5KVDC INLINE |
4,748 |
|
Datasheet |
POWR-GARD® SPXI | Cartridge, Inline, Double Ended | Box | Active | Free Hanging (In-Line) | Cartridge | 2.5A | - | 1.5 kVDC | - | Solar (Photovoltaic) | - | - | CE, UR | - | 30kA | 0.406" Dia x 2.240" L (10.31mm x 56.89mm) | - | - |
|
0TLS060.TXLSFUSE CRTRDGE 60A 170VDC RAD BEND |
4,438 |
|
Datasheet |
POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 60A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.562" Dia x 0.944" L (14.28mm x 23.98mm) | - | - |
|
0JTD025.TFUSE CARTRIDGE 25A 600VAC/300VDC |
1 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 25A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|
0JTD020.TFUSE CARTRIDGE 20A 600VAC/300VDC |
5,944 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|
0JTD030.TFUSE CARTRIDGE 30A 600VAC/300VDC |
6,409 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|

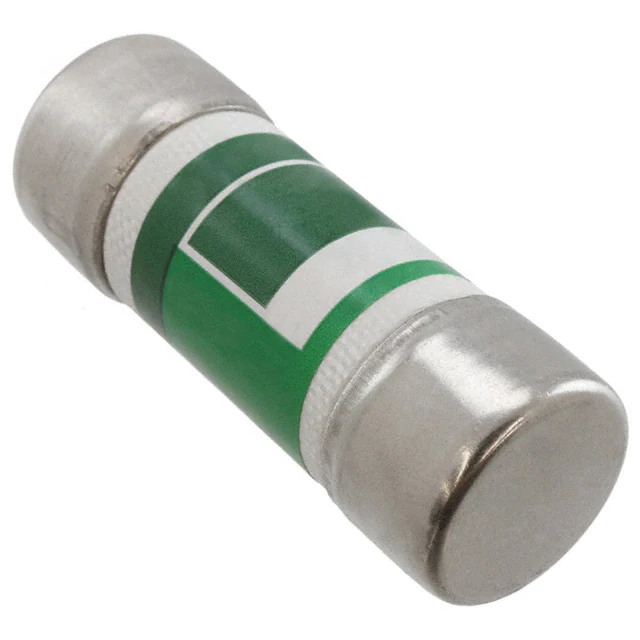

0JTD015.TFUSE CARTRIDGE 15A 600VAC/300VDC |
4,213 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|
L50S030.TFUSE CARTRIDGE 30A 500VAC/450VDC |
1 |
|
Datasheet |
POWR-GARD® L50S | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 30A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|
|
L50S020.TFUSE CARTRIDGE 20A 500VAC/450VDC |
1 |
|
Datasheet |
POWR-GARD® L50S | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 20A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|

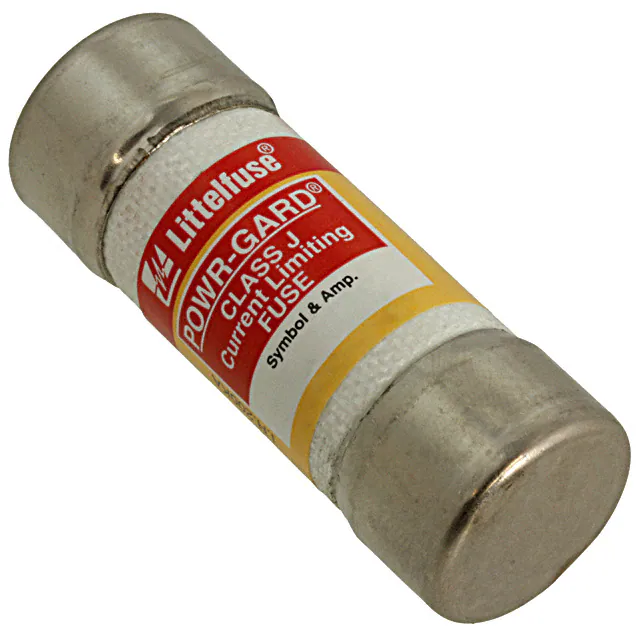

0JLS030.TFUSE CARTRIDGE 30A 600VAC |
1 |
|
Datasheet |
POWR-GARD® JLS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | J | CE, CSA, QPL, UL | - | 200kA | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|
0JTD030.TXIDFUSE CARTRIDGE 30A 600VAC/300VDC |
1 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|
0TLS100.TXVFUSE CARTRIDGE 100A 170VDC |
7,837 |
|
Datasheet |
POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 100A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.563" Dia x 0.877" H (14.30mm x 22.28mm) | - | - |
|
|
JLLS040.TFUSE CARTRIDGE 40A 600VAC/300VDC |
1 |
|
Datasheet |
POWR-GARD® JLLS | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 40A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 1.000" Dia x 1.563" L (25.40mm x 39.70mm) | - | - |
|
JJN-40FUSE CARTRIDGE 40A 300VAC/160VDC |
8,549 |
|
Datasheet |
Limitron™ JJN | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 40A | 300 VAC | 160 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.560" Dia x 0.880" L (14.22mm x 22.35mm) | - | - |
|
0CNL200.VFUSE STRIP 200A 32VAC/VDC BOLT |
1 |
|
Datasheet |
POWR-GARD® CNL | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 200A | 32 VAC | 32 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
0CNL300.VFUSE STRIP 300A 32VAC/VDC BOLT |
1 |
|
Datasheet |
POWR-GARD® CNL | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 300A | 32 VAC | 32 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|

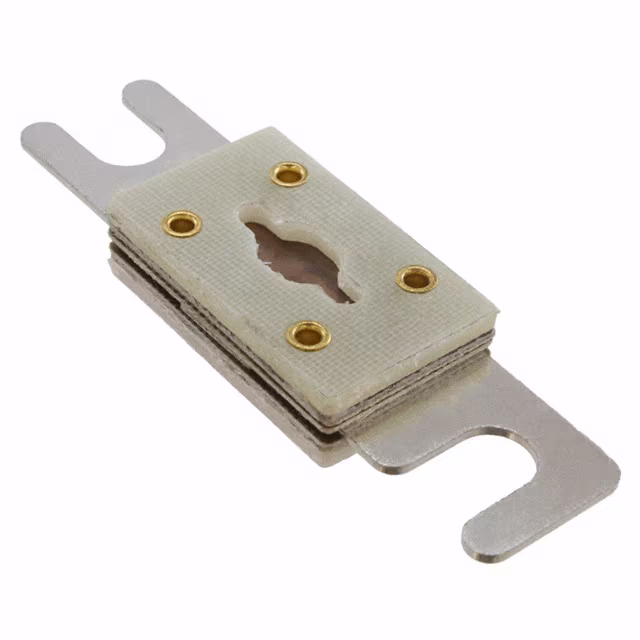

0CNN250.VFUSE STRP 250A 125VAC/48VDC BOLT |
1 |
|
Datasheet |
POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 250A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
0CNN300.VFUSE STRP 300A 125VAC/48VDC BOLT |
1 |
|
Datasheet |
POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 300A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
|
0CNN200E.VFUSE STRP 200A 125VAC/80VDC BOLT |
1 |
|
Datasheet |
POWR-GARD® CNN_E | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 200A | 125 VAC | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | cURus | - | 2.5kA | - | - | - |
|
LSRK040.TFUSE CARTRIDGE 40A 600VAC/300VDC |
1 |
|
Datasheet |
POWR-GARD®, POWR-PRO® LLSRK | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 40A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 5.500" L (27.00mm x 139.70mm) | - | - |
|
L50QS050.TFUSE CARTRIDGE 50A 500VAC/VDC |
1 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 3.625" L (25.40mm x 92.08mm) | - | - |
