Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JLLS110.XFUSE CRTRDGE 110A 600VAC/300VDC |
1 |
|
Datasheet |
POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 110A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 1.063" Dia x 1.657" L (27.00mm x 42.10mm) | - | - |
|
|
JLLS175.XFUSE CRTRDGE 175A 600VAC/300VDC |
1 |
|
Datasheet |
POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 175A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 1.063" Dia x 1.657" L (27.00mm x 42.10mm) | - | - |
|
0CNN350.VFUSE STRP 350A 125VAC/48VDC BOLT |
1 |
|
Datasheet |
POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 350A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
|
0CNN500E.VFUSE STRP 500A 125VAC/80VDC BOLT |
8,053 |
|
Datasheet |
POWR-GARD® CNN_E | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 500A | 125 VAC | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | cURus | - | 2.5kA | - | - | - |
|

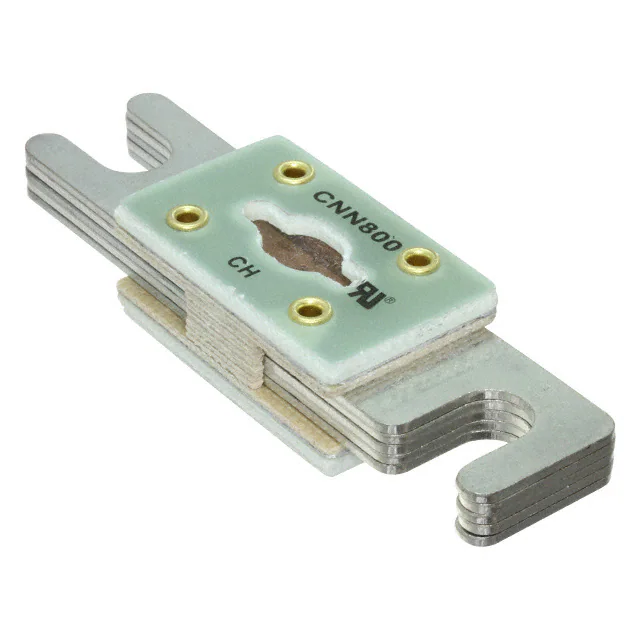

0CNN800.VFUSE STRP 800A 125VAC/48VDC BOLT |
3,821 |
|
Datasheet |
POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 800A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
FLSR100.VXIDFUSE CRTRDGE 100A 600VAC/300VDC |
1 |
|
Datasheet |
POWR-GARD® FLSR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 100A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 7.874" L (33.30mm x 200.00mm) | - | - |
|
ANL-175FUSE STRIP 175A 80VDC RECT |
8,944 |
|
Datasheet |
ANL | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 175A | - | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.7kA | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
|
L25S060.TFUSE CARTRIDGE 60A 250VAC/VDC |
7,257 |
|
Datasheet |
POWR-GARD® L25S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 60A | 250 VAC | 250 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | - | - |
|
L15S250.TFUSE CRTRDGE 250A 150VAC/100VDC |
1 |
|
Datasheet |
POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
|
L15S150.TFUSE CRTRDGE 150A 150VAC/100VDC |
7,452 |
|
Datasheet |
POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
|
L15S350.TFUSE CRTRDGE 350A 150VAC/100VDC |
5,492 |
|
Datasheet |
POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
|
ANL-50FUSE STRIP 50A 80VDC RECT |
1 |
|
Datasheet |
ANL | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 50A | - | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.7kA | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
|
L50QS125.VFUSE CRTRDGE 125A 500VAC/VDC |
3,104 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.218" Dia x 3.625" L (30.94mm x 92.08mm) | - | - |
|
|
L50QS200.VFUSE CRTRDGE 200A 500VAC/VDC |
5,043 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.218" Dia x 3.625" L (30.94mm x 92.08mm) | - | - |
|
L70QS050.VFUSE CARTRIDGE 50A 700VAC/700VDC |
1 |
|
Datasheet |
POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | - | - |
|
L75QS050.V750VDC HIGHSPEED SEMICONDUCTOR F |
1 |
|
Datasheet |
POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.000" Dia x 2.875" L (25.40mm x 73.03mm) | - | - |
|
|
ANL-35FUSE STRIP 35A 80VDC RECT |
5,906 |
|
Datasheet |
ANL | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 35A | - | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.7kA | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
|
FRS-R-90FUSE CARTRIDGE 90A 600VAC/300VDC |
4,402 |
|
Datasheet |
Fusetron™ FRS-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 90A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.110" Dia x 7.880" L (28.19mm x 200.15mm) | - | - |
|
160LETFUSE CRTRDGE 160A 240VAC/150VDC |
1 |
|
Datasheet |
LET | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 160A | 240 VAC | 150 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.697" Dia x 1.032" L (17.70mm x 26.20mm) | - | - |
|
250NHG02BFUSE SQUARE 250A 500VAC/250VDC |
1 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 250A | 500 VAC | 250 VDC | Fast Blow | Electrical, Industrial | Indicating | NH | VDE | - | 120kA | 2.953" L x 2.047" W x 2.165" H (75.00mm x 52.00mm x 55.00mm) | - | - |
