Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1635-2R5226CAP 22F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
B | Bulk | Obsolete | 22 F | -20%, +80% | 2.5 V | 40mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.650" Dia (16.50mm) | 1.496" (38.00mm) | -25°C ~ 70°C |
|
|
B1635-2R5226-RCAP 22F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
B | Bulk | Obsolete | 22 F | -20%, +80% | 2.5 V | 40mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.650" Dia (16.50mm) | 1.496" (38.00mm) | -25°C ~ 70°C |
|
MAL219622684E3CAP 680MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
196 DLC | Bulk | Obsolete | 680 mF | -20%, +80% | 5.5 V | 50Ohm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.827" Dia (21.00mm) | 0.374" (9.50mm) | -25°C ~ 85°C |
|
MAL219690106E3CAPACITOR 90F -20% +80% 1.4V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 90 F | -20%, +80% | 1.4 V | 15mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.394" (10.00mm) | 1.378" L x 0.984" W (35.00mm x 25.00mm) | 0.197" (5.00mm) | -20°C ~ 85°C |
|
JJC0E127MELBCAP 120F 20% 2.5V T/H |
0 |
|
Datasheet |
EVerCAP® JC | Bulk | Last Time Buy | 120 F | ±20% | 2.5 V | 50mOhm @ 1kHz | 2000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | -25°C ~ 60°C |
|
JJC0E127MELCCAP 120F 20% 2.5V T/H |
0 |
|
Datasheet |
EVerCAP® JC | Bulk | Last Time Buy | 120 F | ±20% | 2.5 V | 50mOhm @ 1kHz | 2000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | -25°C ~ 60°C |
|
JUMT1476MHDCAP 47F 20% 2.7V T/H |
0 |
|
Datasheet |
EVerCAP® JUM | Bulk | Last Time Buy | 47 F | ±20% | 2.7 V | 100mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | -25°C ~ 70°C |
|
SCCV60E107SRBQ100 F, 3.0VDC & 18M ESRDC |
0 |
|
Datasheet |
SCC | Bulk | Active | 100 F | -10%, +30% | 3 V | 15mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.315" (8.00mm) | 0.709" Dia (18.00mm) | 2.441" (62.00mm) | -40°C ~ 65°C |
|
B1860-2R5107-RCAP 100F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
B | Bulk | Obsolete | 100 F | -20%, +80% | 2.5 V | 20mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.728" Dia (18.50mm) | 2.382" (60.50mm) | -25°C ~ 70°C |
|
107DCN2R7QCAP 100F -10%, +30% 2.7V T/H |
0 |
|
Datasheet |
DCN | Bulk | Active | 100 F | -10%, +30% | 2.7 V | 18mOhm | 1000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | -40°C ~ 60°C |
|
|
SCCY69B407SWBLESUPERCAP CYLINDRICAL |
0 |
|
- |
SCC LE | Bulk | Active | 400 F | -10%, +30% | 2.7 V | - | 2000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 1.378" Dia x 2.717" L (35.00mm x 69.00mm) | - | -40°C ~ 65°C |
|
|
SCCX66B307S3PBLESUPERCAP CYLINDRICAL |
0 |
|
Datasheet |
SCC LE | Bulk | Active | 300 F | -10%, +30% | 2.7 V | 1.6mOhm @ 1kHz | 2000 Hrs @ 65°C | Quick Connect, Disconnect | Chassis Mount | Radial, Can - 3 Lead | 0.810" (20.57mm) | 1.181" Dia (30.00mm) | 2.677" (68.00mm) | -40°C ~ 65°C |
|
|
SCCX66B307S2PBLESUPERCAP CYLINDRICAL |
0 |
|
- |
SCC LE | Bulk | Active | 300 F | -10%, +30% | 2.7 V | - | 2000 Hrs @ 65°C | Quick Connect, Disconnect | Chassis Mount | Radial, Can | - | 1.181" Dia (30.00mm) | 2.677" (68.00mm) | -40°C ~ 65°C |
|
B1835-2R5336CAP 33F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
B | Bulk | Obsolete | 33 F | -20%, +80% | 2.5 V | 30mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.728" Dia (18.50mm) | 1.496" (38.00mm) | -25°C ~ 70°C |
|
EDLC371420-501-2F-50CAP 500MF 4.2V SMALL SIZE |
0 |
|
Datasheet |
EDLC371420 | Tray | Obsolete | 500 mF | - | 4.2 V | - | - | - | Surface Mount | 3-SMD, Gull Wing | 0.126" (3.20mm) | 0.787" L x 0.551" W (20.00mm x 14.00mm) | 0.146" (3.70mm) | -40°C ~ 70°C |
|
EDLC381420-501-2F-70CAP 500MF 3.2V SMALL SIZE |
0 |
|
Datasheet |
EDLC381420 | Tray | Obsolete | 500 mF | - | 3.2 V | - | - | - | Surface Mount | 3-SMD, Gull Wing | 0.126" (3.20mm) | 0.787" L x 0.551" W (20.00mm x 14.00mm) | 0.150" (3.80mm) | -30°C ~ 85°C |
|
|
SDN2R7S6073572SDN 600F 2.7V 35*72 -40~+70 1000 |
5 |
|
Datasheet |
SDN | Cut Tape (CT) | Active | 600 F | -10%, +30% | 2.7 V | - | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | -40°C ~ 70°C |
|
MAL219691264E3CAP 15F -20% +80% 5.6V SNAP |
5 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 15 F | -20%, +80% | 5.6 V | 2.4Ohm @ 1kHz | 1000 Hrs @ 85°C | SMD (SMT) Tabs | User Defined | Coin | - | 1.890" L x 0.571" W (48.00mm x 14.50mm) | 0.138" (3.50mm) | -20°C ~ 85°C |
|

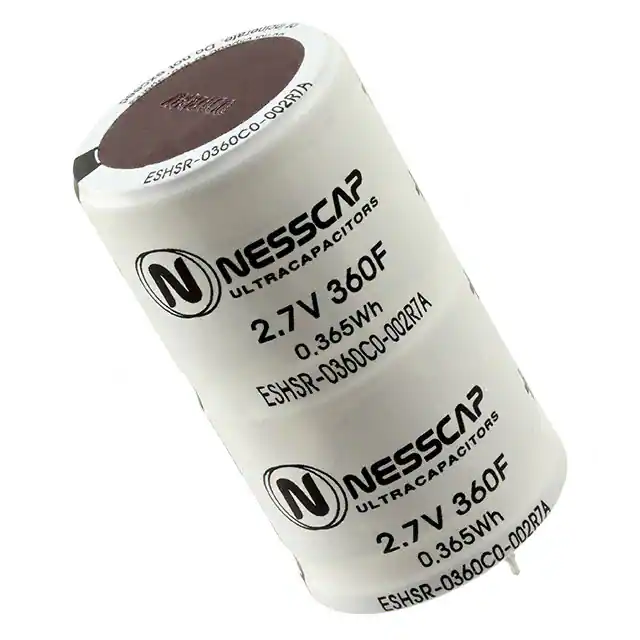

ESHSR-0360C0-002R7ACAP 360F 0% +20% 2.7V T/H |
0 |
|
Datasheet |
ESHSR | Bulk | Obsolete | 360 F | 0%, +20% | 2.7 V | 3.2mOhm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.886" (22.50mm) | 1.406" Dia (35.70mm) | 2.476" (62.90mm) | -40°C ~ 65°C |
|
|
JJC0E207MELCCAP 200F 20% 2.5V T/H |
0 |
|
Datasheet |
EVerCAP® JC | Bulk | Last Time Buy | 200 F | ±20% | 2.5 V | 30mOhm @ 1kHz | 2000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | -25°C ~ 60°C |
