Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WEC6R0505QG-I5F 6.0V 10.5*21.32 EDLC |
0 |
|
Datasheet |
- | Active | 5 F | -10%, +30% | 6 V | 65mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial | - | 0.827" L x 0.413" W (21.00mm x 10.50mm) | 1.319" (33.50mm) | -40°C ~ 65°C | |
|
MAL219612104E3CAP 100MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
196 DLC | Bulk | Obsolete | 100 mF | -20%, +80% | 5.5 V | 75Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.295" (7.50mm) | -25°C ~ 70°C |
|
PSHLR-0120C0-002R3CAP 120F -10% +20% 2.3V T/H |
0 |
|
Datasheet |
PSHLR | Bulk | Obsolete | 120 F | -10%, +20% | 2.3 V | 18mOhm @ 1kHz | 87600 Hrs @ 25°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | -25°C ~ 60°C |
|
PB-5R0V105CAP 1F -20% +80% 5V T/H |
0 |
|
Datasheet |
PB | Bulk | Obsolete | 1 F | -20%, +80% | 5 V | 500mOhm @ 100Hz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.465" (11.80mm) | 0.681" L x 0.354" W (17.30mm x 9.00mm) | 0.866" (22.00mm) | -25°C ~ 70°C |
|
B1030-2R5685CAP 6.8F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
B | Bulk | Obsolete | 6.8 F | -20%, +80% | 2.5 V | 100mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.413" Dia (10.50mm) | 1.240" (31.50mm) | -25°C ~ 70°C |
|
|
B1030-2R5685-RCAP 6.8F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
B | Bulk | Obsolete | 6.8 F | -20%, +80% | 2.5 V | 100mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.413" Dia (10.50mm) | 1.240" (31.50mm) | -25°C ~ 70°C |
|
WEC3R0506QG50F 3.0V 18*40 EDLC |
1 |
|
Datasheet |
- | Bag | Active | 50 F | -10%, +30% | 3 V | 13mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | -40°C ~ 65°C |
|
|
AHCR-S04R0SA307QCAP LITH HYBRID 300F 4V T/H |
0 |
|
Datasheet |
AHCR-S04R0S | Tray | Active | 300 F | -10%, +30% | 4 V | 90mOhm | - | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | -25°C ~ 65°C |
|
|
135968BCAP0325 P270 S17 |
0 |
|
- |
- | Case | Active | 345 F | - | 2.7 V | 1.9mOhm | 3000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - 4 Lead | - | 1.299" Dia (33.00mm) | 2.500" (63.50mm) | -40°C ~ 65°C |
|
MAL222050009E3CAP ALUM 55F 2.7V 1000H |
0 |
|
Datasheet |
ENYCAP™ 220 EDLC, Automotive, AEC-Q200 | Box | Active | 55 F | -20%, +50% | 2.7 V | 18mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | -40°C ~ 85°C |
|
|
MAL219612224E3CAP 220MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
196 DLC | Bulk | Obsolete | 220 mF | -20%, +80% | 5.5 V | 75Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.295" (7.50mm) | -25°C ~ 70°C |
|
A1030-2R5155CAP 1.5F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
A | Bulk | Obsolete | 1.5 F | -20%, +80% | 2.5 V | 60mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.413" Dia (10.50mm) | 1.240" (31.50mm) | -25°C ~ 70°C |
|
|
134380BCAP0450 P270 S18 |
0 |
|
Datasheet |
- | Case | Active | 480 F | - | 2.7 V | 3.2mOhm | 3000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In - 4 Lead | 0.866" (22.00mm) | 1.378" Dia (35.00mm) | 2.520" (64.00mm) | -40°C ~ 65°C |
|
|
SCMU33F156MRBB0CYLINDRICAL SUPERCAP MODUL |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAL219612474E3CAP 470MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
196 DLC | Bulk | Obsolete | 470 mF | -20%, +80% | 5.5 V | 30Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.827" Dia (21.00mm) | 0.315" (8.00mm) | -25°C ~ 70°C |
|

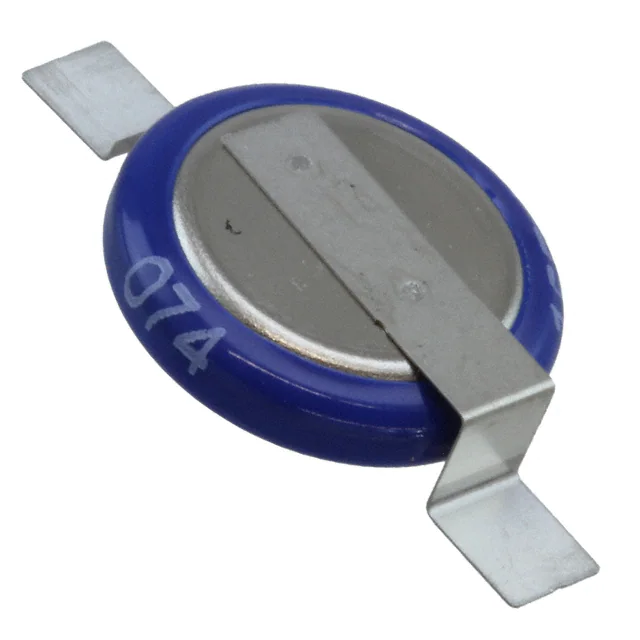

MAL219691231E3CAP 15F -20% +80% 1.4V SMD |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 15 F | -20%, +80% | 1.4 V | 600mOhm @ 1kHz | 1000 Hrs @ 85°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Opposite Sides | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.138" (3.50mm) | -20°C ~ 85°C |
|
|
CXHP2R7826R-TW2.7V 82F 18X40 EDLC |
0 |
|
Datasheet |
CXHP-2.7V | Active | 82 F | -20%, +80% | 2.7 V | 15mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | -40°C ~ 70°C | |
|
|
AHCR-S04R0SA387QCAP LITH HYBRID 380F 4V T/H |
0 |
|
Datasheet |
AHCR-S04R0S | Tray | Active | 380 F | -10%, +30% | 4 V | 80mOhm | - | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | -25°C ~ 65°C |
|
|
CHZ-2R5107R-TW2.5V 100F 18*60 EDLC |
0 |
|
Datasheet |
CHZ | Active | 100 F | -10%, +30% | 2.5 V | 13mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.421" (61.50mm) | -40°C ~ 85°C | |
|
|
MAL219612334E3CAP 330MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
196 DLC | Bulk | Obsolete | 330 mF | -20%, +80% | 5.5 V | 75Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.295" (7.50mm) | -25°C ~ 70°C |
Electric Double Layer Capacitors (EDLC), Supercapacitors Electronic Components
Explore Electric Double Layer Capacitors (EDLC), Supercapacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
