Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1840-2R5506CAP 50F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
B | Bulk | Obsolete | 50 F | -20%, +80% | 2.5 V | 25mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.728" Dia (18.50mm) | 1.654" (42.00mm) | -25°C ~ 70°C |
|

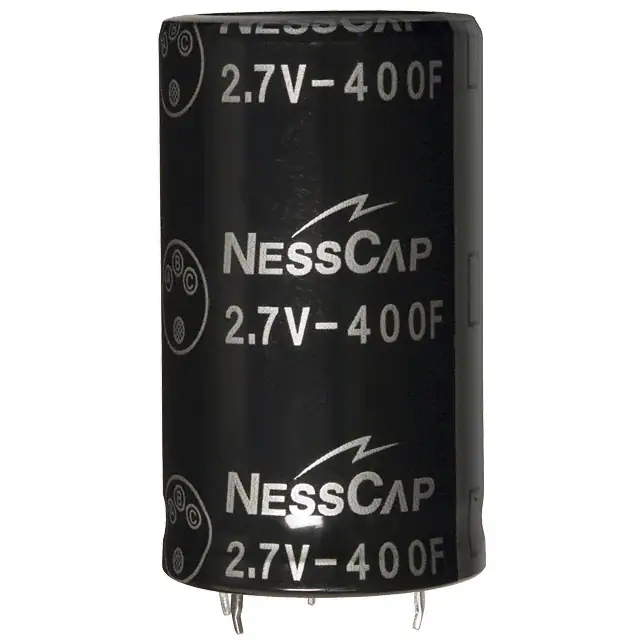

ESHSR-0400C0-002R7CAP 400F 10% 2.7V T/H |
0 |
|
Datasheet |
ESHSR | Bulk | Obsolete | 400 F | ±10% | 2.7 V | 3.2mOhm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can - Snap-In | - | 1.378" Dia (35.00mm) | 2.520" (64.00mm) | -40°C ~ 65°C |
|
CHV-2R7607R-TW2.7V 600F 35X70 T/S4 EDLC |
0 |
|
Datasheet |
CHV-2.7V | Active | 600 F | - | 2.7 V | 3.2mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | - | 1.378" Dia (35.00mm) | 2.815" (71.50mm) | -40°C ~ 65°C | |
|
SCCY83B507SLBLECAP 500F 0% +100% 2.7V CHAS MT |
0 |
|
Datasheet |
SCC LE | Bulk | Active | 500 F | 0%, +100% | 2.7 V | 1mOhm @ 1kHz | 1000 Hrs @ 60°C | Weld Stud | Chassis Mount | Radial, Can | - | 1.378" Dia (35.00mm) | 3.346" (85.00mm) | -40°C ~ 65°C |
|

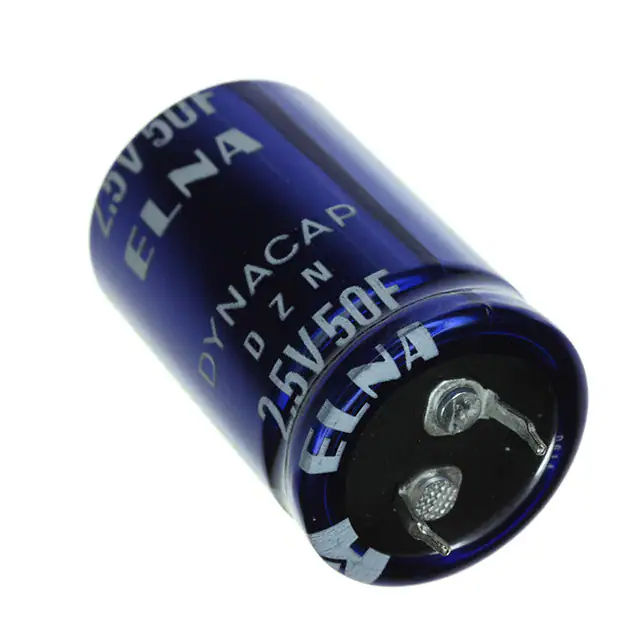

DZN-2R5D506TCAP 50F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
DZN | Bulk | Active | 50 F | -20%, +80% | 2.5 V | 30mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | -25°C ~ 70°C |
|
|
SCCY1KB707SLBLECAP 700F 0% +100% 2.7V CHAS MT |
0 |
|
Datasheet |
SCC LE | Bulk | Active | 700 F | 0%, +100% | 2.7 V | 0.9mOhm @ 1kHz | 1000 Hrs @ 60°C | Weld Stud | Chassis Mount | Radial, Can | - | 1.378" Dia (35.00mm) | 4.213" (107.00mm) | -40°C ~ 65°C |
|
|
SCCY85B607SLBLECAP 600F -10% +30% 2.7V CHAS MT |
0 |
|
Datasheet |
SCC LE | Bulk | Active | 600 F | -10%, +30% | 2.7 V | 1.6mOhm @ 1kHz | 1000 Hrs @ 60°C | Weld Stud | Chassis Mount | Radial, Can | - | 1.378" Dia (35.00mm) | 3.425" (87.00mm) | -40°C ~ 65°C |
|
ESHSR-0650C0-002R7A5CAP 650F 0% +20% 2.7V HOLDER |
0 |
|
Datasheet |
ESHSR | Bulk | Obsolete | 650 F | 0%, +20% | 2.7 V | 0.6mOhm | 1500 Hrs @ 65°C | Weld Stud | Requires Holder | Axial, Can | - | 2.370" Dia (60.20mm) | 2.264" (57.50mm) | -40°C ~ 65°C |
|
|
SCCY83B607PSBLECYLINDRICAL SUPERCAP |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCCY83B607SSBLECYLINDRICAL SUPERCAP |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCCY83B607S3PBLECYLINDRICAL SUPERCAP |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
SCAP,PBLS-5.66/16.2CAP 5.66F -10% +20% 16.2V UCAP |
0 |
|
Datasheet |
PBLS | Bulk | Active | 5.66 F | -10%, +20% | 16.2 V | 180mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 3.110" L x 0.551" W (79.00mm x 14.00mm) | 2.047" (52.00mm) | -40°C ~ 65°C |
|
|
SCAP,PBLS-6.66/16.2CAP 6.66F -10% +20% 16.2V UCAP |
0 |
|
Datasheet |
PBLS | Bulk | Active | 6.66 F | -10%, +20% | 16.2 V | 168mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 3.110" L x 0.551" W (79.00mm x 14.00mm) | 2.205" (56.00mm) | -40°C ~ 65°C |
|
|
SCAP,PBLS-3.66/16.2CAP 3.66F -10% +20% 16.2V UCAP |
0 |
|
Datasheet |
PBLS | Bulk | Active | 3.66 F | -10%, +20% | 16.2 V | 240mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 3.110" L x 0.551" W (79.00mm x 14.00mm) | 1.614" (41.00mm) | -40°C ~ 65°C |
|
|
SCAP,PBLS-4.0/27CAP 4F -10% +20% 27V UCAP PACK |
0 |
|
Datasheet |
PBLS | Bulk | Active | 4 F | -10%, +20% | 27 V | 240mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 2.598" L x 1.083" W (66.00mm x 27.50mm) | 2.205" (56.00mm) | -40°C ~ 65°C |
|
|
SCPC34B206SNACAP 20F -10%, +30% 2.5V SMD |
0 |
|
Datasheet |
PrizmaCap™ SCP | Tray | Obsolete | 20 F | -10%, +30% | 2.5 V | 40mOhm @ 1kHz | 2000 Hrs @ 65°C | SMD (SMT) Tabs | Surface Mount | Nonstandard SMD | - | 1.969" L x 1.811" W (50.00mm x 46.00mm) | 0.134" (3.40mm) | -40°C ~ 65°C |
|
|
SCAP,PBLS-2.2/27CAP 2.2F -10% +20% 27V UCAP PACK |
0 |
|
Datasheet |
PBLS | Bulk | Active | 2.2 F | -10%, +20% | 27 V | 360mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 2.598" L x 1.083" W (66.00mm x 27.50mm) | 1.614" (41.00mm) | -40°C ~ 65°C |
|
TPLH-2R7/1500SL60X85CAP 1500F 2.7V CHASSIS MOUNT |
0 |
|
- |
TPLH-2.7V Threaded | Bulk | Active | 1500 F | - | 2.7 V | 0.27mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis, Stud Mount | Axial, Can - Screw Terminals | - | 2.362" Dia (60.00mm) | 3.366" (85.50mm) | -40°C ~ 65°C |
|
|
SCAP,PBLS-2.83/32.4CAP 2.83F -10% +20% 32.4V UCAP |
0 |
|
Datasheet |
PBLS | Bulk | Active | 2.83 F | -10%, +20% | 32.4 V | 300mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 3.110" L x 1.083" W (79.00mm x 27.50mm) | 2.047" (52.00mm) | -40°C ~ 65°C |
|
|
SCAP,PBLS-3.33/32.4CAP 3.33F -10% +20% 32.4V UCAP |
0 |
|
Datasheet |
PBLS | Bulk | Active | 3.33 F | -10%, +20% | 32.4 V | 276mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 3.110" L x 1.083" W (79.00mm x 27.50mm) | 2.205" (56.00mm) | -40°C ~ 65°C |
