Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELF-18D434FCMC 2.7MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.7 mH @ 1 kHz | 2A | 111mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D420FCMC 1.2MH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.2 mH @ 1 kHz | 3A | 43mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|

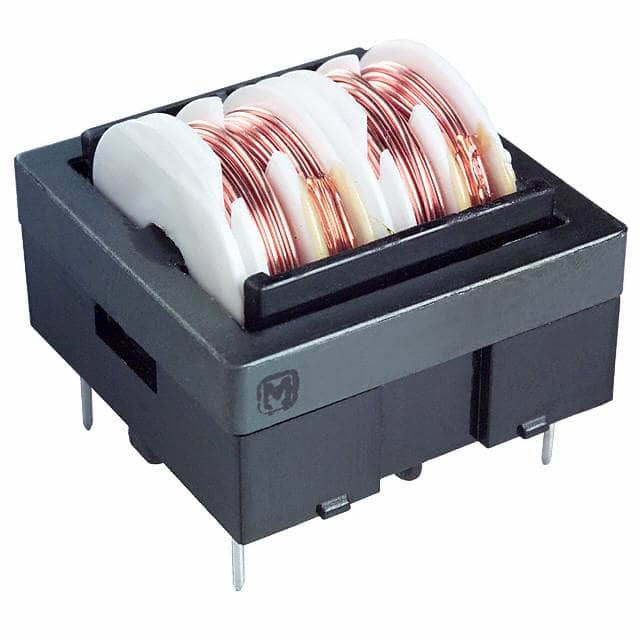

ELF-18D620CMC 100MH 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 100 mH @ 1 kHz | 400mA | 2.448Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D615CMC 39MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 39 mH @ 1 kHz | 700mA | 1.075Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D618CMC 27MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 27 mH @ 1 kHz | 800mA | 708mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D606CMC 18MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 1A | 462mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D609CMC 12MH 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 1 kHz | 1.3A | 309mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D604CMC 4.7MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.7 mH @ 1 kHz | 2A | 125mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D614CMC 1.8MH 2.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.8 mH @ 1 kHz | 2.8A | 62mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D606FCMC 18MH 1.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 1.2A | 331mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D609FCMC 12MH 1.6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 1 kHz | 1.6A | 226mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D601FCMC 10MH 1.6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1.6A | 214mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D603FCMC 5.6MH 2.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.6 mH @ 1 kHz | 2.2A | 111mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D604FCMC 4.7MH 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.7 mH @ 1 kHz | 2.5A | 87mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
CMF-0220CMC 22MH 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 1 kHz | 300mA | 3.3Ohm | - | 250V | - | - | - | - | - | - |
|
|
CMF-0330CMC 33MH 200MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 33 mH @ 1 kHz | 200mA | 5.4Ohm | - | 250V | - | - | - | - | - | - |
|
|
CMT-02105CMC 5MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 1A | 400mOhm | - | 250V | - | - | - | - | - | - |
|
|
CMT-02107CMC 7MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 7 mH @ 1 kHz | 1A | 500mOhm | - | 250V | - | - | - | - | - | - |
|
|
CMT-02203CMC 3MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 3 mH @ 1 kHz | 2A | 200mOhm | - | 250V | - | - | - | - | - | - |
|
|
CMT-02302CMC 2MH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 3A | 100mOhm | - | 250V | - | - | - | - | - | - |
