Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM7560R-475CMC 4.7MH 880MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.7 mH @ 1 kHz | 880mA | 450mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-563CMC 56UH 5.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 56 µH @ 1 kHz | 5.5A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-564CMC 560UH 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 560 µH @ 1 kHz | 3.5A | 35mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-565CMC 5.6MH 880MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.6 mH @ 1 kHz | 880mA | 500mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-683CMC 68UH 5.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 µH @ 1 kHz | 5.5A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-684CMC 680UH 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 680 µH @ 1 kHz | 3.5A | 40mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-685CMC 6.8MH 880MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.8 mH @ 1 kHz | 880mA | 600mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-823CMC 82UH 5.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 82 µH @ 1 kHz | 5.5A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-824CMC 820UH 2.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 820 µH @ 1 kHz | 2.8A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-825CMC 8.2MH 880MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.2 mH @ 1 kHz | 880mA | 750mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

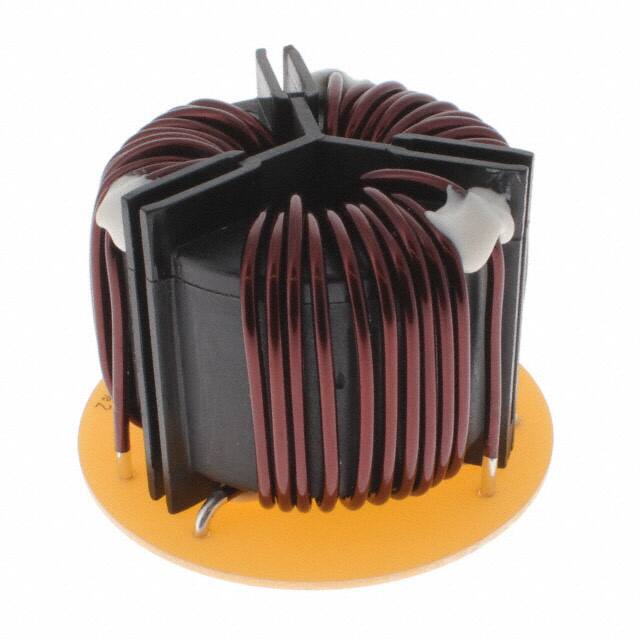

SCR47B-200-S2R0A025JH-PCMC 2.5MH 20A 3LN TH |
0 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 2.5 mH @ 10 kHz | 20A | 7.8mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
|
CMF4-5004HCHRZ COMMON MODE CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 2A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
T60405S4200X2244200X224 |
0 |
|
- |
Horizontal, 8 PC Pin | - | 3 | - | 1.4 mH @ 10 kHz | 40A | - | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
AMFW24-1.25NZCMC 13LN TH INDUSTRIAL |
5 |
|
Datasheet |
- | Power Line | 2 | - | - | - | - | 10V | - | -40°C ~ 85°C | - | - | Industrial | - | - |
|
|
CMF4-7504HCHRZ COMMON MODE CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 10 kHz | 1.4A | 300mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

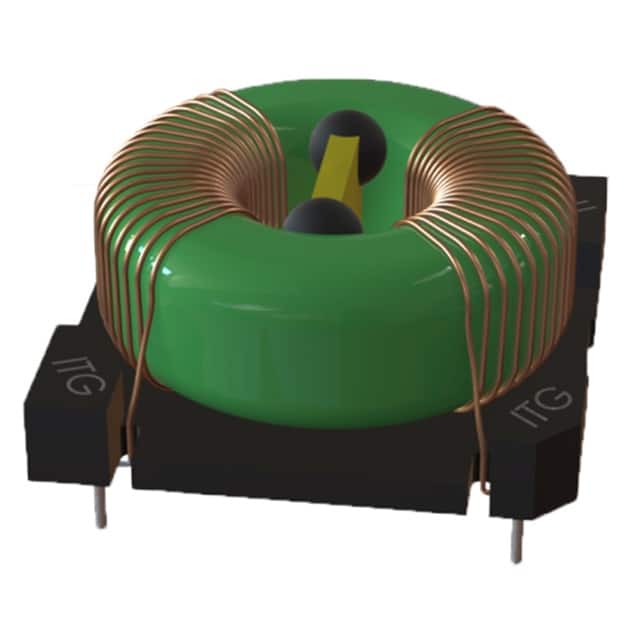

C301306-332NHF3.3mH, 30%, 11mOhm, 13.5A Rated |
4 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 13.5A | 11mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301306-382NHF3.8mH, 30%, 13.5mOhm, 12.5A Rate |
4 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 10 kHz | 12.5A | 13.5mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMF4-1005HCHRZ COMMON MODE CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.2A | 390mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF4-1704VMLFVERTICAL MOUNT COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.7 mH @ 10 kHz | 3.1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM1011-104CMC 100UH 12A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 100 µH @ 1 kHz | 12A | 4mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
