Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CMF65-7504SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | 7.5 mH @ 10 kHz | 750mA | 360mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF65-1004SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | 1 mH @ 10 kHz | 2.4A | 47mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF65-1003SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 100 µH @ 10 kHz | 8.5A | 5mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

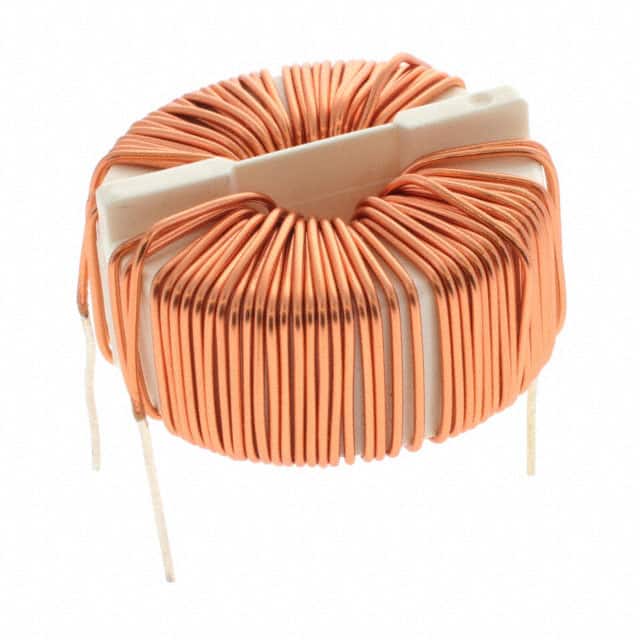

SC-05-D150HCMC 1.5MH 5A 2LN TH |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 5A | 90mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
DKIH-3237-12D7DKIH-1 COMP.CHOKE 2PH 12A 0.7MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 12A | 7mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | cURus, ENEC, UL, VDE | - | - | - |
|
PL8802NLCMC 2.5A 2LN SMD |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 2.5A | 80mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DKIH-3352-12D8DKIH-3 COMP.CHOKE 3PH 12A 0.75MH |
0 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | - | 12A | 4.5mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | CE, IEC, UKCA | - | - | - |
|
|
PL8223NLTPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.03 mH @ 10 kHz | 9A | 9.75mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
T60405S4550X2314550X231 |
0 |
|
- |
Horizontal, 6 PC Pin | - | 3 | 1.1 kOhms @ 100 kHz | 1.1 mH @ 100 kHz | 16A | 4.4mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
PL8802CMC 2.5A 2LN SMD |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 2.5A | 80mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8800CMC 3.6A 2LN SMD |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 3.6A | 50mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8800NLCMC 3.6A 2LN SMD |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 3.6A | 50mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DKIH-3352-25D3DKIH-3 COMP.CHOKE 3PH 25A 024MH |
0 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | - | 25A | 1.2mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | CE, IEC, UKCA | - | - | - |
|
|
T60405S6122X3296122X329 |
0 |
|
- |
Vertical, 6 PC Pin | Power Line | 3 | 850 Ohms @ 100 kHz | 830 nH @ 100 kHz | 29A | 2mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405S6123X1066123X106 |
0 |
|
- |
Horizontal, 6 PC Pin | - | 3 | 3 kOhms @ 100 kHz | 2.75 mH @ 100 kHz | 6A | 30mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
CM6350-333CMC 33UH 5.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 33 µH @ 10 kHz | 5.5A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350-104CMC 100UH 3.3A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 100 µH @ 10 kHz | 3.3A | 14mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350-154CMC 150UH 2.7A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 150 µH @ 10 kHz | 2.7A | 20mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350-155CMC 1.5MH 750MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.5 mH @ 10 kHz | 750mA | 190mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6350-334CMC 330UH 1.8A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 330 µH @ 10 kHz | 1.8A | 40mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
