Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

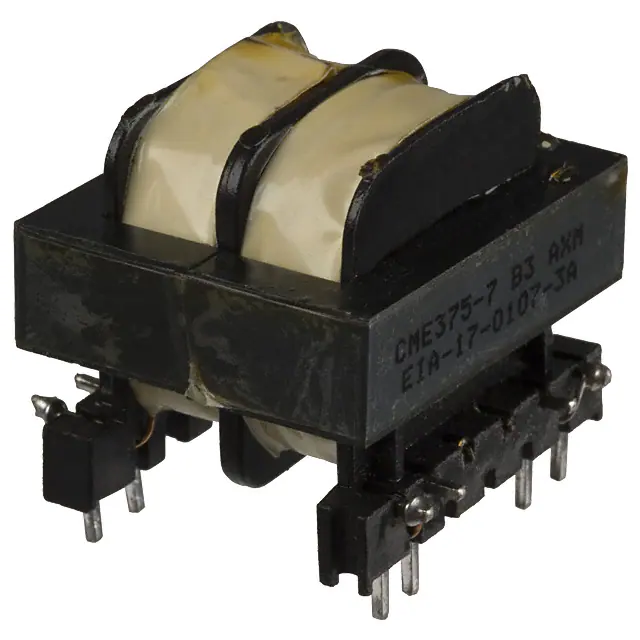

CME375-7CMC 70.3MH 1.38A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 70.3 mH @ 10 kHz | 1.38A | 785mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|

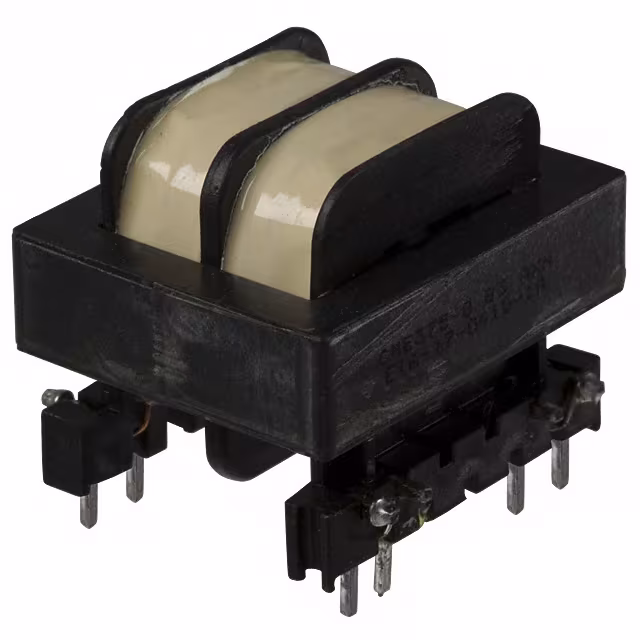

CME375-8CMC 111.6MH 1.1A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 111.6 mH @ 10 kHz | 1.1A | 1.24Ohm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CME375-1-BCMC 4.4MH 5.5A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 10 kHz | 5.5A | 49mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME375-2-BCMC 6.9MH 4.4A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.9 mH @ 10 kHz | 4.4A | 77mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME375-3-BCMC 10.9MH 3.5A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10.9 mH @ 10 kHz | 3.5A | 122mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME375-4-BCMC 17.8MH 2.7A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 17.8 mH @ 10 kHz | 2.7A | 196mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME375-5-BCMC 17.8MH 2.7A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 17.8 mH @ 10 kHz | 2.7A | 196mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME375-6-BCMC 43.6MH 1.75A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 43.6 mH @ 10 kHz | 1.75A | 489mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME375-7-BCMC 70.3MH 1.38A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 70.3 mH @ 10 kHz | 1.38A | 785mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME375-8-BCMC 111.6MH 1.1A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 111.6 mH @ 10 kHz | 1.1A | 1.24Ohm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME375-9-BCMC 176.1MH 870MA 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 176.1 mH @ 10 kHz | 870mA | 1.98Ohm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
T60405R6123X5326123X532 |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | 750 Ohms @ 100 kHz | 840 µH @ 100 kHz | 32A | 2.3mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
T60405R6123X4256123X425 |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | 620 Ohms @ 100 kHz | 850 µH @ 100 kHz | 25A | 3.3mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
T60405R6166X039CMC 750UH 18A 2LN 830 OHM TH |
14 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 830 Ohms @ 100 kHz | 750 µH @ 100 kHz | 18A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
750343092CMC 5.5MH 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 10 kHz | 2.5A | 40mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

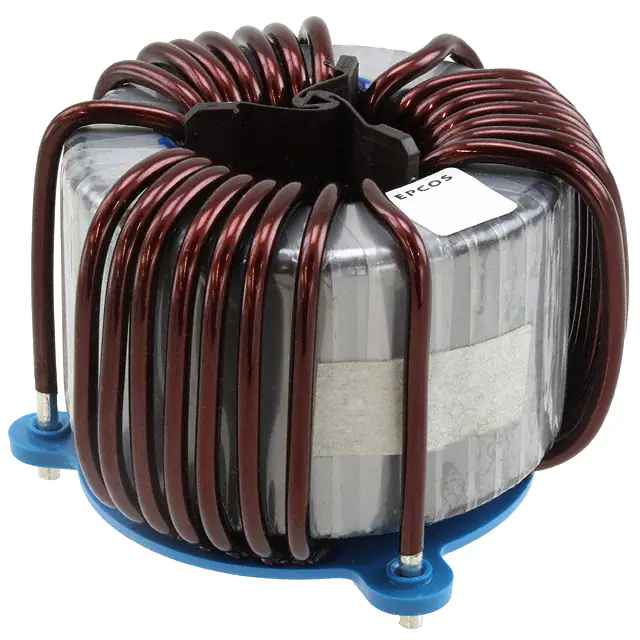

B82747S4253A040CMC 850UH 30A 3LN TH |
0 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 850 µH @ 100 kHz | 30A | 1.9mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
MGPWC-00060-PCMC 3.7MH 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 3.7 mH @ 10 kHz | - | 1.5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
T60405S6123X3216123X321 |
0 |
|
- |
Horizontal, 6 PC Pin | - | 3 | 1.2 kOhms @ 100 kHz | 1.12 mH @ 100 kHz | 20A | 3.25mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
PL8202NLCMC 9.7A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 9.7A | 14mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DFK-33-0001CMC 2A 2LN TH |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 2A | 250mOhm | - | - | -25°C ~ 100°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
