Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
T60405R6128X2266128X226 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 3 kOhms @ 100 kHz | 2.8 mH @ 100 kHz | 25A | 3.8mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
PL8201CMC 11.6A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 11.6A | 10mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8201NLCMC 11.6A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 11.6A | 10mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

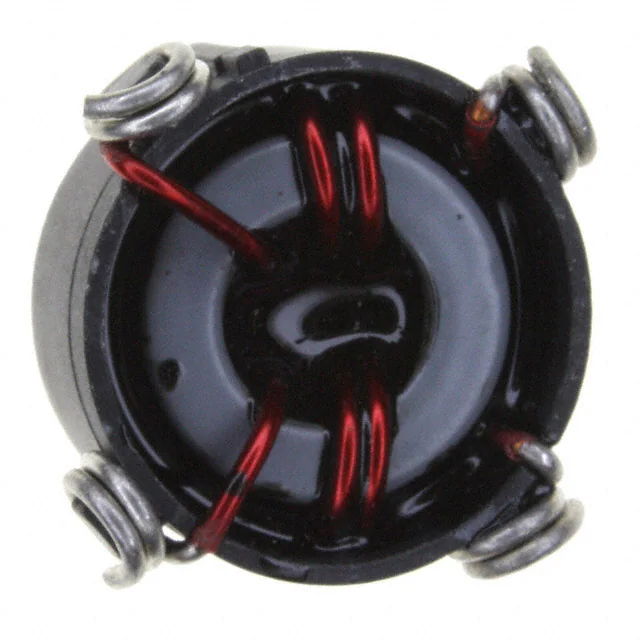

CM6296-104CMC 100UH 9.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 1 kHz | 9.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-154CMC 150UH 9.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 150 µH @ 1 kHz | 9.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-155CMC 1.5MH 2.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1.5 mH @ 1 kHz | 2.5A | 90mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-204CMC 200UH 8.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 200 µH @ 1 kHz | 8.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-253CMC 25UH 10A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 25 µH @ 1 kHz | 10A | 14mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-255CMC 2.5MH 2.2A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 2.5 mH @ 1 kHz | 2.2A | 162mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-304CMC 300UH 7.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 300 µH @ 1 kHz | 7.5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-454CMC 450UH 6.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 450 µH @ 1 kHz | 6.5A | 24mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-503CMC 50UH 10A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 50 µH @ 1 kHz | 10A | 14mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-654CMC 650UH 5.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 650 µH @ 1 kHz | 5.5A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM6296R-155CMC 1.5MH 2.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1.5 mH @ 1 kHz | 2.5A | 90mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296R-255CMC 2.5MH 2.2A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 2.5 mH @ 1 kHz | 2.2A | 162mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
C201388A-802Nanocrystal 8.0mH 110.0mOhm 1.8A |
5 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 1.8A | 110mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
T60405R6128X230CMC 1.48MH 30A 2LN 1.62K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 1.62 kOhms @ 100 kHz | 1.48 mH @ 100 kHz | 30A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
DFK-33-0002CMC 3A 2LN TH |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 3A | 150mOhm | - | - | -25°C ~ 100°C | - | - | - | - | - |
|
|
CM6149R-125CMC 1.2MH 300MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1.2 mH @ 10 kHz | 300mA | 350mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6149R-155CMC 1.5MH 240MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1.5 mH @ 10 kHz | 240mA | 500mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
