Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR-090-1R2A015JCMC 1.5MH 9A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 9A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
23Z105SMNLCMC 8LN SMD |
0 |
|
Datasheet |
16-SOIC (0.265", 6.73mm Width) | Signal Line | 8 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
UT2024-006CMC 9MH 500MA 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 500mA | 1.4Ohm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
UT2024-007CMC 4.5MH 600MA 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 10 kHz | 600mA | 750mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
UT2024-008CMC 2.5MH 700MA 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 700mA | 400mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
UT2024-009CMC 1.1MH 900MA 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 900mA | 250mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
UT2024-010CMC 0.45MH 1A 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 0.45 mH @ 10 kHz | 1A | 130mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
FL2D-30-302B3MH @ 10 KHZ 2 LINE COMMON MODE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 3A | 50mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
SN13-400CMC 92UH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 92 µH @ 100 kHz | 6A | 30mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-40-5625.6MH @ 10 KHZ 2 LINE COMMON MOD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 4A | 35mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-A0-1021MH @ 10 KHZ 2 LINE COMMON MODE |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 10mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
DSO1-175-0003CMC 1A 2LN TH |
0 |
|
Datasheet |
Radial | - | 2 | - | - | 1A | 200mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82791G12A13COMMON MODE CHOKE 0.1A |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TF3524TU-502Y3R0-01CMC 3A 3LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | - | 3A | 130mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
AWCDMC-2019V-12CMC 12mH 3.0A 2LN TH, FLAT wire |
5 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 100 kHz | 3A | 150mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
8104CMC 10MH 2.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8105CMC 7MH 2.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 7 mH @ 1 kHz | 2.8A | 120mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

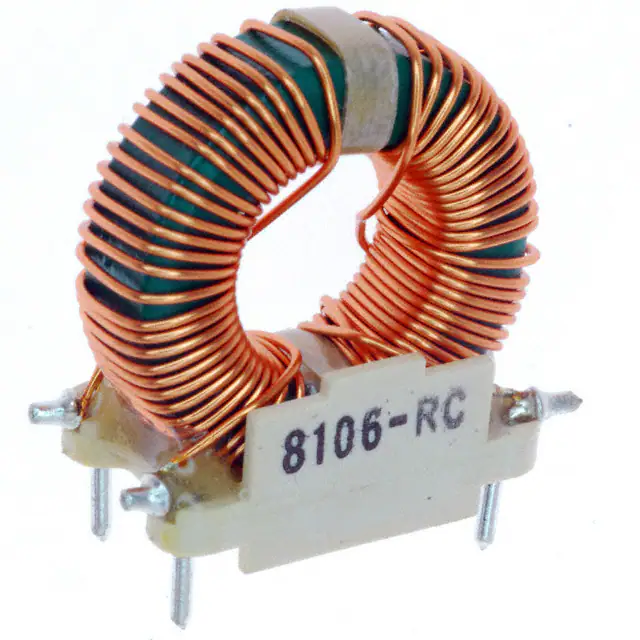

8106CMC 5MH 3.7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 3.7A | 70mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8107CMC 2MH 6.6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 6.6A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8108CMC 1MH 10A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
