Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

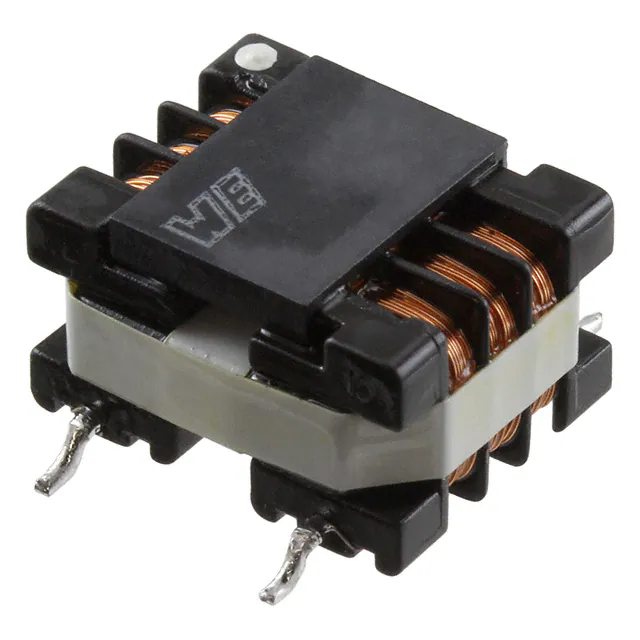

750315745CMC 140MH 90MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 Gull Wing | Power Line | 2 | - | 140 mH @ 10 kHz | 90mA | 39Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LG01-0346NURLTRCMC 35UH 8CH EXT TEMP 32P SMD T/ |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HHBC13-1R2A0045VCMC 45UH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 45 µH @ 100 kHz | 6A | 18.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
23Z105SMNLTCMC 8LN SMD |
0 |
|
Datasheet |
16-SOIC (0.265", 6.73mm Width) | Signal Line | 8 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
B2013NLTCMC 9MH 100MA 2LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 2 | - | 9 mH @ 100 kHz | 100mA | 1Ohm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
CAF-7.6-0.22CMC 220UH 7.6A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 220 µH @ 10 kHz | 7.6A | 5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-05-700JHCMC 7MH 5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CM3822R151R-10CMC 5A 6LN 150 OHM SMD |
0 |
|
Datasheet |
Vertical, 12 Flat Lead | Power Line | 6 | 150 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

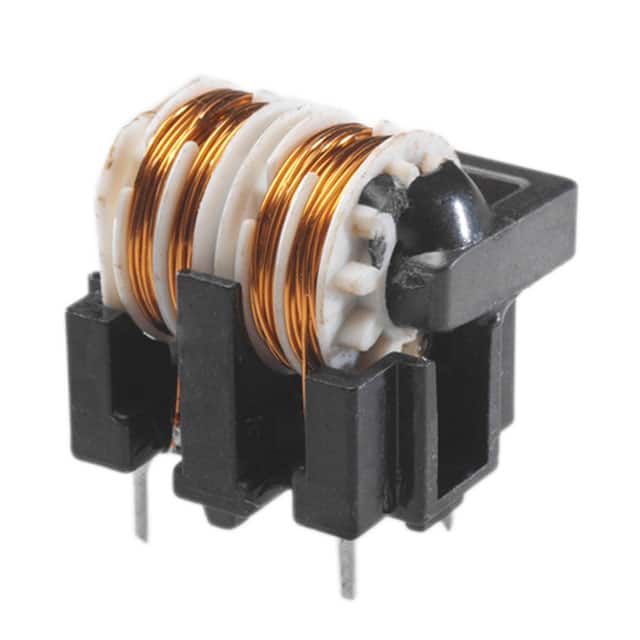

UT2020-001CMC 9MH 500MA 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 500mA | 1.4Ohm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
UT2020-002CMC 4.5MH 600MA 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 10 kHz | 600mA | 750mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
UT2020-003CMC 2.5MH 700MA 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 700mA | 400mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
UT2020-004CMC 1.1MH 900MA 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 900mA | 250mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
UT2020-005CMC 0.45MH 1A 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 0.45 mH @ 10 kHz | 1A | 130mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|

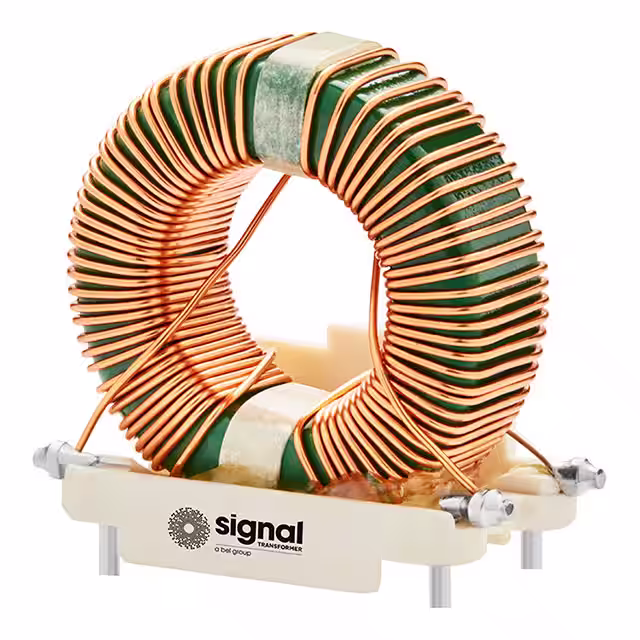

HCTC-7-2.8CMC 7MH 2.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 2.8A | 120mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
TF4131HU-102Y15R0-01CMC 15A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 15A | 15mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
ALFT-04-1CMC 240UH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 240 µH @ 1 kHz | 6A | 5mOhm | - | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-04-2CMC 350UH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 350 µH @ 1 kHz | 6A | 6mOhm | - | - | -25°C ~ 85°C | - | - | - | - | - |
|

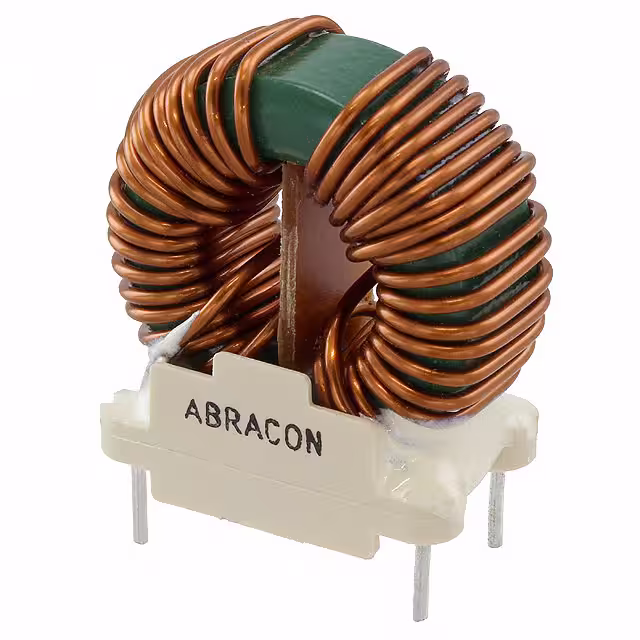

ALFT-04-7CMC 4.5MH 3.7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 4.5 mH @ 1 kHz | 3.7A | 20mOhm | - | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-04-8CMC 7MH 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 7 mH @ 1 kHz | 3.5A | 30mOhm | - | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-04-10CMC 120UH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 120 µH @ 1 kHz | 6A | 4.5mOhm | - | - | -25°C ~ 85°C | - | - | - | - | - |
